7... HYPERNET™ ICON BASED PROGRAMMING
USING THE OMP-MODL7-2
technically curious, additional information on the theory of operation of Program
Nets is available in Appendix G.
AN EXAMPLE PROGRAM NET
A simple Program Net is shown in Figure 7... -2. In this Program Net, two
thermocouple inputs (represented by the two matching icons near the left of the
workspace) are sampled periodically (based on the Sample Rate Clock connected to
the top of each of the Thermocouple icons) and their values are stored in OMP-
MODL memory (RAM chip icons). Additionally, the difference between the two
thermocouple channels is calculated (by the Math icon) and stored in memory.

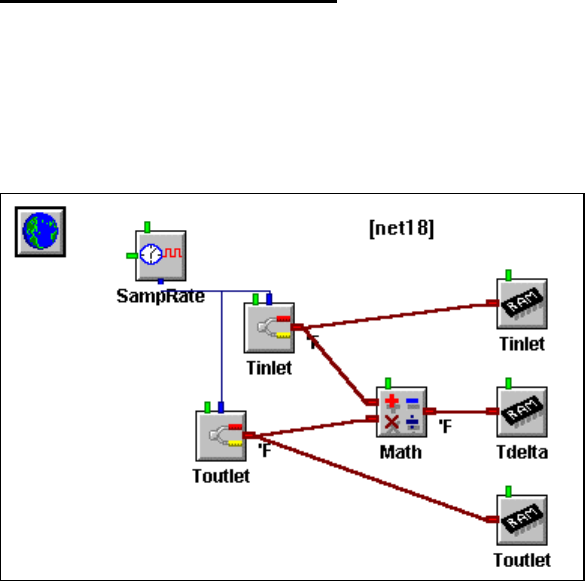

Figure 7... -2: Temperature sampling Program Net
