LIBRA-04 M MANUAL COPY ROUTER
14 / 19
MILLING PROCESS
Turn on the main power switch, put the profile onto the setsquare and clamp it with the
clamping pistons. The tracer pin must be placed into the template which is to be copied.
Copy motor is run. Set the drill bit (router bit) into profile by copy vertical movement
handle. Deep drilling is adjusted with part. Drill the channel with copy movement knob.
Slowly release the vertical copy movement handle after the process is completed. Milling
cutters go up.
VI –MAINTENANCE AND LUBRICATION

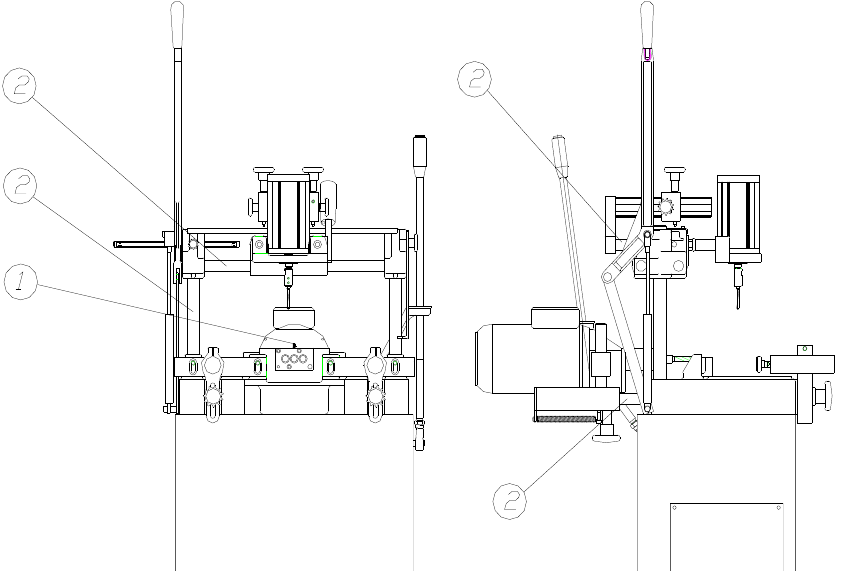

Figure 6-1 Maintenance and lubrication
o M6 Grease Cup: is lubricated with grease pump.
o Guiding shafts: are lubricated with thin oil.
• Disconnect electrical power hydraulic and air pressure before doing maintenance.
• The main power switch should be turned to the “Off” position
• Disconnect air entry of machine from the compressor air exit to prevent air
completely.
• Only recommended maintenance and lubrication products should be used.
Shavings that accumulate on machine should be cleaned daily.
