DIRECT CORD CONNECT
SYSTEM HAS BEEN
CONFIGURED TO BE USED WITH 12AWG
SJ CORD, MAXIMUM LENGTH OF 50 FEET.
INSPECT THE CORD, DO NOT USE IF
DAMAGED.

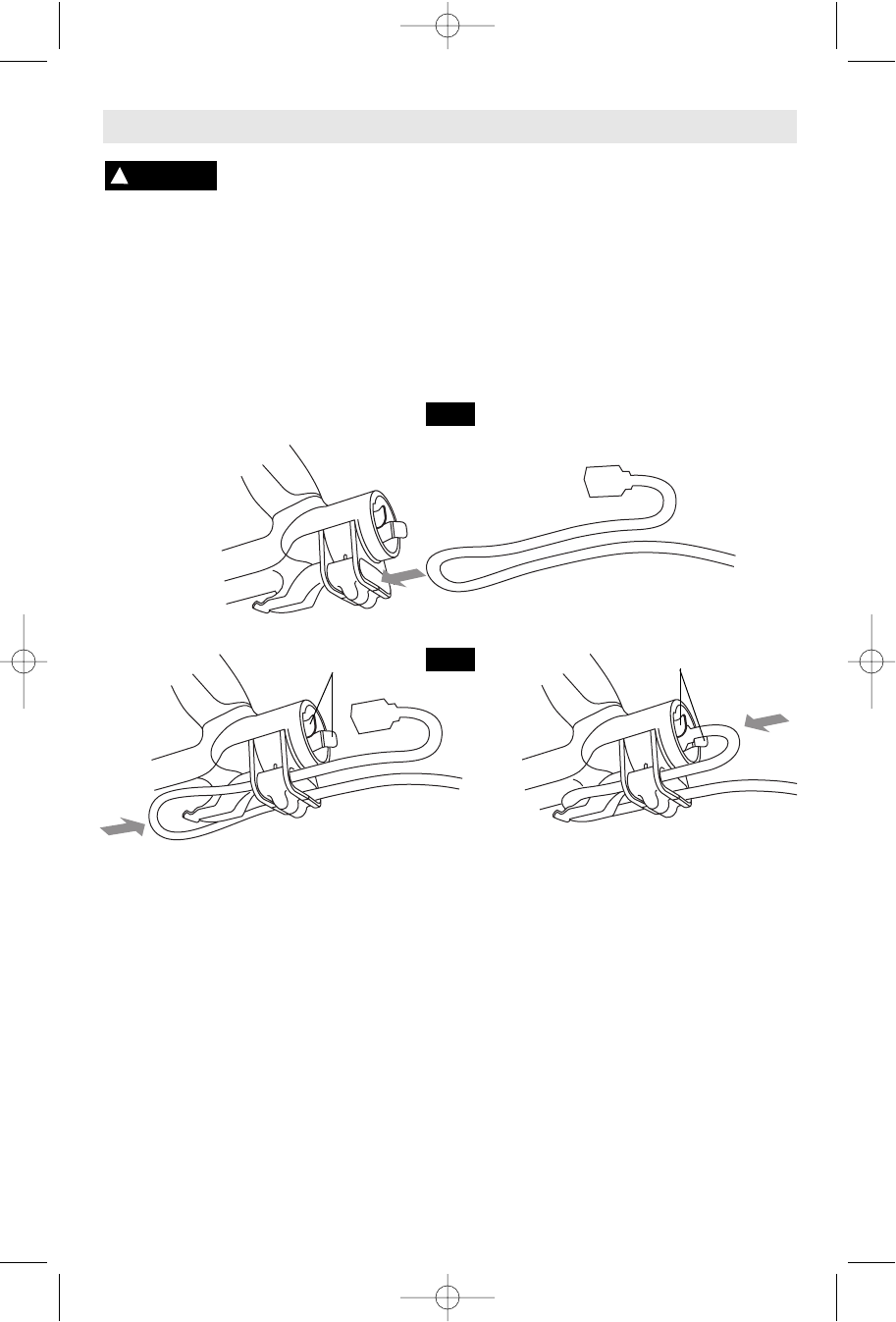

1. Loop cord as shown in figure A.
2. Insert looped end of cord through slot in
handle and loop cord into channel provided
in handle as shown figure. B).
ATTENTION: before inserting plug into
handle, always make sure you leave enough
cord at plug end to avoid tension on plug
when inserted into tool.
3. Push end of plug through spring clip and
into female outlet in handle as shown below .
4 To remove plug from tool, simply remove
from outlet and pull away from spring clip.
NOTE: If the spring clip does not securely
hold the plug it may be necessary to lightly
squeeze the clip together with a pliers.
Installing Power Cord
FIG. A
FIG. B
!
WARNING
SPRING CLIP
SPRING CLIP
