FP2051, FP2052
No. de Número del
Ref. Descripción repuesto Ctd.
Lista de Repuestos
No. de Número del
Ref. Descripción repuesto Ctd.
1 Cabezal/motor FP205110AV 1
2 Patas del chasis ■ 4
3 Patas de la cubierta del motor ▲ 4
4 Cubierta izquierda del compresor FP205111AV 1
5 Cubierta derecha del compresor FP205112AV 1
6 Panel del manómetro FP205113AV 1
7 Chasis FP205114AV 1
8 Mango FP205115AV 1
9 Distribuidor (incluye regulador) FP205116AV 1
10 Bandeja de accesorios FP205117AV 1
11 Tubo de escape ◆ 1
12 Soporte de montaje para pared ● 1
13 Tornillo 1/4x19 ■ 4
14 Tornillo M6x15 ■ 4
▼ 4
15 Tornillo M6x200 ▼ 1
16 Presostato FP205118AV 1
17 Tablero del circuito ❏ 1
18 Cordón eléctrico ∆ 1
19 Conexión de compresión ◆ 2
20 Tuerca de compresión ◆ 2
21 Manga ◆ 2
22 Arandela de 6,4 mm (1/4”)
(No se muestra) ■ 4
▼ 4
23 Interruptor de encendido/apagado FP205129AV 1
24 Válvula de drenaje D-1403 1
25 Accesorios de inflado ✤ 1
26 Adaptador ✤ 1
27 Boquilla para neumático ✤ 1
28 Tuerca de retención de la cubierta ▼ 1
29 Tornillo 3x8 ▼ 5
30 Tornillo de fijación para hormigón ● 3
31 Valvula de chequeo † 1
32 Resorte † 1
33 Manómetro de salida FP006300AV 1
34 Manómetro del tanque GA016304AV 1
35 Tornillo M3x10 ❍ 2
36 Tuerca M3x2,5 ❍ 2
37 Arandela ❍ 2
38 Ventilador ❍ 1
39 Alivio de tensión ∆ 1
40 Tornillo M4x8 ∆ 2
41 Tornillo M3x10 ❏ 2
42 Sujetador del cableado ❏ 1
43 Valvula de seguridad V-215105AV 1
44 Gancho de la correa ★ 1
45 Correa ★ 1
46 Tornillo M4x10 ★ 1
47 Fusible FP205130AV 1
48 Tornillo autorroscante ▲ 1
49 Tubo de goma ▲ 2
50 Tornillo ▲ 1
51 Tuerca ▲ 4
52 Placa fija del motor ▲ 1
53 Tuerca ▲ 1
54 Tornillo para madera ● 3
JUEGOS DE REPUESTOS
▲ Juego de montaje del motor FP205131AV
■ Juego de las patas del chasis FP205120AV
● Juego de montaje para pared FP205121AV
◆ Juego de tubos FP205122AV
▼ Juego de tornillos de la cubierta FP205123AV
❏ Juego del tablero de circuitos FP205124AV
∆ Juego del cordón de corriente FP205125AV
† Juego de la válvula de chequeo FP205126AV
❍ Juego del ventilador FP205127AV
★ Juego de la correa FP205128AV
✤ Kit de herramienta FP204008AV
Juego para calcomanía (No se muestra)
Modelo FP2051 FP205132AV
Modelo FP2052 FP205221AV
2

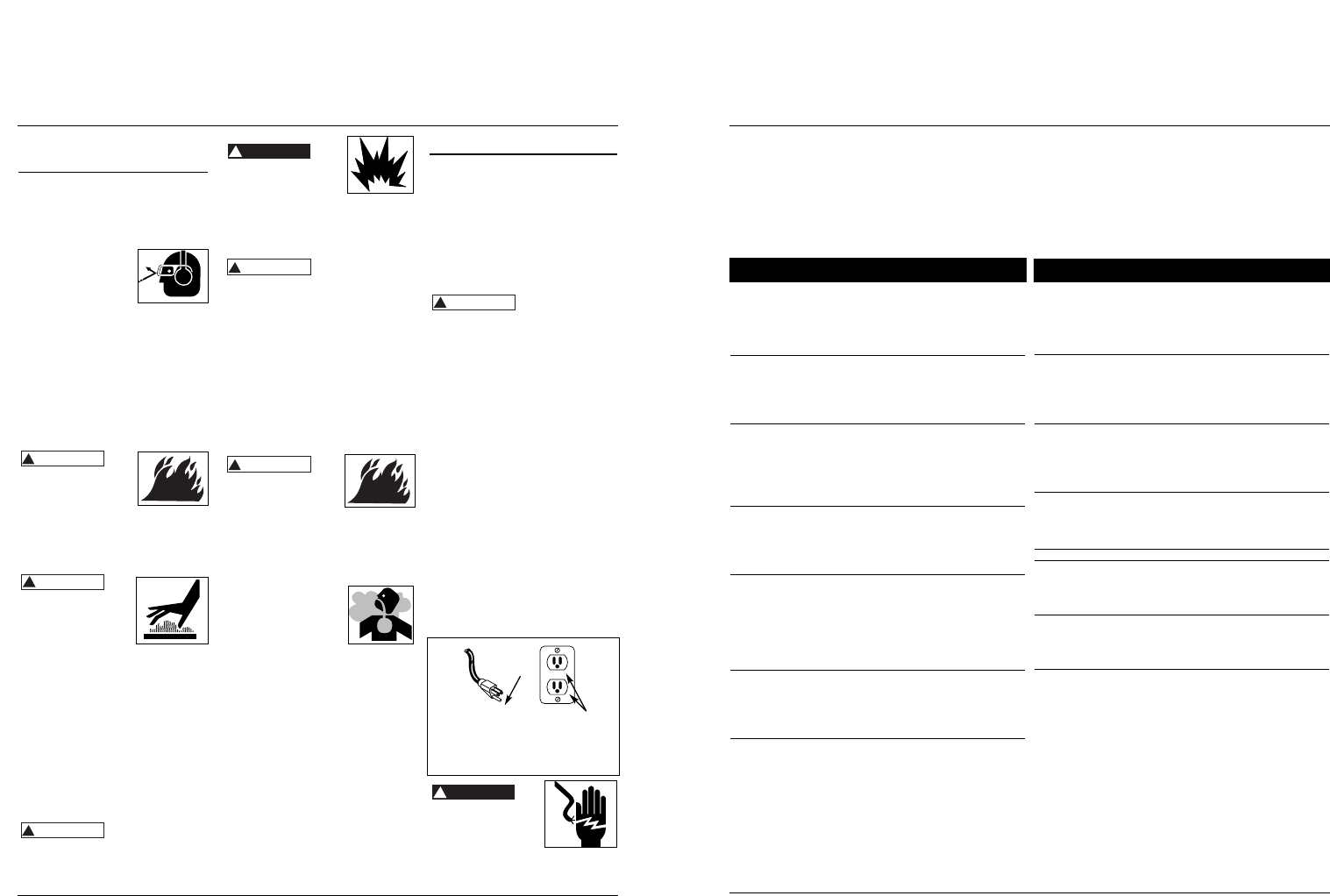

Portable Air Compressor
General Safety
Information (Continued)
3.Only persons well acquainted with
these rules of safe operation should
be allowed to use the compressor.
4.Keep visitors away and NEVER allow
children in the work area.
5.Wear safety glasses
and use hearing
protection when
operating the pump
or unit.
6.Do not stand on or use the pump or
unit as a handhold.
7.
Before each use, inspect compressed
air system and electrical components
for signs of damage, deterioration,
weakness or leakage. Repair or
replace defective items before using.
8. Check all fasteners at frequent
intervals for proper tightness.
Motors, electrical
equipment and controls
can cause electrical arcs
that will ignite a flammable gas or
vapor. Never operate or repair in or
near a flammable gas or vapor. Never
store flammable liquids or gases in the
vicinity of the compressor.
Compressor parts may
be hot even if the unit
is stopped.
9. Keep fingers away from a running
compressor; fast moving and hot
parts will cause injury and/or burns.
10.If the equipment should start to
abnormally vibrate, STOP the
engine/motor and check
immediately for the cause. Vibration
is generally a warning of trouble.
11.To reduce fire hazard, keep
engine/motor exterior free of oil,
solvent, or excessive grease.
Never remove or
attempt to adjust
safety valve. Keep safety valve free
from paint and other accumulations.
!
WARNING
!
CAUTION
!
WARNING
Never attempt to repair
or modify a tank!
Welding, drilling or any
other modification will weaken the
tank resulting in damage from rupture
or explosion. Always replace worn or
damaged tanks.
Drain liquid from
tank daily.
13.
Tanks rust from moisture build-up,
which weakens the tank.
Make sure
to drain tank daily and inspect
periodically for unsafe conditions
such as rust formation and
corrosion.
14. Fast moving air will stir up dust and
debris which may be harmful. Release
air slowly when draining moisture or
depressurizing the compressor system.
SPRAYING PRECAUTIONS
Do not spray flammable
materials in vicinity of
open flame or near
ignition sources including the
compressor unit.
15.Do not smoke when spraying paint,
insecticides, or other flammable
substances.
16.Use a face mask/
respirator when
spraying and spray in
a well ventilated area
to prevent health and
fire hazards.
17.Do not direct paint or other sprayed
material at the compressor. Locate
compressor as far away from the
spraying area as possible to
minimize overspray accumulation
on the compressor.
18.When spraying or cleaning with
solvents or toxic chemicals, follow
the instructions provided by the
chemical manufacturer.
!
WARNING
!
WARNING
!
DANGER
Installation
LOCATION
It is extremely important to use the
compressor in a clean, well ventilated
area where the surrounding air
temperature will not be more than 100°F.
A minimum clearance of 18 inches
between the compressor and a wall is
required because objects could obstruct
air flow.
Do not locate the
compressor air
inlet near steam, paint spray, sandblast
areas or any other source of
contamination. This debris will damage
the motor.
GROUNDING INSTRUCTIONS
1. This product is for use on a nominal
120 volt circuit and has a grounding
plug that looks like the plug illustrated
in Fig. 1. Make sure the product is
connected to an outlet having the
same configuration as the plug. This
product must be grounded. In the
event of an electrical short circuit,
grounding reduces risk of electrical
shock by providing an escape wire for
electric current. This product is
equipped with a cord having a
grounding wire with an appropriate
grounding plug. Plug must be plugged
into an outlet that is properly installed
and grounded in accordance with all
local codes and ordinances.
Improper use of
grounding plug can
result in a possible risk
of electrical shock!
!
DANGER
!
CAUTION
TEST
RESET
Figure 1 - Grounding Method
Grounding
Pin
Grounded Outlet
www.chpower.com
FP2051, FP2052
