SKU 90186 PAGE 11

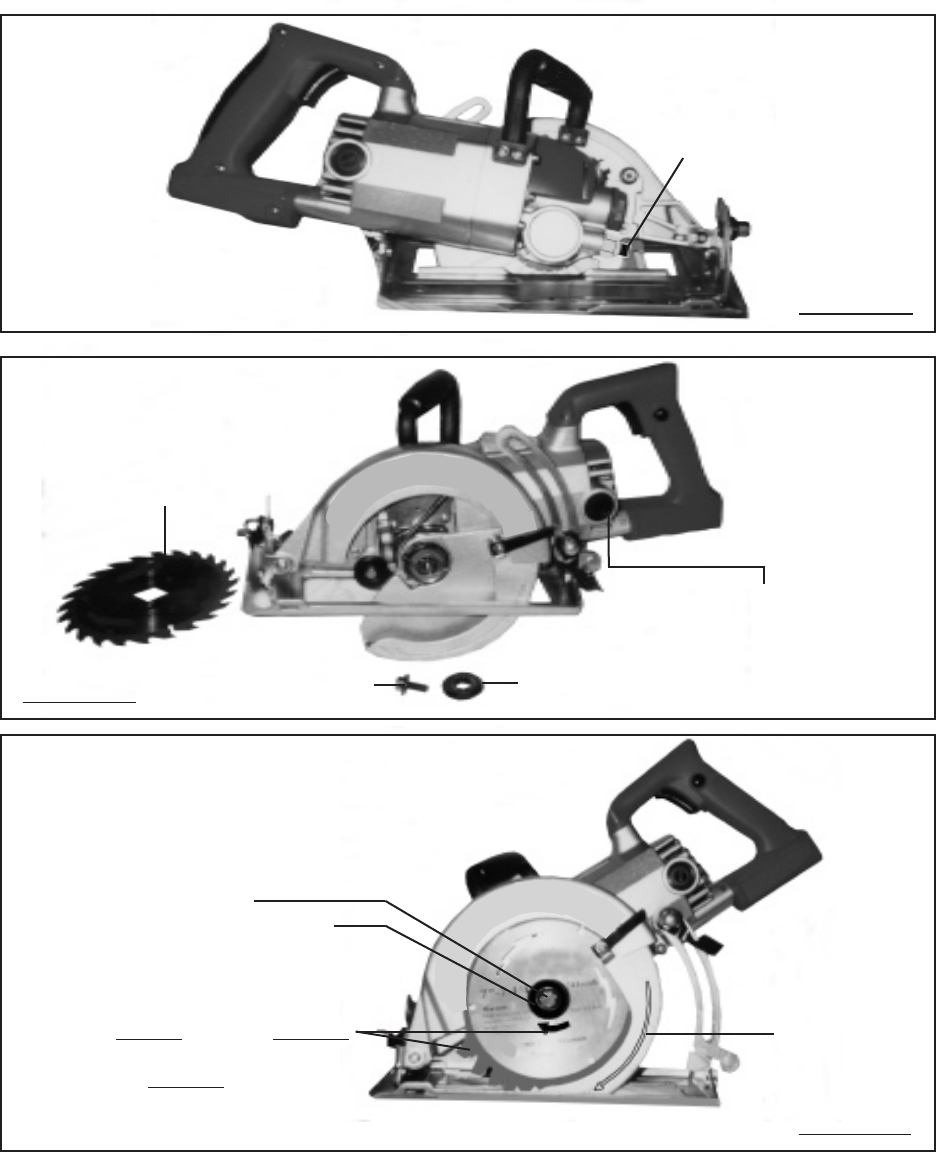

3. Once the new Saw Blade (part #3) is installed onto the Shaft (part #15) place the
Outer Blade Press (part #2) back onto the Shaft and secure the Saw Blade in
place by tightening (counterclockwise) the Bolt (part #1) into the Shaft.
(See Figure C.)
LOCK BUTTON
BOLT (#1) OUTER BLADE PRESS (#2)
BRUSH HOLDER COVER (#72)
CARBON BRUSH (#71)
7-1/4” DIA.
SAW BLADE
(#3)
INSTALL NEW SAW BLADE (#3)
WITH ITS TEETH AND ITS ARROW
POINTING IN THE SAME DIRECTION
AS THE ARROW ON THE
LOWER BLADE GUARD (#6).
LOWER
BLADE
GUARD (#6)
BOLT (#1)
OUTER BLADE PRESS (#2)
FIGURE D
FIGURE E
FIGURE F
