SKU 90186 PAGE 12
OPERATING INSTRUCTIONS
Note: Add gear oil before first use. Check gear oil level before every use.
Recommended Oil Harbor Freight Tools SKU 66582. In case of un-
availability, you can use the following: Shell Valvata J680
®
, Mobilgear
SHC680
®
, Shell Tivela Oil s680
®
.
Always make sure the Power Cord (part #65) of the Circular Saw is un-
plugged from its electrical outlet prior to assembly, adding any accessories, or
making any adjustments to the tool.

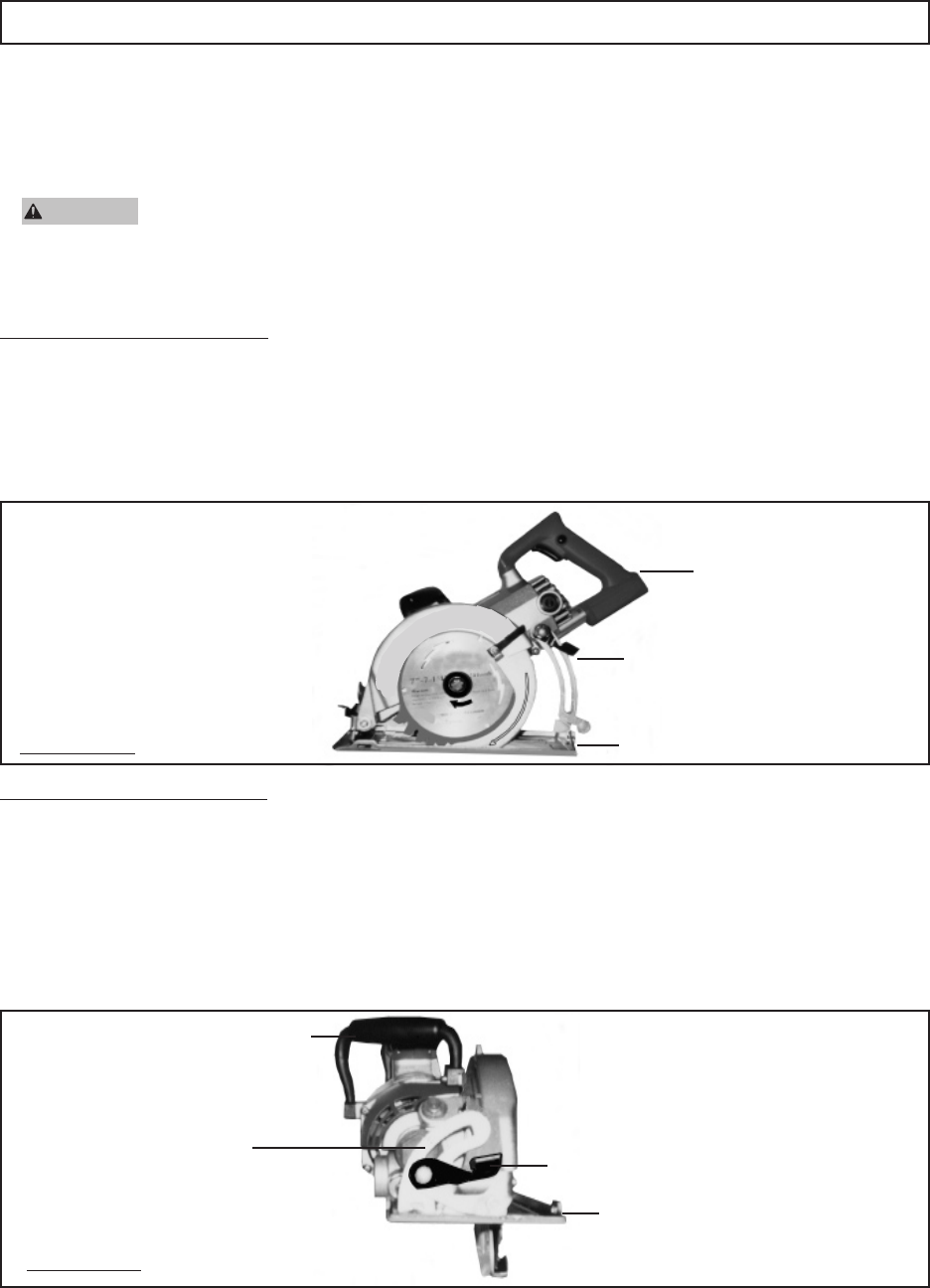

To Adjust Depth Of Cut:
To adjust the depth at which the Circular Saw will cut, loosen the Lock Spanner
(part #80) located at the rear of the Saw. Hold the Foot (part #83) down with one
hand and raise or lower the Saw by the Handle (parts #60, #68). Then, retighten
the Lock Spanner at the desired depth setting. (See Figure G.)
To Adjust Angle Of Cut:
To adjust the angle at which the Circular Saw will cut, loosen the Lock Spanner
(part #85) located at the front of the Saw. With one hand hold the Handle
(parts #59, #66), and with the other hand tilt the Foot (part #83) to the right or
left until the desired angle of cut is indicated on the Angle Adjustment Scale
(part #94). Then, re-tighten the Lock Spanner at the desired angle setting.
(See Figure H.)
LOCK SPANNER (#80)
FOOT (#83)
HANDLE (#60, #68)
ANGLE ADJUSTMENT
SCALE
(#91)
FIGURE H
LOCK SPANNER (#80)
HANDLE (#60, #68)
FOOT (#83)
FIGURE G
WARNING
REV 08l; 09j
