CLS-EXP-DIMFLV
Crestron Electronics, Inc. Installation Guide – DOC. 6680A
15 Volvo Drive Rockleigh, NJ 07647 (2020652)
Functional Summary
The CLS-EXP-DIMFLV enables the expansion of the
Crestron
®
iLux™ Integrated Lighting System and other
Crestron lighting dimmers to support 120 - 277 Volt loads
up to 16 Amps. It allows any output channel of a
compatible dimmer or switch to control a fully loaded
circuit of 0-10 VDC fluorescent ballasts
1
, non-dimmed
lighting (incandescent, HID, magnetic low voltage
(MLV), electronic low voltage (ELV), neon/cold cathode,
and fluorescent ballast) up to 16 amps, and motors rated
up to 1/2 HP @ 120 Volts, 1 HP @ 230/277 Volts.
The CLS-EXP-DIMFLV is designed for mounting to a
vertical surface. Conduit knockouts are provided on the
bottom and lower sides. All connections are made via
screw terminals behind the front cover.
Works with Crestron iLux (CLS(I)-C6),
CLW-Series dimmers
2,3
, CLX-Series dimmers
3
,
and DIN-1DIMU4
3
Emulates the characteristics of the dimmer that is
controlling it
Up to five Expansion Modules can be connected
to a single iLux dimmer channel
Supports 0-10 VDC fluorescent, non-dimmed
lighting (including HID), and motors rated up to 1
HP
Built-in air gap relay at the output
1. Ballasts must comply with the specifications for control by DC
voltage in ANSI C82.11:2002 and IEC60929:2006.
2. CLW-Series devices must have a dedicated neutral.
3. The CLS-EXP-DIMFLV can only be controlled by forward-phase
dimmer modules. It is not compatible with the CLX(I)-1DELV4. If
connected to a DIN-1DIMU4, the DIN-1DIMU4 must be set to
operate as a forward-phase dimmer or a non-dimming switch.

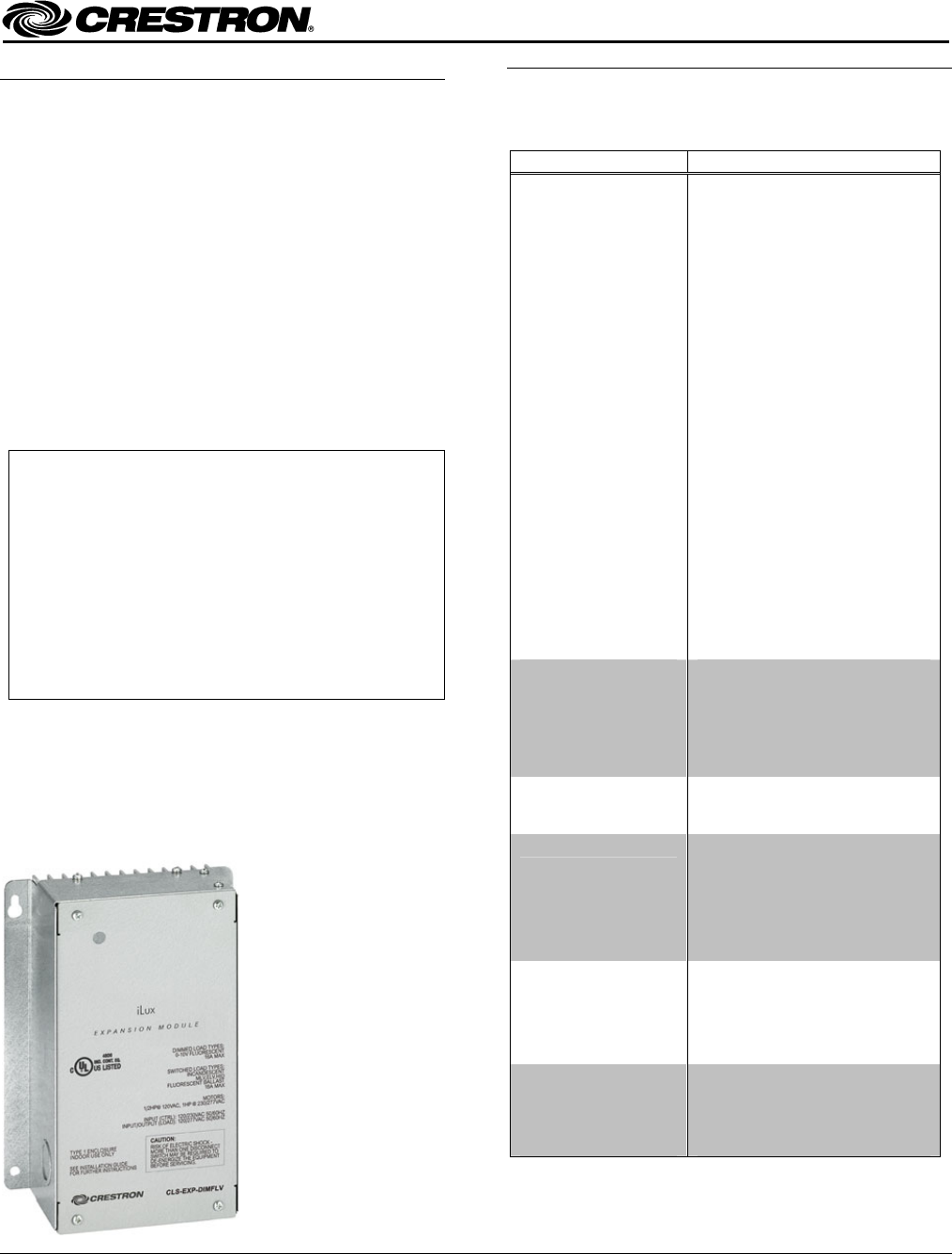

CLS-EXP-DIMFLV Physical View
Specifications
CLS-EXP-DIMFLV Specifications
SPECIFICATION DETAILS
Load Ratings
Output Channels
Load Ratings:
Lamp
Motor
Minimum Load
at 120 Volts
at 230 Volts
at 277 Volts
Load Types
1
16 Amps @ 120 – 277 Volts
(70 mA max current sink for 0-10
VDC ballasts)
1/2 HP @ 120 Volts,
1 HP @ 230/277 Volts
15 Watts
25 Watts
30 Watts
Dimmable Loads
0-10 VDC dimmable fluorescent
ballasts (i.e. Advance Mark 7 or
other ballasts that are compliant
with the specifications for control
by DC voltage in ANSI
C82.11:2002 and IEC60929:2006)
Non-Dim Loads
Incandescent, HID, magnetic low
voltage (MLV), electronic low
voltage (ELV), neon/cold cathode,
and fluorescent ballasts
Motors
Up to 1 HP @ 230/277 Volts
Input Voltages
Line Power
Control Input
120 to 277 Volts AC, 50/60 Hz
120 or 230 Volts AC, 50/60 Hz,
phase independent of line power
and load, presents 25 Watts load
to the controlling device
Electrical Terminals Captive screw type;
Accommodates two 22-12 AWG
(0.34-4.0 mm
2
) wires
Enclosure Surface mount module with (2)
integral mounting flanges,
galvanized steel w/gray matte
powder coat front panel, extruded
aluminum heat sink, 1/2” and 3/4”
conduit knockouts provided on
bottom and lower left & right sides
Environmental
Temperature
Humidity
Maximum Heat
Dissipation
32° to 104°F (0° to 40°C)
10% to 90% RH (non-condensing)
68 BTU/Hr
Dimensions
Height
Width
Depth
Weight
8.82 in (22.40 cm)
6.39 in (16.23 cm)
3.18 in (8.08 cm)
3.3 lbs (1.5 kg)
(Continued on following page)
