iLux™ Expansion Module Crestron CLS-EXP-DIMFLV

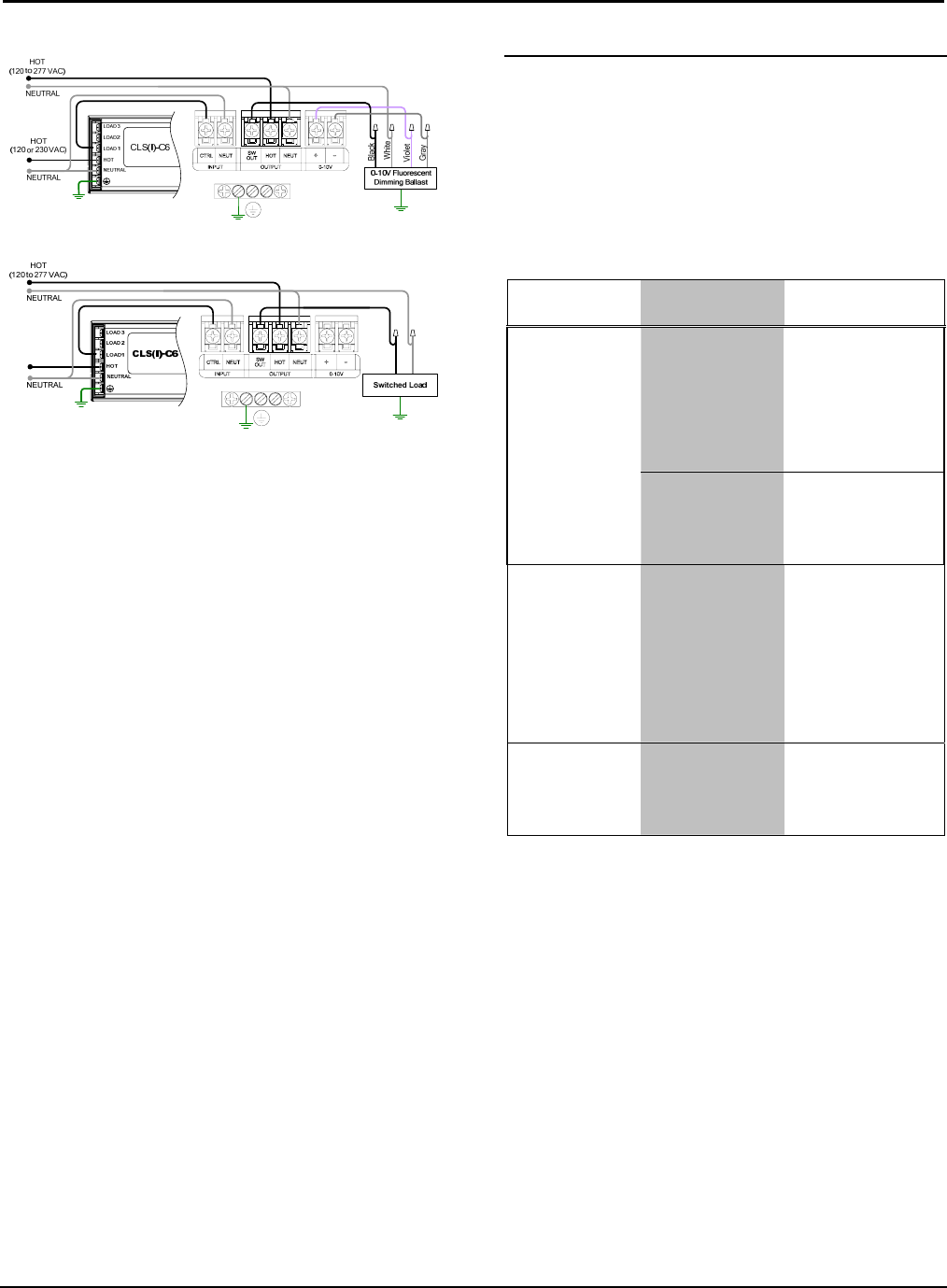

CLS-EXP-DIMFLV Wiring for 0-10V Dimming
CLS-EXP-DIMFLV Wiring for Switching Application
Black
Black
White
3. Apply power to the line/load and turn on the
controlling device. The power indicator LED will
light indicating that power is supplied to the
module.
4. Replace the cover and cover screws.
Problem Solving
Troubleshooting
The following table provides corrective action for
possible trouble situations. If further assistance is
required, please contact a Crestron customer service
representative.
CLS-EXP-DIMFLV Troubleshooting
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
Controlling
dimmer or switch
is not working.
Make sure the
controller is
powered on, and is
one of the
compatible dimmers
listed in
“Specifications” on
page 1.
Load does not
turn on.
No power applied
to HOT terminal.
Check circuit
breaker. Check that
green power LED
on inside of unit is
lit.
Load turns on
and off, but will
not dim.
Controlling unit is
either not a
dimmer, or has
been set to non-
dim.
Verify that dimmer is
compatible with the
CLS-EXP-DIMFLV
(refer to
“Specifications” on
page 1). Verify that
the controlling
channel has not
been programmed
as non-dim.
Lights do not dim
properly.
Using an
incompatible
dimmer.
Make sure that the
dimmer is one of
those listed in
“Specifications” on
page 1.
6 • iLux™ Expansion Module: CLS-EXP-DIMFLV Installation Guide – DOC. 6680A
