Crestron CLS-EXP-DIMFLV iLux™ Expansion Module
Setup
Important Notes
Read before installation.
• Codes: Install in accordance with all local and
national electrical codes.
• Wiring: Use 75°C copper wire only.
Installation

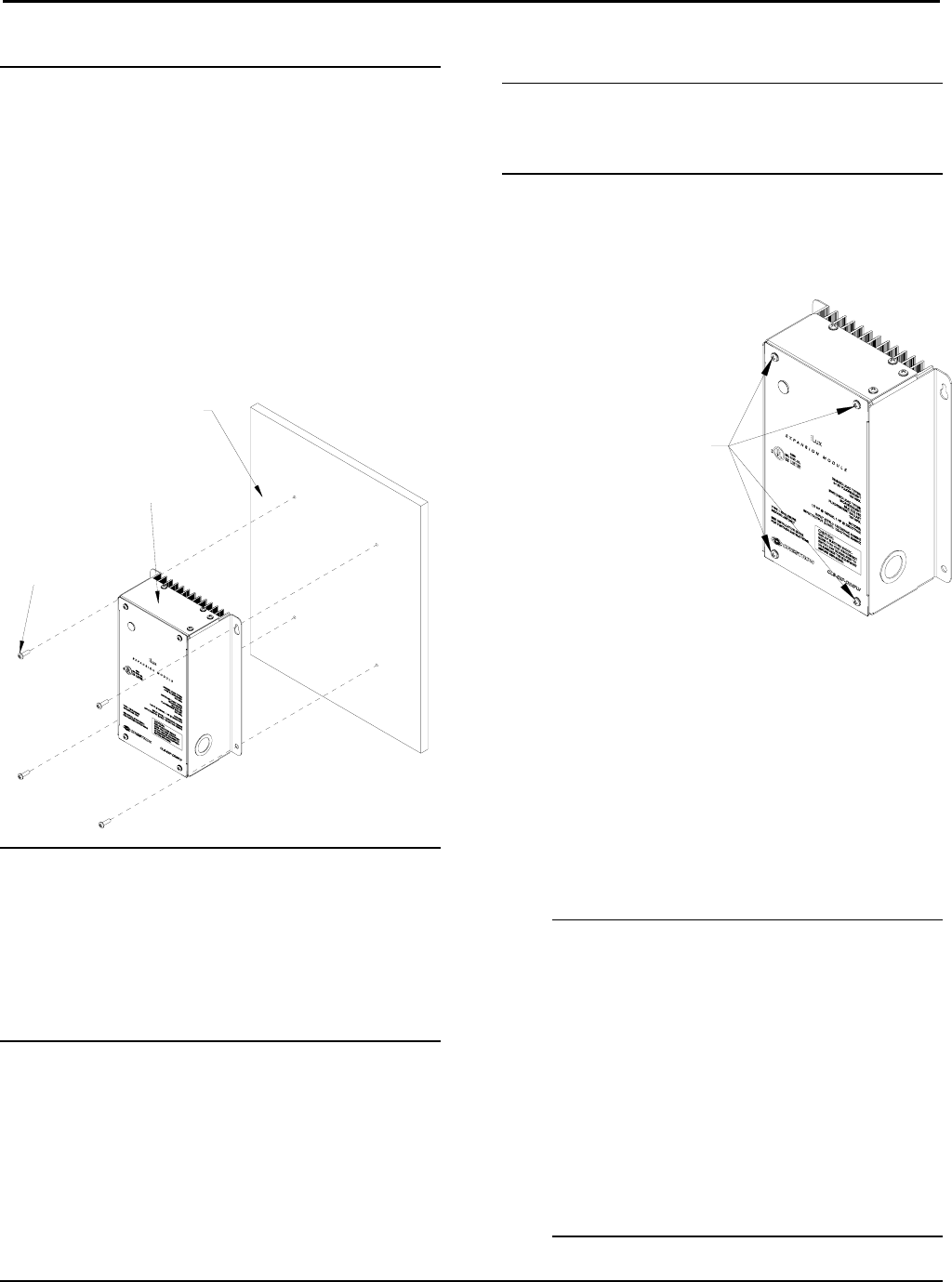

Refer to the following diagram when installing a
CLS-EXP-DIMFLV module.
Module Installation
CLS-EXP-DIMFLV MODULE
MOUNTING SURFACE
MOUNTING SCREW, #8,
QTY 4 TOTAL
(NOT SUPPLIED)
NOTE: To prevent potential heat damage to drywall, do
not mount the CLS-EXP-DIMFLV directly onto drywall.
Mount a piece of ½” (minimum) thick plywood between
the CLS-EXP-DIMFLV and the drywall.
NOTE: To ensure proper ventilation, the device must be
installed vertically on a vertical surface. Install device
with 6 inches (15.2 cm) of clearance from the top and
bottom of the device.
Hardware Hookup
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
installation. Installing with power on can result in serious
personal injury and damage to the device.
1. Use a #2 Philips screwdriver to remove the cover
screws as shown in the following diagram and
remove the cover.
Remove Cover Screws
COVER SCREWS
(x4)
2. Depending on the module’s application, select the
appropriate configuration from one of the wiring
diagrams on the next page and connect the CLS-C6
and load(s) as shown.
• Wires should be stripped to 7/16” (1.1 cm)
• Tighten terminal screws to 7 in-lbs (0.79 Nm)
• When wiring a 0-10V fluorescent dimmer, the
+ and – terminals can be wired as Class 1 or
Class 2. If wired as Class 1, the barrier
between the NEUT and + terminals can be
removed.
NOTE: Dimmer channels controlling one or more
CLS-EXP-DIMFLV modules must not be wired to
control any other type of load.
NOTE: While these diagrams show a CLS-C6 as
the controlling source, other Crestron products
such as CLW-Series wall dimmers (Cresnet
®
and
infiNET™), and CLX-Series dimming modules
can be used as well. Please refer to
“Specifications” on page 1 for detailed
information.
NOTE: When using a CLW-Series wall dimmer,
the wall dimmer must be wired with a dedicated
neutral wire.
Installation Guide – DOC. 6680A iLux™ Expansion Module: CLS-EXP-DIMFLV • 5
