Use proper extension cords. Make sure your extension
cord is in good condition and is a 3-wire extension cord
which has a 3-prong grounding type plug and matching
receptacle which will accept the machine’s plug. When
using an extension cord, be sure to use one heavy
enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage,
resulting in loss of power and overheating. Fig. D, shows
the correct gauge to use depending on the cord length.
If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
EXTENSION CORDS
OPERATING INSTRUCTIONS
FOREWORD
The Delta ShopMaster Model SA150 Belt/Disc Sander is a handy machine for sanding wood, metal, plastic, or ceramic
workpieces. This machine incorporates a 1" belt sander and a 5" disc sander, and uses an induction motor for long-
lasting performance. Features include automatic belt tensioning, removable belt platen, built-in dust port, and a power
take-off for mounting an accessory flexible shaft to do specialized work.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT
PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE
ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR
ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.
5
Fig. D
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120
up to
25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to
25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to
25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to
25 14 AWG
12-16 120 25-50 12 AWG
12-16 120
GREATER THAN 50 FEET NOT RECOMMENDED

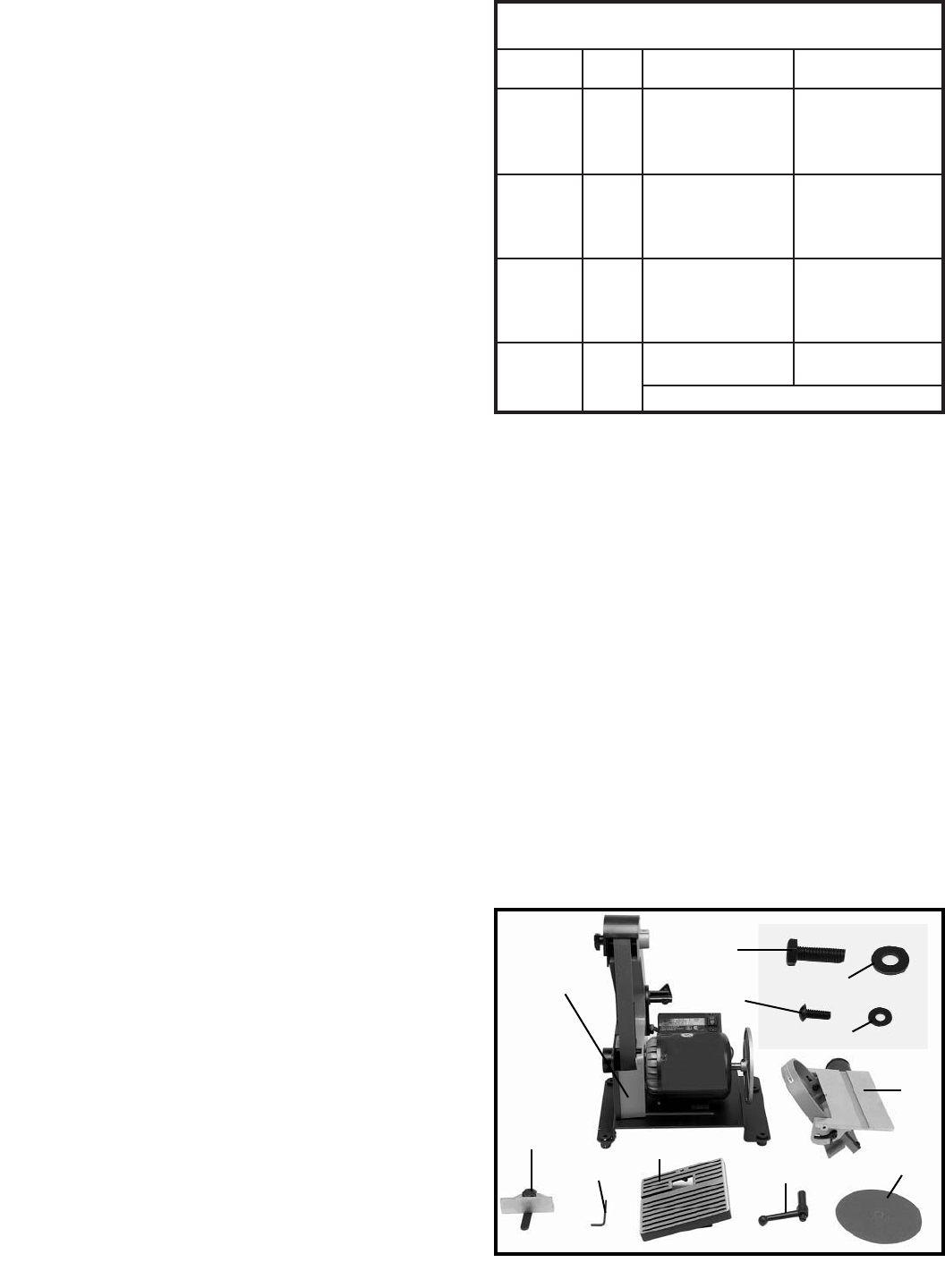

BELT / DISC SANDER PARTS
Fig. 1
1. Motor and Base
2. Miter Gage
3. 3mm Hex Wrench
4. Belt Table
5. Handle
6. Sanding Disc
7. Disc Guard and Table
8. M8x1.25x30mm Hex Head Screw (1)
9. 10-24x3/8" Pan Head Screw (2)
10. M8.4 Flat Washer (1)
11. 3/16" Flat Washer (2)
1
2
3
4
5
6
7
8
9
12
13
