10
ASSEMBLING TOP COVER AND
DUST CHUTE

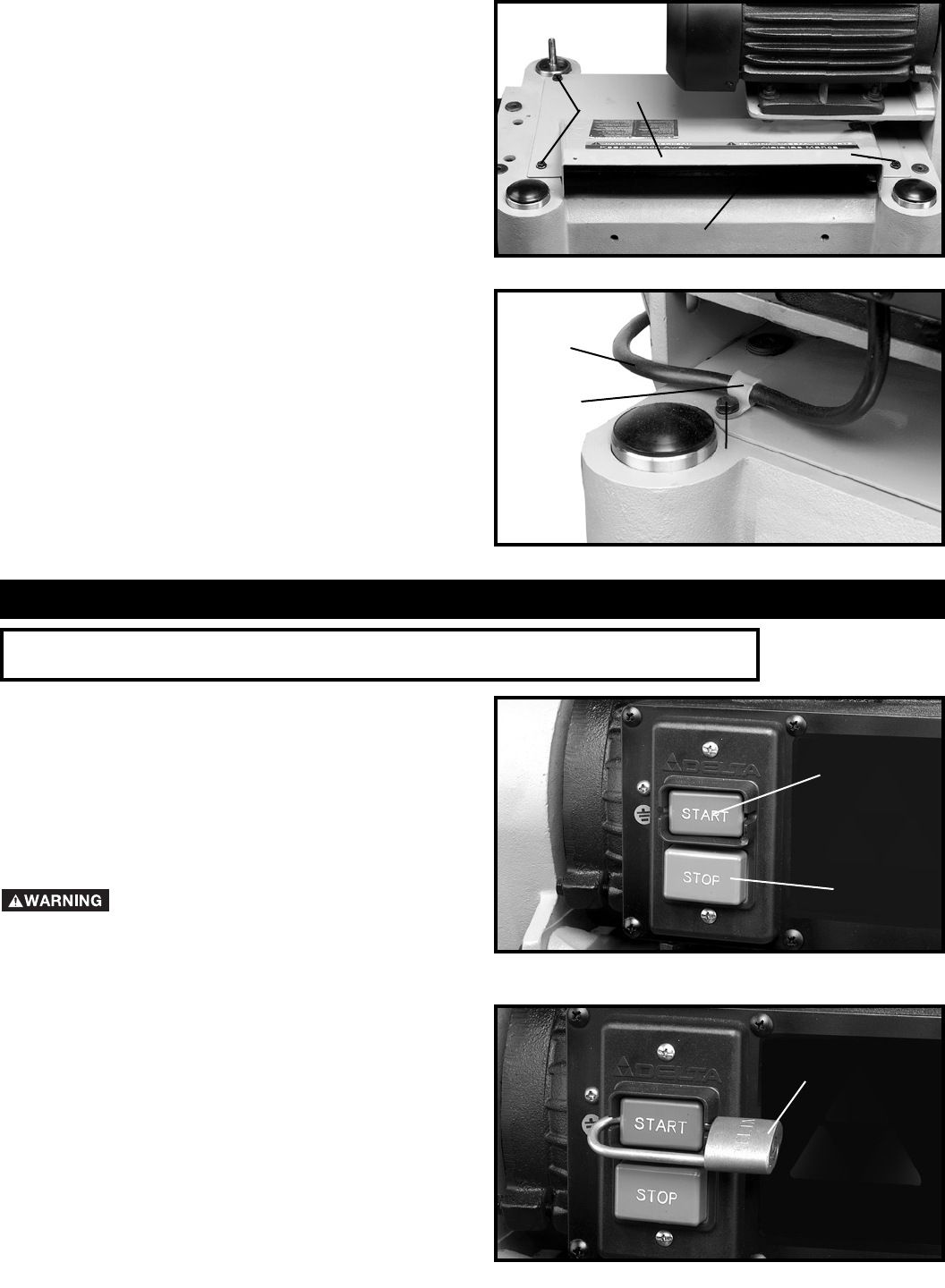

1. Fasten the top cover and dust chute (A) Fig. 16, to
the top of the planer, as shown, using the three
M6x16mm screws (B) supplied. IMPORTANT: The dust
chute opening (C) must point to the rear as shown.
Fig. 16
Fig. 17
2. Fasten the left corner of the cover to the top of the
planer using the remaining M6x16mm screw (D) Fig. 17,
and cord clamp (E). NOTE: The motor cord (F) must be
inserted and positioned into the cord clamp as shown.
D
E
F
B
B
C
A
OPERATING CONTROLS AND ADJUSTMENTS
Fig. 18
A
B
Fig. 19
C
STARTING AND STOPPING PLANER
1. The on/off switch is located on the front of the
planer. To turn the machine “ON”, push the START
button (A) Fig. 18.
2. To turn the machine “OFF”, push the STOP button
(B) Fig. 18.
MAKE SURE THAT THE SWITCH IS IN
THE “OFF” POSITION BEFORE
PLUGGING IN THE POWER CORD. IN THE EVENT OF A
POWER FAILURE, MOVE THE SWITCH TO THE “OFF”
POSITION. AN ACCIDENTAL START-UP CAN CAUSE
INJURY.
LOCKING SWITCH IN THE “OFF”
POSITION
IMPORTANT: When the machine is not in use, the
switch should be locked in the “OFF” position to prevent
unauthorized use,
using a padlock (C) Fig. 19 with a 3/16"
diameter shackle.
OPERATIONAL CONTROLS AND ADJUSTMENTS
