MAINTENANCE
Fig. 53 Fig. 54
A
B
Fig. 55
E
C
D
Fig. 56
F
LUBRICATION

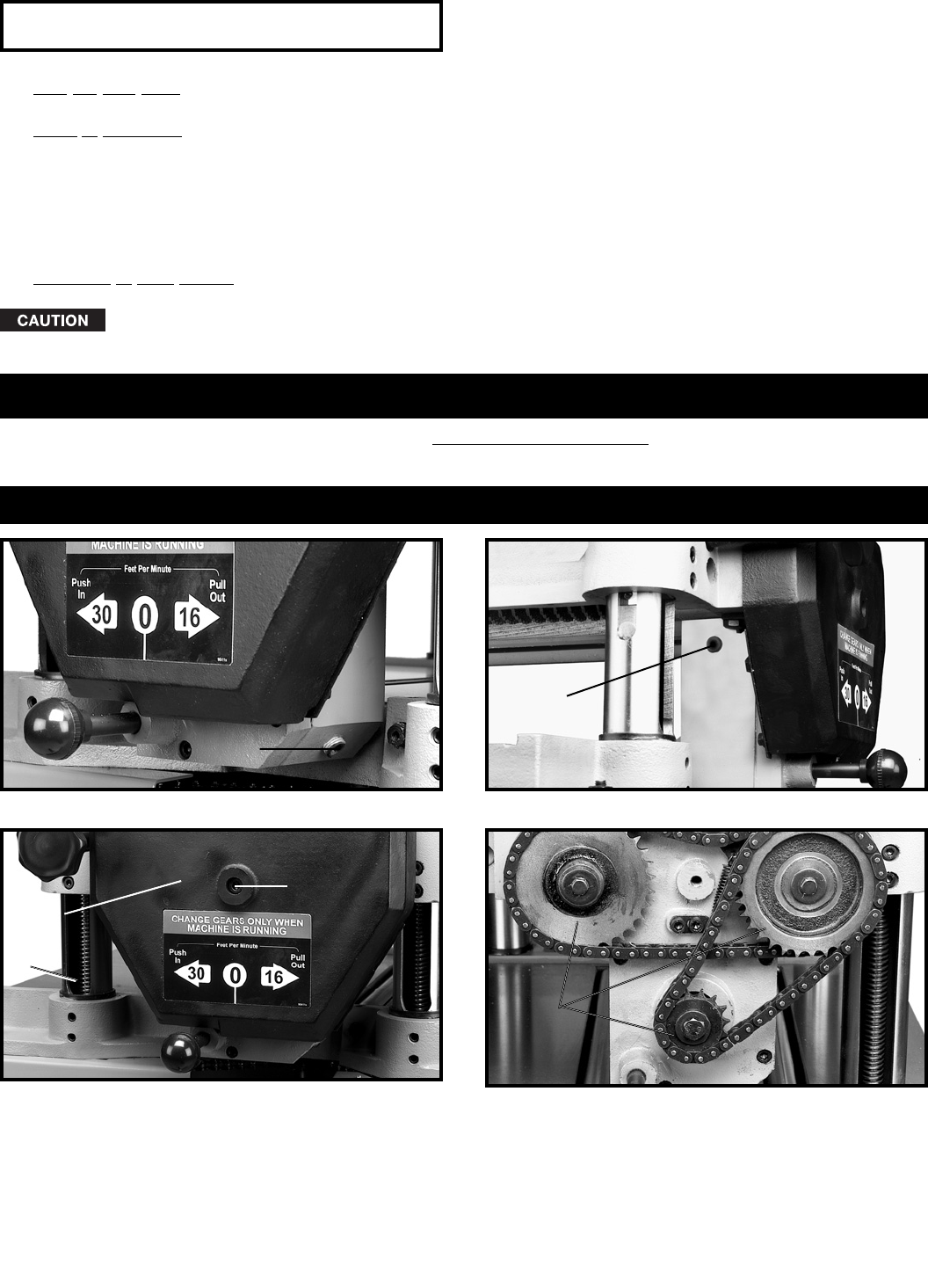

The gear box oil should be changed once a year. Use
extreme pressure gear oil, available from Delta in one
pint cans (you will need approximately 20 oz.). The gear
box drain plug is shown at (A) Fig. 53. The oil fill and
level plug is shown at (B) Fig. 54.
The four raising screws, two of which are shown at (C)
When using your machine, you may want to follow these few simple steps for achieving the best results possible.
1. T
rue Up One Face – Feed one face of the board over a jointer, making thin cuts with each pass, until the entire
surface is flat.
2. Plane
to Thickness – Place the side you just surfaced in STEP 1 face down and feed the board through the planer,
plane until this side is flat. Then plane both sides of the board until you are satisfied with the thickness, making thin
cuts, alternating sides with each pass. If during the planing operation you notice the board twisting, warping or bowing,
repeat STEP 1 and true up one face.
3. When planing long stock, provide table extensions to support the infeed and outfeed end of the workpiece.
4. For best results, always engage cutterhead lock before planing, plane with the grain only, and keep planer table clean.
Occasionally, wax table surface to reduce friction during the planing operation.
5. Cr
oss-cut to Final Length – Cross-cut lumber to final length.
THE KNIVES ON THE PLANER WILL NOT WEAR EVENLY BY FEEDING THE WOOD THROUGH
THE SAME SPOT ON THE TABLE EVERY TIME. FEED THE WOOD THROUGH THE PLANER AT
DIFFERENT SPOTS ON THE TABLE WHEN POSSIBLE, TO HELP ELIMINATE UNEVEN WEAR OF THE KNIVES.
MACHINE USE
TROUBLESHOOTING
For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call
the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582).
18
Fig. 55, should be lubricated as required using a
common grease.
Periodically remove screw (D) Fig. 55, and side cover
(E). Thoroughly clean chains and sprockets (F) Fig. 56,
and lubricate using a light machine oil. Replace side
cover (E) Fig. 55, and secure with screw (D).
