Model H8224 HVLP Spray Gun -5-
• Fluid Control: Controls the volume of
material that travels through the fluid
tip.
• Pattern Control: Adjusts the spray
pattern from a round pattern to a wide
fan.
• Atomizing Cap: Controls the spray
pattern from vertical to horizontal.
• Trigger: Squeeze the trigger half way
to blow air, or squeeze all the way to
spray.
• Air Flow Control: Controls the fluid
pressure inside the spray gun.
• Cup: Holds up to 120cc of material for
spraying.
Controls

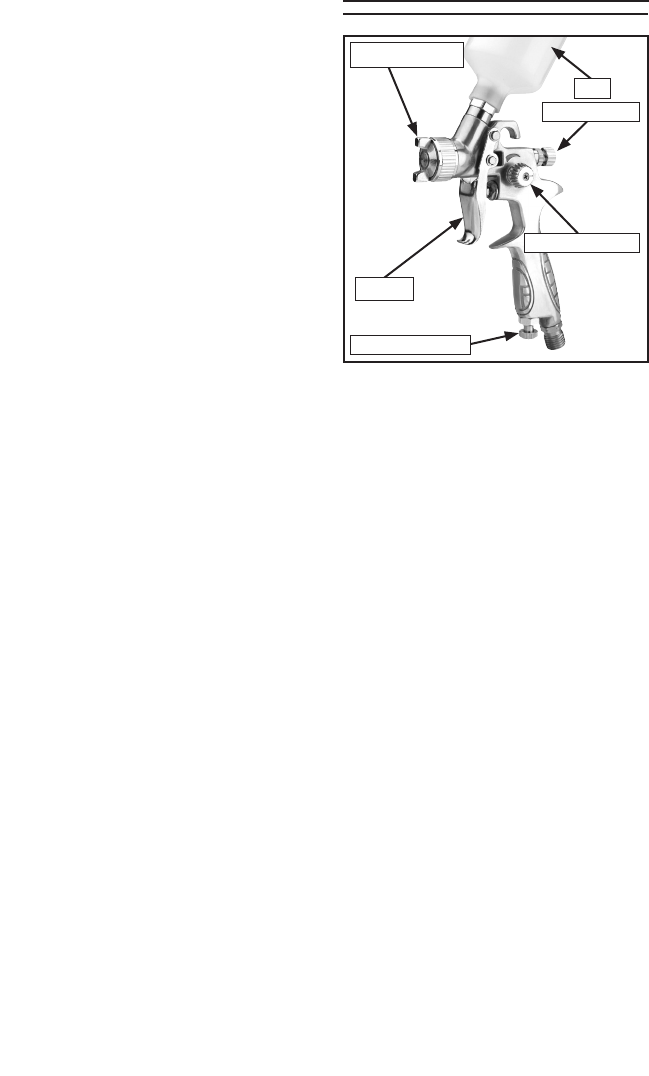

Figure 4. Controls.
Pattern Control
Atomizing Cap
Trigger
Fluid Control
Air Flow Control
Cup
3. Install and tighten the barbed hose
fitting to the air inlet with the provided
nut; or attach a female
1
⁄4" NPT quick
connect fitting (not included) to the air
inlet for connection to an air coupler.
Note: Using a
1
⁄4" NPT quick discon-
nect set-up, will make operation and
maintenance tasks easier.
4. Attach the spray gun to an air hose
regulated between 44 and 58 PSI.
Note: For the best results, use a hose
that will be dedicated for spray use
only. Do not use a hose that has been
used with an in-line oiler or other pos-
sible contaminant.
If you need additional help with this assem-
bly, call our Technical Support at: (570)
546-9663.
