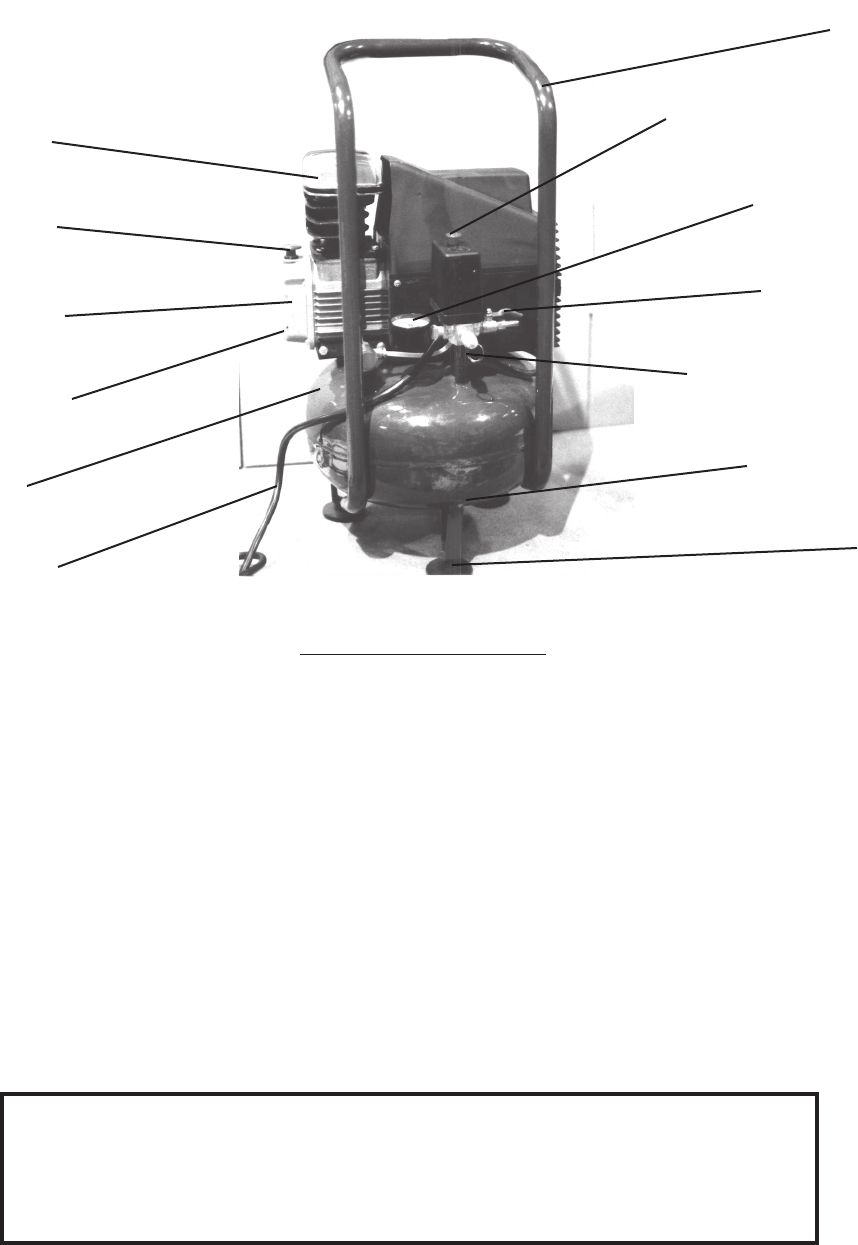

Filter
Top Products
Handle
ON / OFF Power Switch
Pressure Gauge
Air Flow Valve
Pressure Release Valve
Tank Drain Valve
Foot
Compressor
Oil Dipstick
Oil Reservoir
Oil Drain Plug
Air Tank
Power Cord
Page 4 SKU # 38898 Rev 01/02
ELECTRICAL SET UP
Your compressor has a grounded, three-prong plug. If using an extension cord, it must be a
three-prong type. You must connect to a three-prong receptacles only. The third prong is for grounding;
do not remove or disable the third prong, as this will create an unsafe condition.
Common household current is 110-120 Volts. As long as your compressor is rated from 110-
120 Volts, there will be no complications in using power from a household receptacle. Never try to plug
a tool designed for 110-120 Volts into a 220-240 Volt receptacle. 220V plugs and outlets are shaped
differently to prevent this.
Only use rounded jacket extension cords, preferably listed by Underwriter’s Laboratories (UL).
Make sure the cord is rated for outdoor use, even if your application is indoors. Outdoor use
cords have the letters “WA” on the cord jacket.
The extension cord must have a minimum wire size depending on the amperage of the tool and
the length of the extension cord. The size is signified by its AWG (American Wire Gauge) rating; the
smaller the gauge, the greater the cable’s capacity.
Note: When using extension cords - To avoid circuit breaker and voltage
drop problems when using extension cords, we recommend using only
12 gauge x 50 foot extension cords (Item #41444 or #45287), available from
Harbor Freight Tools).
