– 12 –
Knob
Nail guide
Magazine
Nail holder
Magazine
cover
Nail holder
Magazine
Magazine
Magazine cover
Nail holder
First nail
Guide slot
First nail
Pawl 1
Pawl 2
Driving hole
First nail Guide slot
32mm
38mm
45.50mm
57.65mm
Nails
Pawl 1
Pawl 2
Guide slot for
plastic sheet
Driving hole
NOTE:
Before loading nails in the magazine, adjust the plate. If the magazine cover is forcibly
closed without adjusting the plate correctly, the nail holder may be damaged.

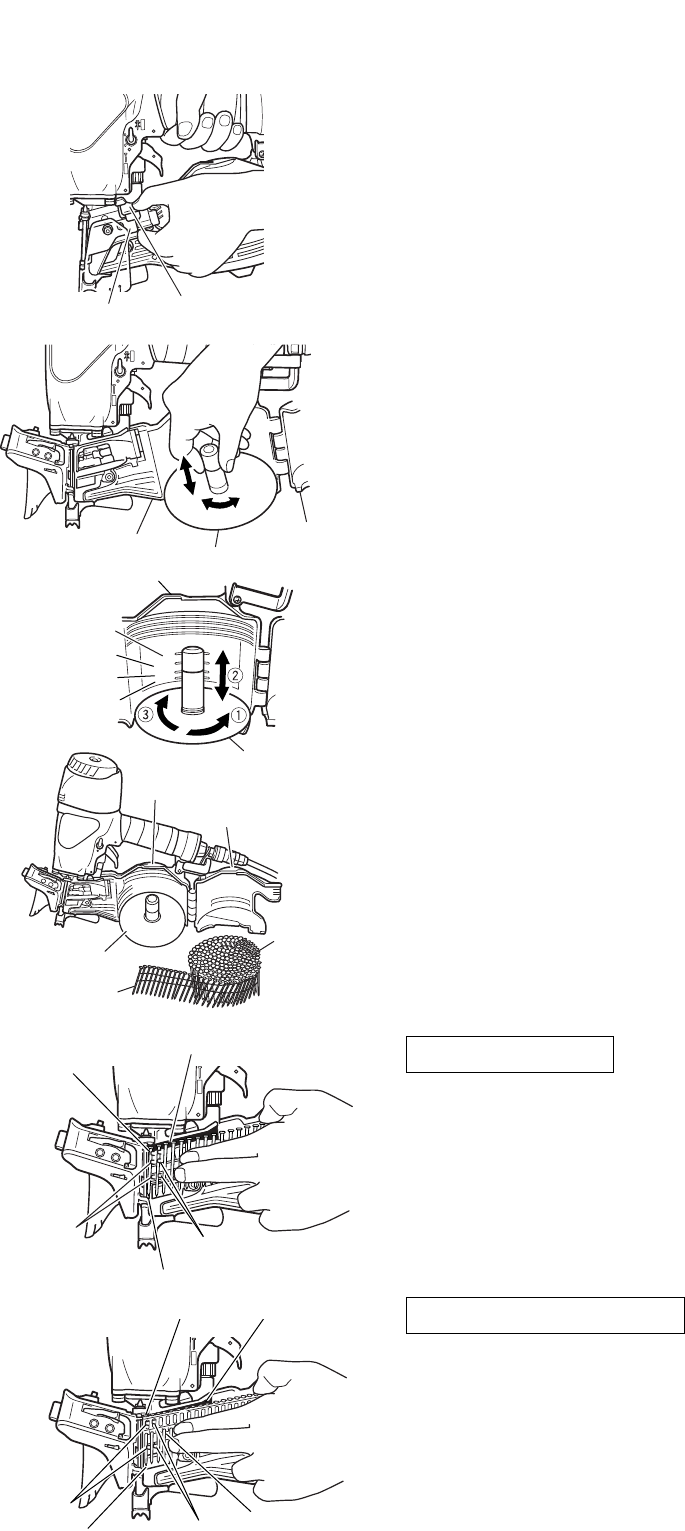

(1) Grip the nail guide and knob with finger.
Press the knob down and swing the nail guide open.
And open the magazine cover.
(2) Adjust the position of the plate according to the nail length.
The nail will not feed smoothly if the plate is not correctly
adjusted.
1 Turn the nail holder about 90 degrees counterclockwise.
2 Slide in vertical direction possible.
Lift or lower the nail holder to accept different length nails.
3 Adjust the plate to the nail length reference points on the
magazine cover and turn the nail holder 90 degrees clockwise
until you hear "click".
(3) Place the nail coil into the magazine.
Uncoil enough nails to reach the driving hole.
Wire collated nails
Insert the first nail into the driving hole and the second nail
between the two pawls of the feeder.
Fit the nail head in the guide slot.
Plastic sheet collated nails
Insert the first nail into the driving hole and the second nail
between the two pawls of the feeder.
Fit the nail head and upper side of the plastic sheet in the guide
slot.
Fit the lower side of the plastic sheet in the guide slot for plastic
sheets.
