9

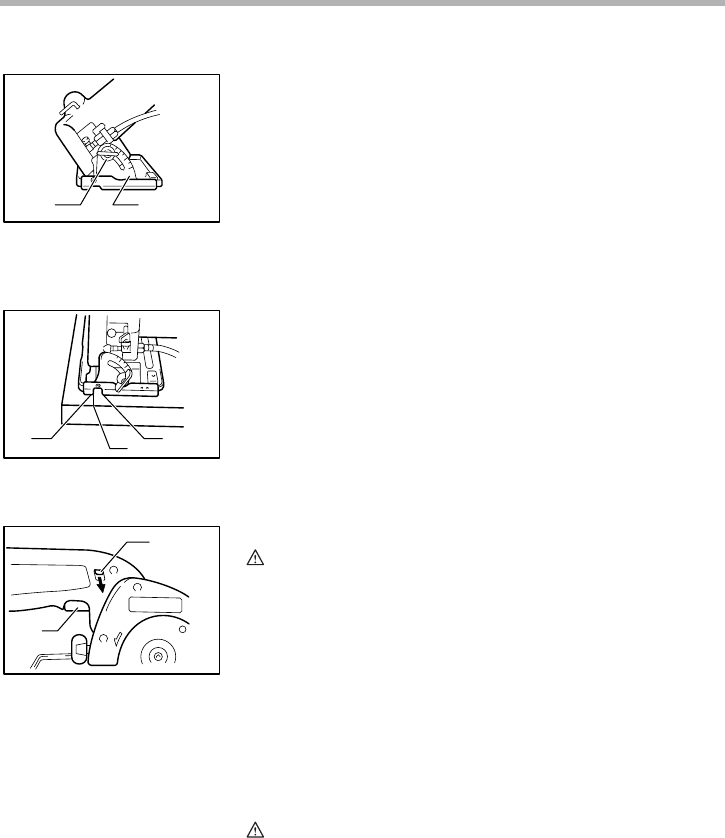

Bevel cutting
Loosen the clamping screw on the bevel scale plate on the
front of the base. Set for the desired angle (0° - 45° ) by tilting
accordingly, then tighten the clamping screw securely.
Sighting
For straight cuts, align the A position on the front of the base
with your cutting line. For 45° bevel cuts, align the B position
with it.
Switch action
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the “OFF” position when
released.
To prevent the switch trigger from being accidentally pulled, a
lock-off lever is provided.
To start the tool, slide the lock-off lever in the direction of the
arrow and pull the switch trigger. Release the switch trigger
to stop.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.
1. Clamping screw
2. Bevel scale plate
1
2
003517
1. Cutting line
A
B
1
003521
1. Lock-off lever
2. Switch trigger
1
2
003525
