[2] LUBRICATION
Apply Makita grease N. No.2 to the following portions designated with the black triangle to protect parts and product
from unusual abrasion.
[1] NECESSARY REPAIRING TOOLS
CAUTION: Remove the bit and the battery from the machine for safety before
repair/ maintenance in accordance with the instruction manual!
Repair
Description
Assembling / Disassembling Bearing retainer 36-43
Assembling / Disassembling Bearing retainer 36-43
Assembling Spur gear 29 section to Gear housing
Removing Keyless drill chuck
Removing Ball bearings
Removing Retaining ring S-12
Code No.
Bearing setting pipe 23-15.2
1R029
Drill chuck extractor
1R139
Bearing extractor
1R269
Retaining ring S and R pliers
1R291
Wrench for Bearing retainer
(with expanded claw distance from
30mm to 36mm)
1R292
Adjustable bearing retainer wrench
1R316
Use for
Makita grease N No. 2

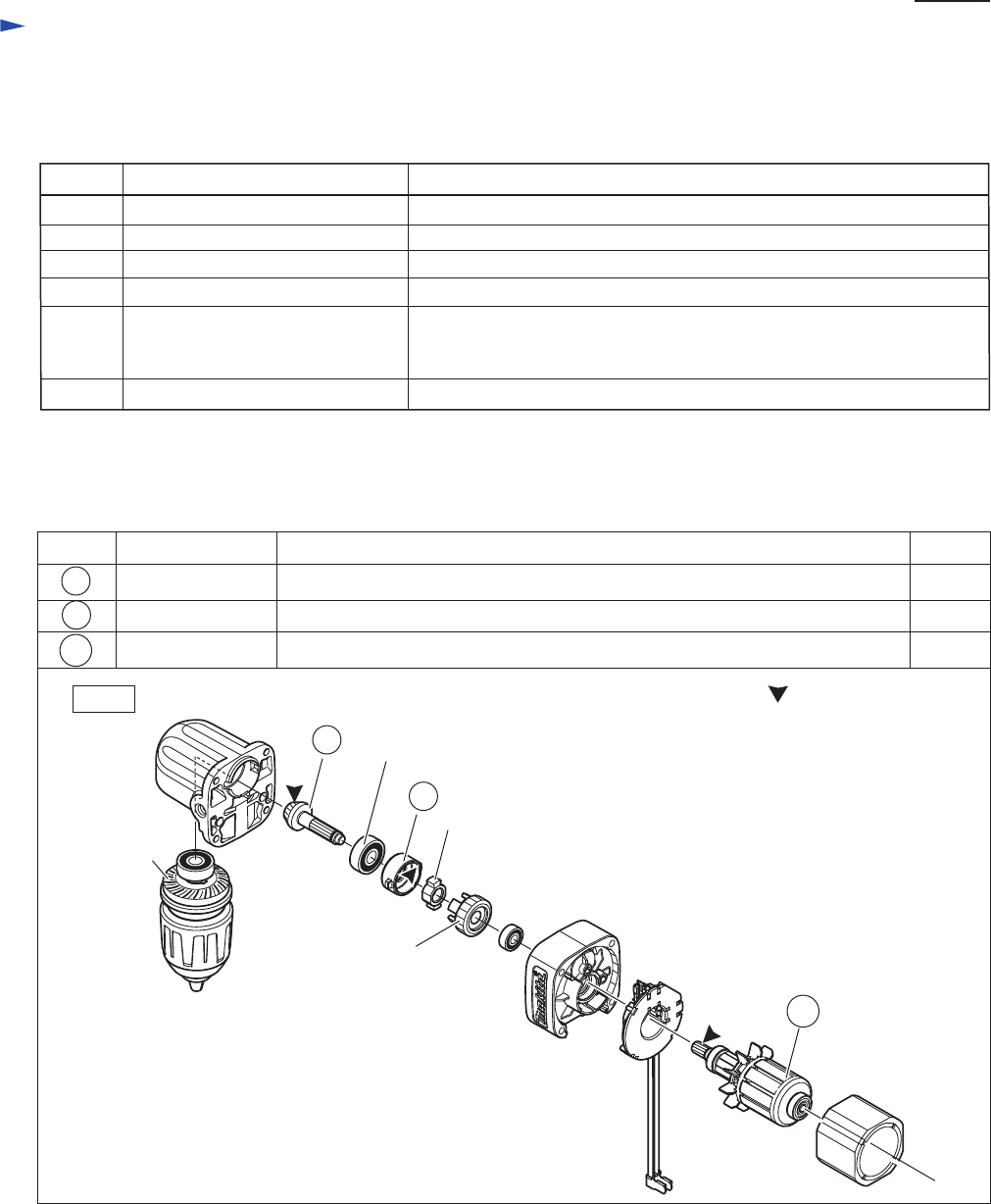

Fig. 1
Item No. Description Amount
4g
2g
Spiral bevel gear 9 Teeth portion for smooth engaging with Spiral bevel gear 26
Ball bearing 608ZZ
Lock cam
Spur gear 29
Spiral bevel
gear 26
Portion to lubricate
Lock ring a littleInside where Lock cam contacts
Armature Drive end where engages with Spur gear 29
15
3
5
15
3
5
