18
CR-W402UA

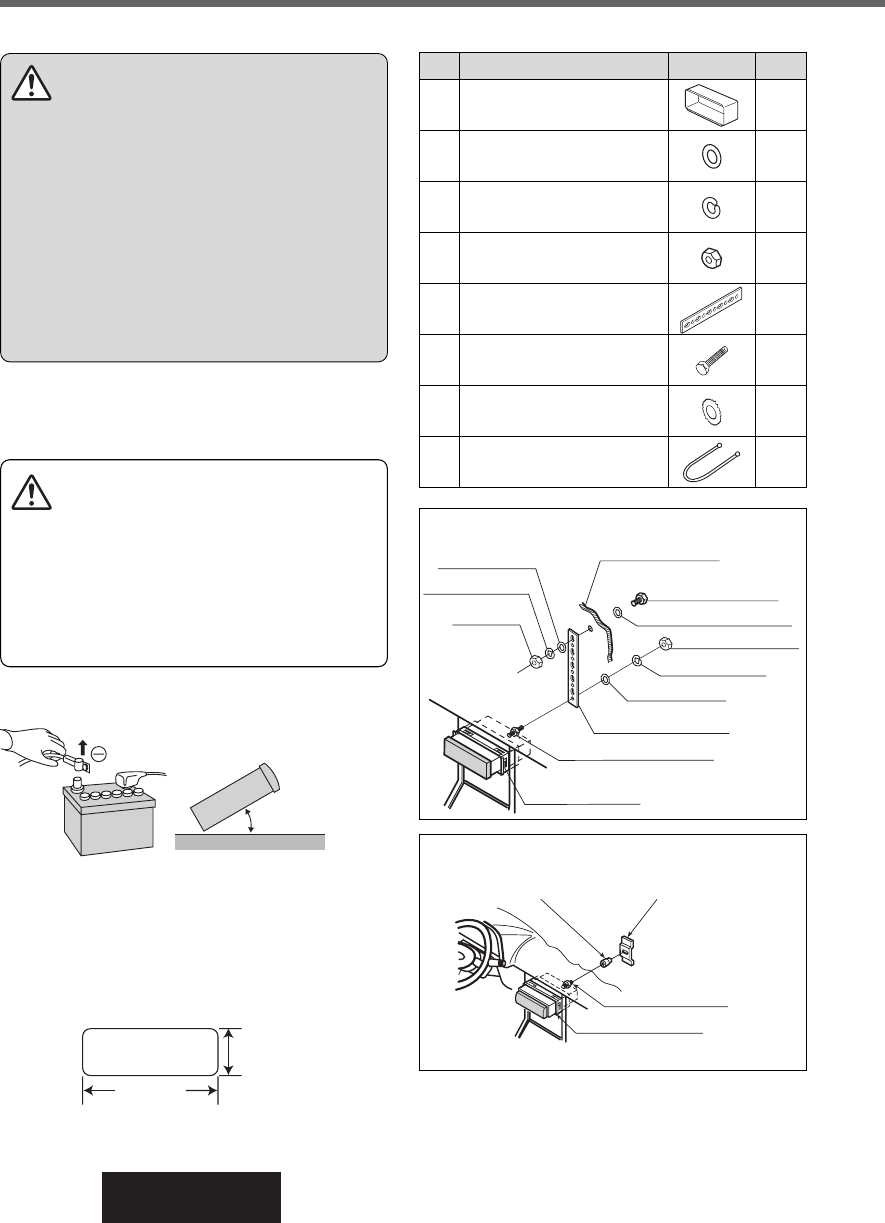

Installation (continued)
❏ Precautions
¡Disconnect the cable from the negative @ battery
terminal (see warning and caution below).
¡Remove Mounting Collar q from the main unit
temporarily, which are already mounted at shipment.*
¡
Unit should be installed in a horizontal position with the
front end up at a convenient angle, but not more than 30˚.
❏ Dashboard Installation
Installation Opening
Less than 30˚
Caution
Various settings that have been stored in the memory in
other on-board equipment (vehicle navigation etc.) may
be lost if the battery terminals are disconnected.
Therefore, we recommend to make a record of or to
back up the settings before disconnecting the terminals.
After completing installation of the main unit, set the
equipment again according to the record.
Warning
If your vehicle is equipped with air bag and/or anti-theft
systems, specific procedures may be required for
connection and disconnection of the battery to install
this product.
Before attempting installation of this electronic
component, contact your vehicle dealer or
manufacturer to determine the required procedure and
strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT
IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR
ACTIVATION OF THE ANTI-THEFT SYSTEM
RESULTING IN DAMAGE TO THE VEHICLE AND
PERSONAL INJURY.
❐ Installation Hardware
Q’ty
Item
No. Diagram
q
1Mounting Collar*
w
2Plain washer (5 mm ø)
e
2Spring Washer (5 mm ø)
r
2Hex. Nut (5 mm ø)
t
1Rear Support Strap
y
1
Hex. Bolt
(5 mm ø × 25 mm)
u
1
Toothed Lock Washer
(5 mm ø)
i
2
Removal Tool
(U-shaped)
wPlain Washer
wPlain Washer
eSpring Washer
eSpring Washer
rHex. Nut
rHex. Nut (5 mmø)
tRear Support Strap
yHex. Bolt
(5 mmø x 25 mm)
qMounting Collar
uToothed Lock Washer
Mounting Bolt (5 mmø)
Fire Wall of Vehicle
Rear support bracket
(provided on the vehicle)
Rubber cushion (option)
qMounting Collar
Mounting Bolt
(5 mmø)
(a) Using the rear support strap t
(b) Using the rubber cushion (option)
182 mm
{7-
5
/32"}
53 mm
{2-
3
/32"}
This unit can be installed in any dashboard having an
opening as shown below. The dashboard should be
4.75 mm {3/16”} – 5.56 mm {7/32”} thick in order to be
able to support the unit.
