INSTALLING SAWDUST EXHAUST NOZZLE
An exhaust nozzle is provided to direct sawdust away from operator and the
line of cut. This nozzle can be installed as follows:
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Swing open exhaust cover (A) Fig. 11, and clean out any sawdust that
may have accumulated.
3. Insert nozzle in exhaust opening and push in until seated.
4. To remove, grasp nozzle where it enters exhaust opening and pull out.
CAUTION: Never direct sawdust toward the operator. To avoid
personal injury from flying sawdust, the exhaust cover should be kept
closed at all times the nozzle is not assembled. NEVER insert foreign
objects into exhaust opening.
INSTALLING AND CARE OF DUST BAG
A dust bag is available as an accessory. Install dust bag as follows:
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Swing open exhaust cover (A) Fig. 12, and clean out any sawdust that
may have accumulated.
3. Insert dust bag tube in exhaust opening and push in until seated.
4. To remove, grasp dust bag tube where it enters exhaust opening and pull
out.
5. Unzip bag and shake out sawdust. Occasionally turn bag inside out and
brush out thoroughly.
CAUTION: To avoid personal injury from flying sawdust, the exhaust
cover should be kept closed at all times the dust bag is not
assembled. NEVER insert foreign objects into exhaust opening.

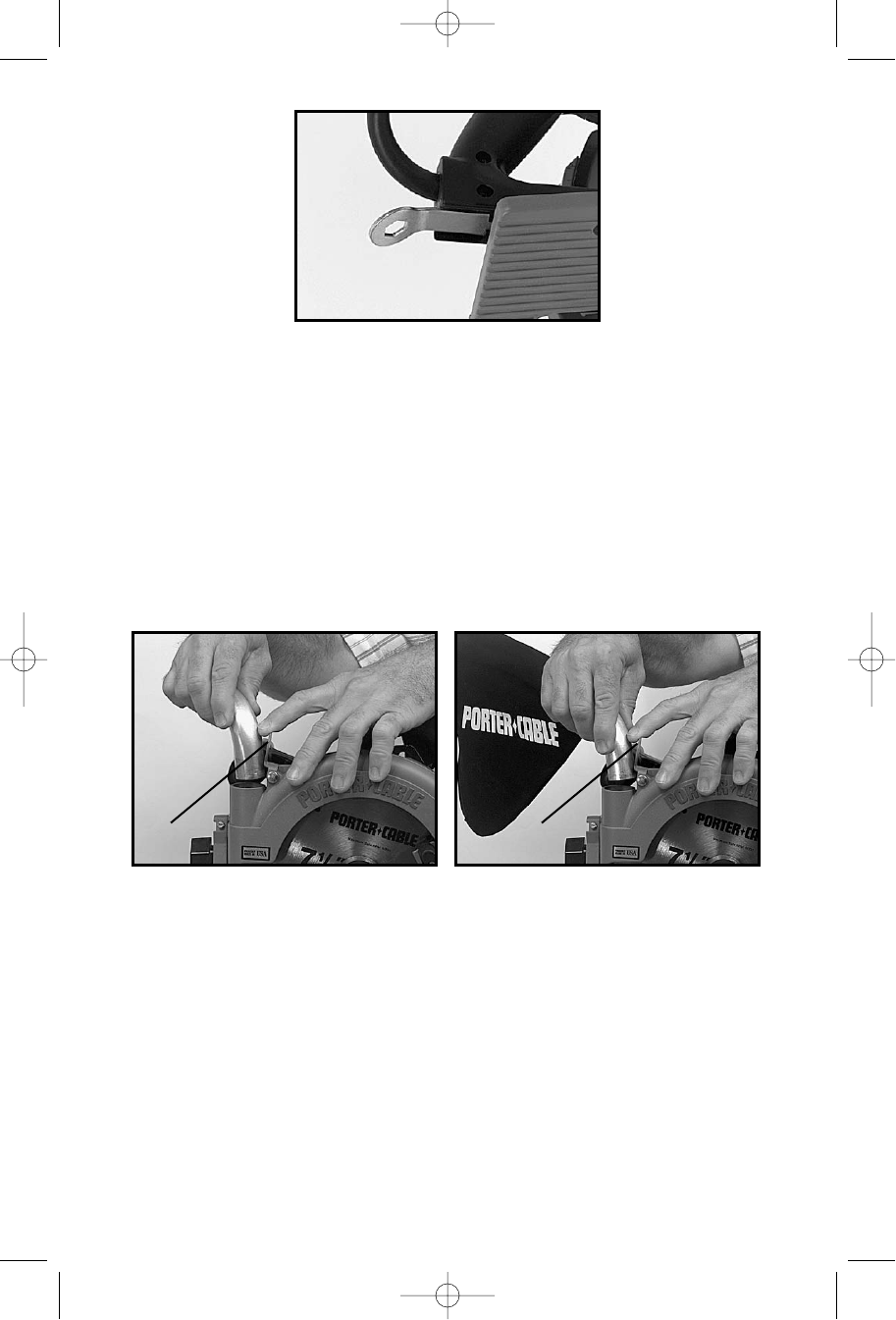

Fig. 10
Fig. 11
Fig. 12
A
A
