BEVEL CUTTING
Bevel cuts are made in the same manner as crosscuts and rip cuts. The only
difference is that the blade is set at an angle between 0° and 45°, as shown in
Fig. 16.
The bevel cut made at an angle to the edge of a board is called a compound
cut. There are certain compound cuts, on which it may be necessary to
manually retract the telescoping guard to allow the blade to enter into and/or
through the cut.
CAUTION: Use the lever (A) Fig. 14, provided on the telescoping
guard when you have to retract the telescoping guard manually.
POCKET CUTS (PLUNGE CUTTING)
A pocket cut is one which must be made inside the area of the material and
not starting from the edge. Mark the area clearly with lines on all sides. Start
near the corner of one side and place front edge of saw base firmly on the
work. Hold saw up so blade clears the material. Be sure you have adjusted the
blade properly for depth of cut. Push the telescoping guard lever all the way
back so the blade is exposed as shown in Fig. 17. Start the motor and lower
the blade into the work. After the blade has cut through, and the base rests
flat on the work, follow the line right up to the corner. Use a keyhole or bayonet
saw to cut the corners out clean.

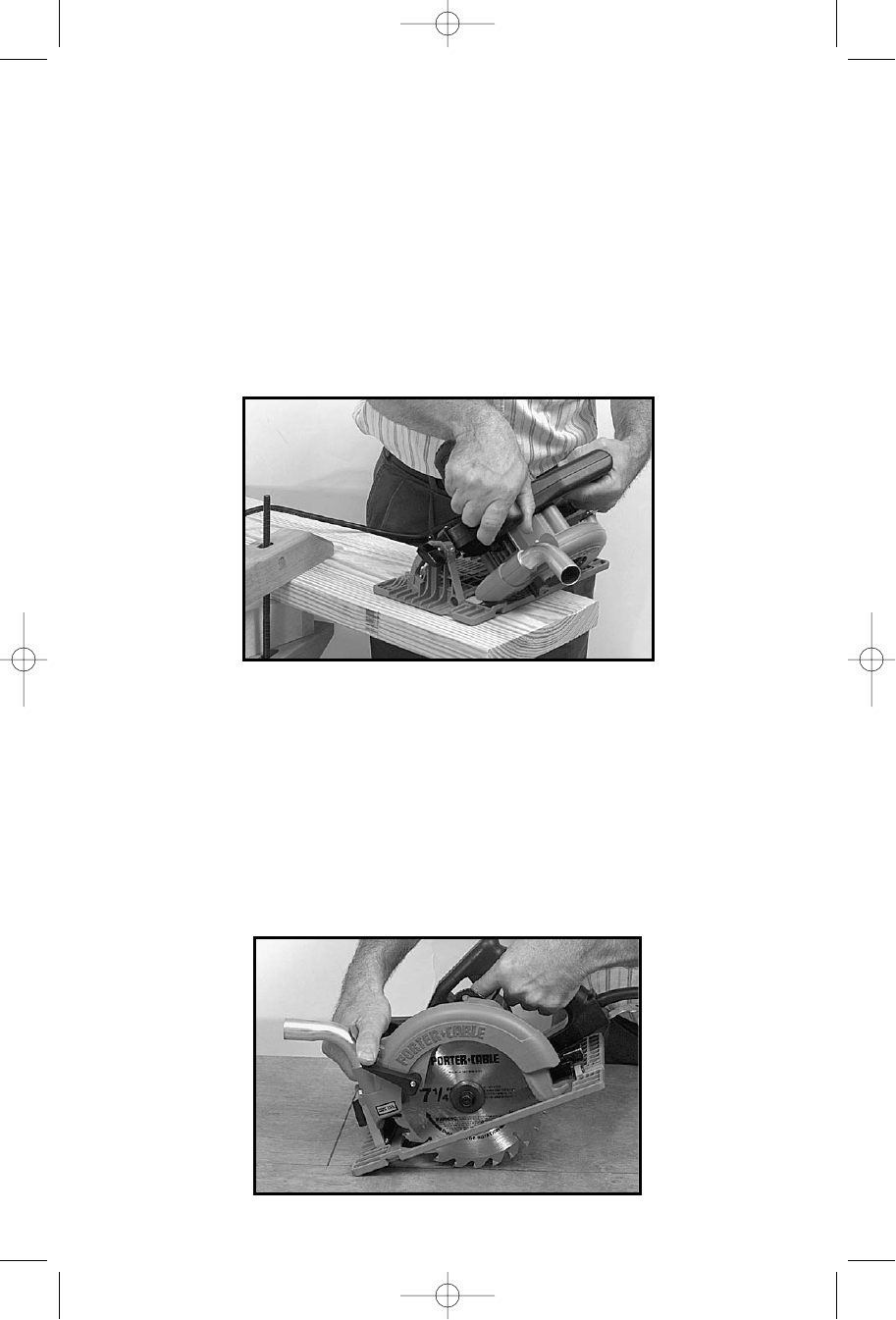

Fig. 16
Fig. 17
