Super Finish 23 PLUS
GB
DESCRIPTION OF UNIT
3.6 TECHNICAL DATA
Voltage : 110 V AC, 50 Hz
Fuses : 16 A time-lag
Unit connecting line : 6 m long, 3 x 1.5 mm²
Max. current consumption: 14.4 A
Degree of protection : IP 44
Rated input of device: 1.3 kW
Max. operating pressure : 25 MPa (250 bar)
Max. volume ow : 2.6 l/min
Volume ow at 12 MPa
(120 bar) with water : 2.3 l/min
Max. temperature of the
coating material : 43 °C
Max. viscosity : 20,000 mPas
Empty weight
Model including carriage:
Model on frame:
29 kg
24 kg
Hydraulic oil lling
quantity :
Hydraulics housing
Gears
0.88 liter
0.05 liter
Max. vibration at the spraygun : lower than 2.5 m/s²
Max. sound pressure level: 74 dB (A)*
*Place of measurement: 1 m distance from unit and 1.60
m above oor, 12 MPa (120 bar) operating pressure,
reverberant oor

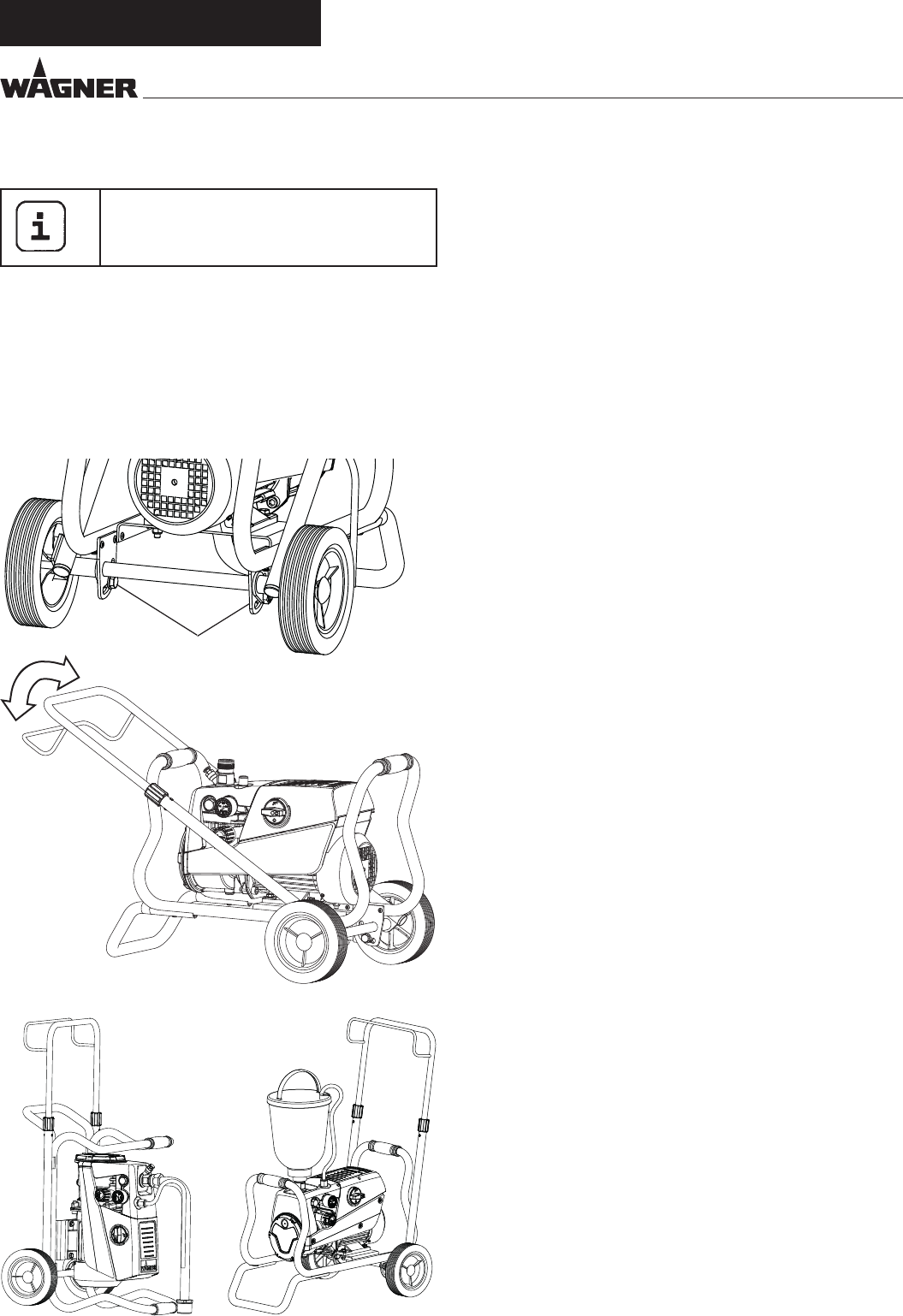

3.5 TROLLEY BACKFITTING
Before start with the backtting, pull of main
plug of socket, disassemble suction system
and high pressure hose
When changing between the top container and the suction
system, the carriage needs to be altered.
1. Unscrew the screws (pos. 1) with the attached wrench (17
mm).
2. Tilt the shaft and align the Super Finish 23 PLUS in the
required position:
a) Operate with suction system
b) Operate with top container
3. Re-tighten the screws.
1
a) b)
