LOADING SINGLE SHEETS

This

sectionwilltakeyouthroughtheproceduresforloadingsinglesheets

of paper.

If youareusingtheoptionalautomaticsheetfeeder(SF-10DN),referto the

ASF instructionbooklet.

Automaticloading

Single sheets can be loaded manually with the power off, or automatically

with the power on. We will start the easy way with automatic loading.

1. Place the paper guide in position by inserting the tabs, located on the

bottomof the assembly,intothe slotson the rearcoverof theprinter.

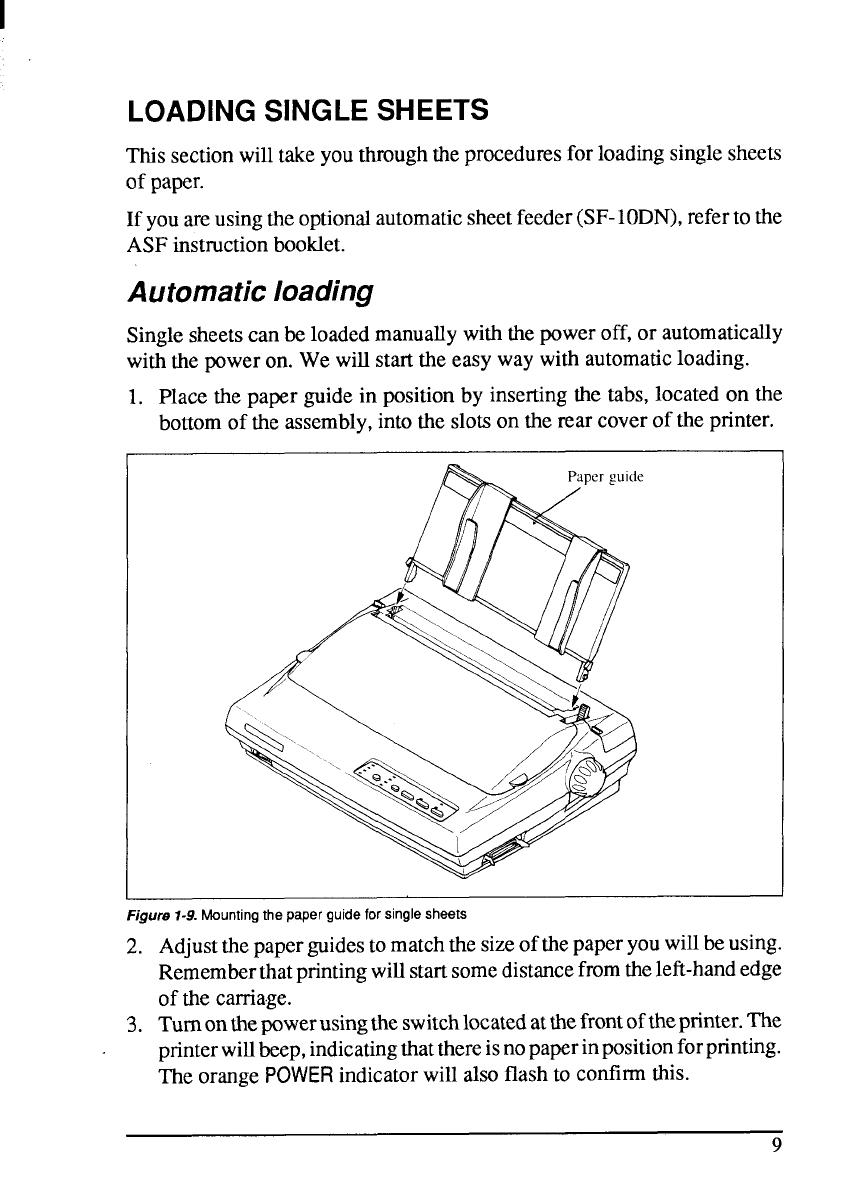

Figure1-9.Mounting the paper guide for single sheets

2. Adjustthepaperguidestomatchthe sizeofthepaperyou willbeusing.

Rememberthatprintingwillstartsomedistancefromtheleft-handedge

of the carriage.

3. Turnonthepowerusingtheswitchlocatedatthefrontoftheprinter. The

printerwillbeep,indicatingthatthereisnopaperinpositionforpnnting.

The orange

POWERindicatorwillalsoflashto confhn this.
