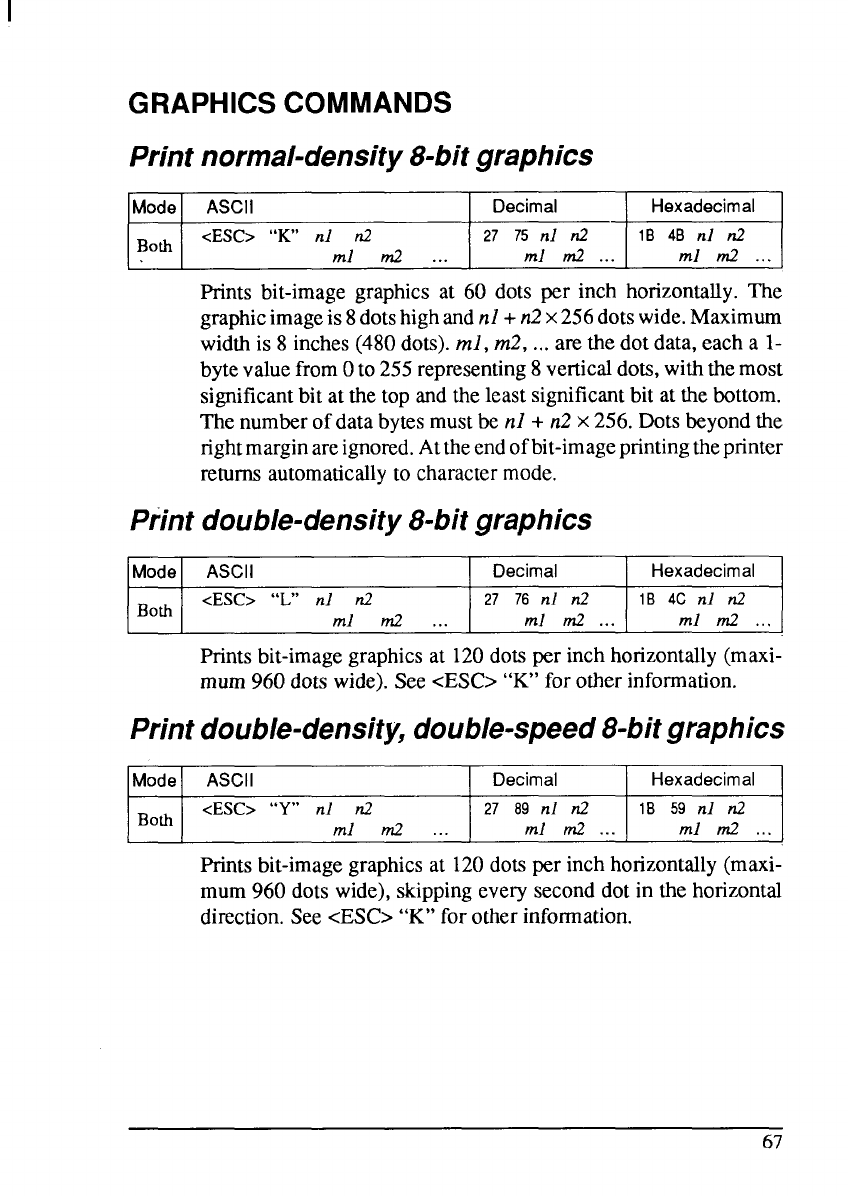

GRAPHICS COMMANDS
Print normal-density8-bitgraphics
Mode ASCII Decimal
Hexadecimal
Both
<ESC> “K” nl n2 27 75 nl n2
10 40
d d
ml d ...
ml d ... ml d ...
Prints bit-imagegraphicsat 60 dots per inch horizontally.The
graphicimageis8dotshighandrd +n2x
256 dotswide.Maximum
widthis 8 inches(480dots).ml, m2,... arethe dot data,eacha 1-
bytevaluefromOto 255representing8verticaldots,withthemost
significantbit at thetop andthe leastsignificantbit atthebottom.
Thenumberofdatabytesmustbe nl + n2
x 256. Dotsbeyondthe
rightmarginareignored.Attheendofbit-imageprintingtheprinter
returnsautomaticallyto charactermode.
Print double-density8-bitgraphics
Mode ASCII Decimal
Hexadecimal
Both
<ESC> “L” nl n2 27 76 nl n2
IB 4C nl d
ml m2 ... ml d ...
ml d ...
Printsbit-imagegraphicsat 120dotsper inchhorizontally(maxi-
mum960 dotswide).See cESC> “K”for otherinformation.
Printdouble-density,double-speed8-bitgraphics
Mode ASCII Decimal
Hexadecimal
Both
<ESC> “Y” nl n2
27 89
nl d
IB 59 nl d
ml m.2 .
ml d ... ml d ...
Printsbit-imagegraphicsat 120dotsper inchhorizontally(maxi-
mum960 dotswide),skippingeveryseconddot in the horizontal
direction.See<ESC>“K”for otherinformation.
67
