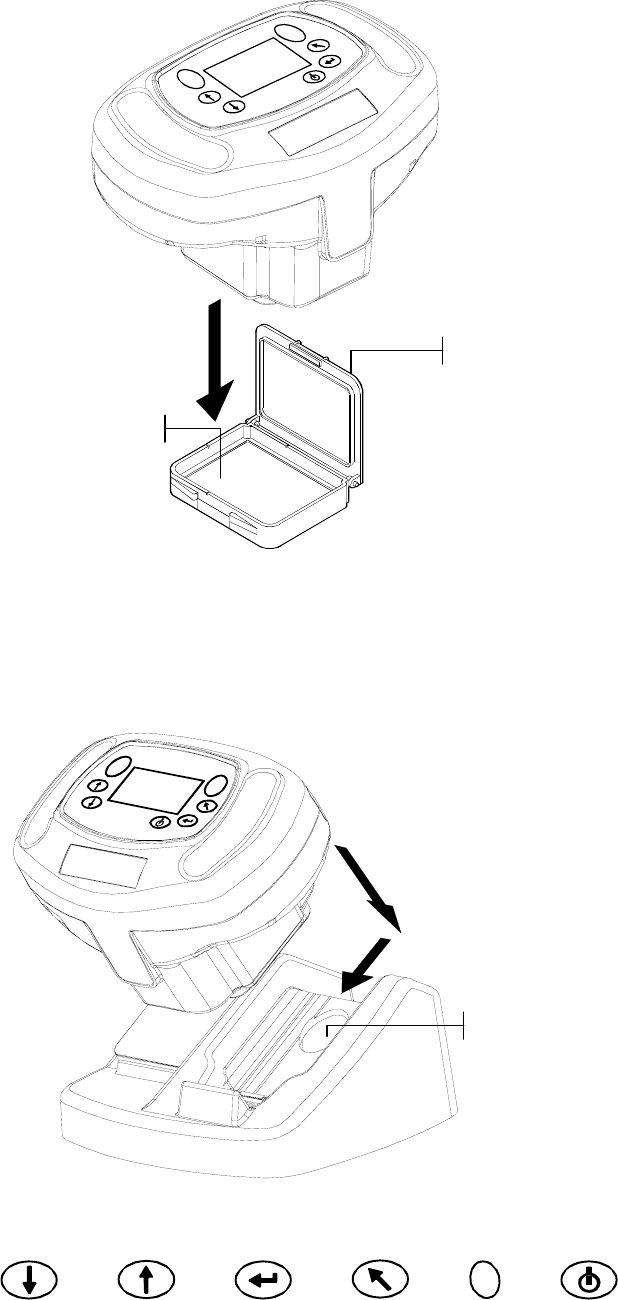

The white calibration reference tile is concealed in a case that has a hinged cover.
Position the sensor nose of the instrument in the case and take the measurements. Make
sure the calibration tile is positioned directly under the measurement aperture.
Zero Reflectance
The docking station is used to perform the zero reflectance measurement portion of the
calibration procedure. Place the instrument in its normal position on the station and the
take the measurements over the cutout beneath the sensor nose.
Calibration Tile
Hinged Cover
Zero Reflectance Port
