Page 6 For technical questions, please call 1-800-444-3353. SKU 68001
NOTICE
Clean the Sprayer IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the
Spray Gun. Warranty void if sprayer is not properly cleaned immediately after every use.
Grounding
TO PREVENT ELECTRIC SHOCK AND
DEATH FROM INCORRECT
GROUNDING WIRE CONNECTION:
Check with a qualied electrician if you are
in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the
sprayer. Never remove the grounding prong from the
plug. Do not use the sprayer if the power cord or plug
is damaged. If damaged, have it repaired by a service
facility before use. If the plug will not t the outlet,
have a proper outlet installed by a qualied electrician.
Grounded Sprayers:
Sprayers With Three Prong Plugs

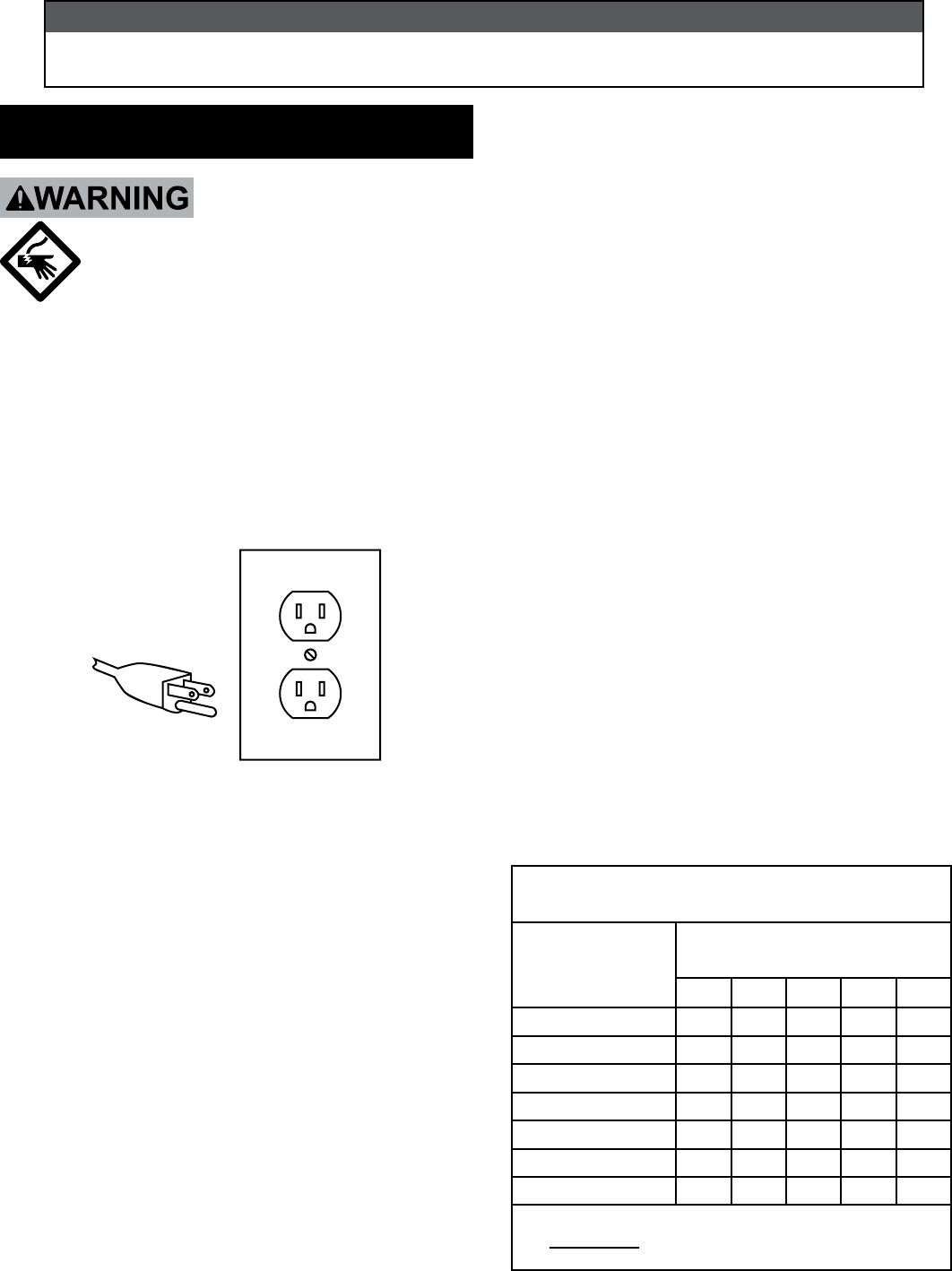

3-Prong Plug and Outlet
1. Sprayers marked with “Grounding Required” have a
three wire cord and three prong grounding plug. The
plug must be connected to a properly grounded outlet.
If the sprayer should electrically malfunction or break
down, grounding provides a low resistance path to
carry electricity away from the user, reducing the risk
of electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding system
in the sprayer. The green wire in the cord must be
the only wire connected to the sprayer’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)
3. The sprayer must be plugged into an appropriate
outlet, properly installed and grounded in accordance
with all codes and ordinances. The plug and
outlet should look like those in the preceding
illustration. (See 3-Prong Plug and Outlet.)
Extension Cords
1. Grounded sprayers require a three
wire extension cord. Double Insulated sprayers
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you
must use a heavier gauge extension cord. Using
extension cords with inadequately sized wire causes
a serious drop in voltage, resulting in loss of power
and possible sprayer damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one sprayer, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the sufx “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualied electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’ 100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A
* Based on limiting the line volt-
age drop to ve volts at 150% of
the rated amperes.
