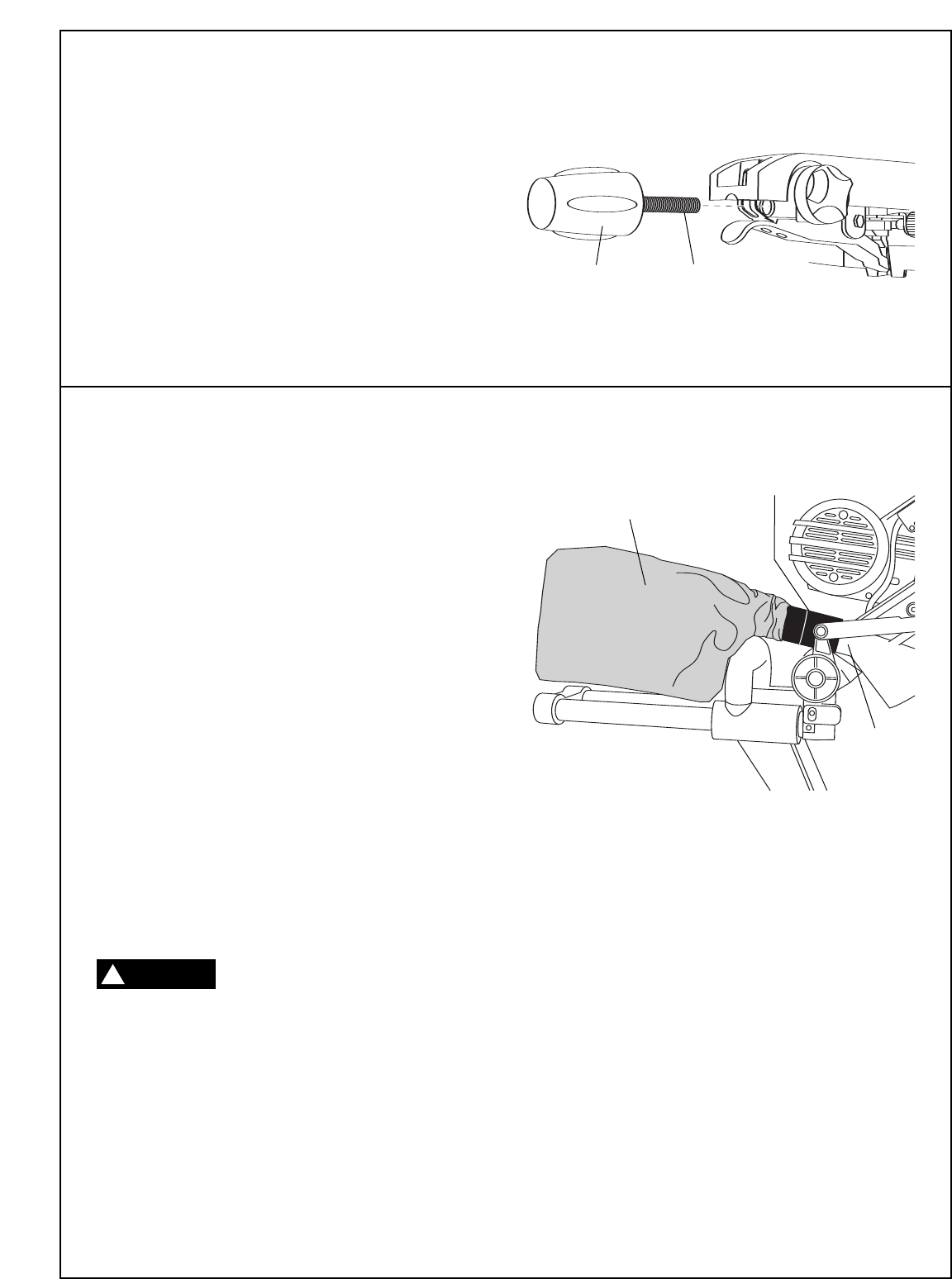

Attaching Miter Lock Knob
Locate the miter gauge lock knob from among the
loose parts, and thread shaft into miter detent assem-
bly as shown in illustration.
Assembly (continued)
12.
Miter Gauge
Lock Knob
Shaft
Figure: Miter Lock Knob
Assembling Dust Elbow
And Dust Bag
1. With the miter arm locked in the down position,
push the dust elbow onto the dust port. Push the
dust bag onto the elbow and rotate both to desired
position.
2. Position dust chute/bag so that it does not interfere
with the tool during the cutting operation for all
miter/bevel settings. Make sure dust bag does not
interfere with the slide rails during slide cutting.
3. The dust bag requires emptying when full of
sawdust. Empty it frequently and after completion
of sawing. Carefully remove dust bag from dust
elbow. Empty dust bag in proper trash
bin by unzipping the bag. Be extremely careful of
dust disposed, materials in fine particle form may
be explosive. Do not throw sawdust on an open
fire. Spontaneous combustion, may in time,
result from mixture of oil or water with dust
particles.
NOTE: The dust port accepts the Bosch VAC004
Vacuum Hose Adapter, which allows connection to a
Bosch 35mm vacuum hose.
When sawing chemically pressure
treated lumber
, paint that may be
lead based, or any other materials that may contain
carcinogens, use special precautions. A suitable res-
pirator must be worn by all personnel entering the
work area. W
ork area should be sealed by plastic
sheeting and persons not protected should be kept
out until work area is thoroughly cleaned.
WARNING
!
Dust Elbow
Dust Bag
Dust
Port
Figure: Dust Elbow and Dust Bag
