SKU 93218 For technical questions, please call 1-800-444-3353. Page 11
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 15
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
NOTE:
For additional information regarding the parts listed in the
following pages, refer to the Assembly Diagram on page 16.
WARNING! Always make sure the Power Switch (20) of the Masonry Saw is
in its “OFF” position and the tool is unplugged from its electrical outlet prior to
assembling the tool, adding any accessories, or making adjustments to the tool.
To Install The Saw Blade:
1. Unscrew and remove the two Nuts (9). Then, remove the Front Blade Guard
(11) to expose the Hex Set Screw (10), Inner Flange (18) and Motor Spindle.
(See Figure F.)
2. Unscrew and remove the Hex Set Screw (10) and Outer Flange (12), and check
to make sure the Inner Flange (18) is seated properly on the Motor Spindle.
(See Figure F.)
3. Using heavy work gloves to prevent accidental cuts to the hands and fingers,
insert the Saw Blade (15) onto the Motor Spindle. IMPORTANT: Make sure
the arrow on the Saw Blade points in the same direction as the arrow
shown on the Front Blade Guard (11). (See Figure F.)
HEX SET SCREW (10)
INNER FLANGE (18)
MOTOR SPINDLE
OUTER FLANGE (12)
SAW BLADE (15)
FRONT BLADE GUARD (11)
NUT (9)
NUT (9)

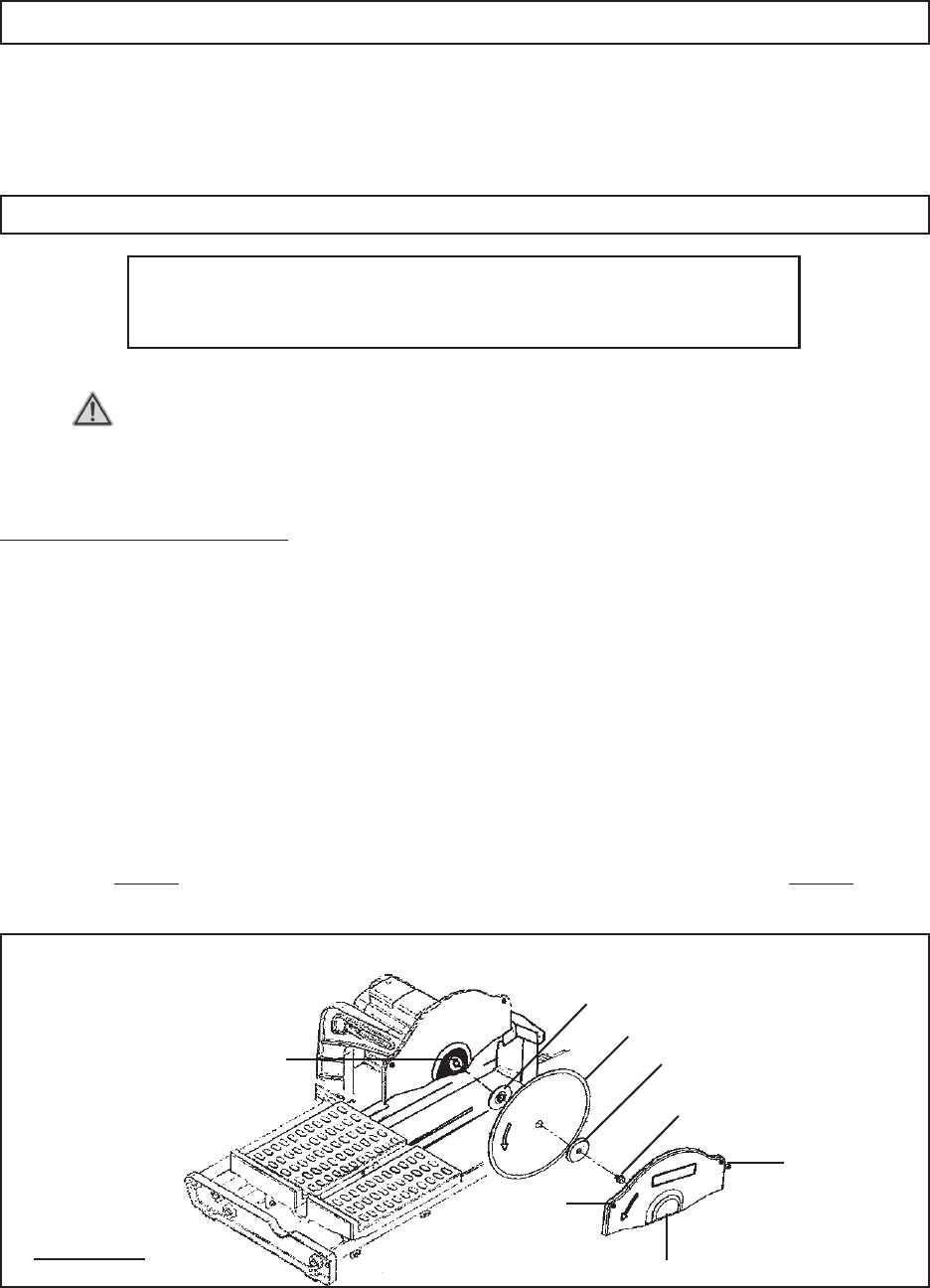

FIGURE F
