Wall-Mounting
The Cisco 1700 router can be wall-mounted using two number 6, 3/4-inch screws
and the molded mounting brackets on the bottom of the hub. You must provide the
screws. We recommend using pan-head or round-head screws.

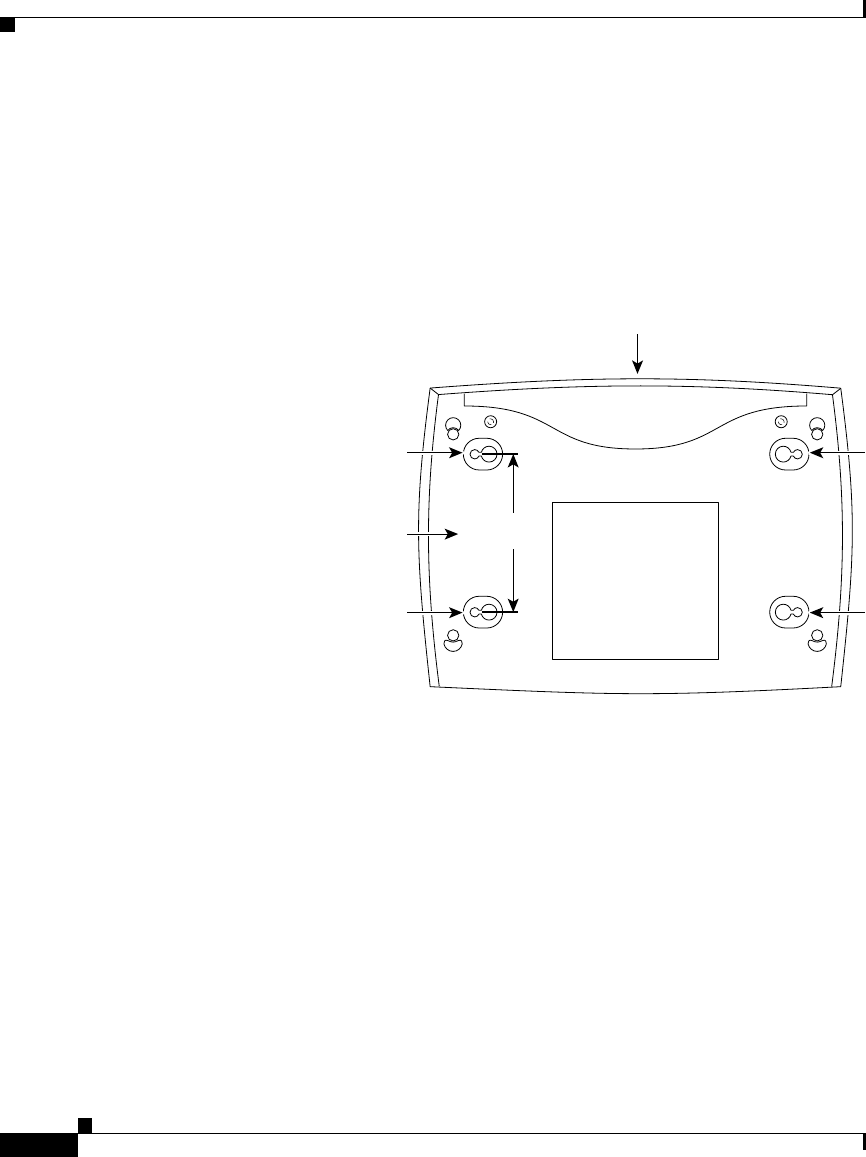

Figure 2-7 Wall-Mount Brackets—Bottom of Router
To mount the router on a wall or other surface:
Step 1 Install the two screws 3.75 inches (9.52 centimeters)
horizontally apart on a wall or other vertical surface.
The screws should protrude 0.25 inches (0.64
centimeters) from the surface of the wall.
Front panel of router
12016
3.75"
(9.52 cm)
Mounting
bracket
Bottom
of router
Mounting
bracket
