Appendix C Installing and Upgrading Router Memory
C-4
Cisco 1700 Router Hardware Installation Guide
78-5405-03
Locating Memory
Figure C-2 shows where to install DIMMs and mini-Flash modules on the router
motherboard.

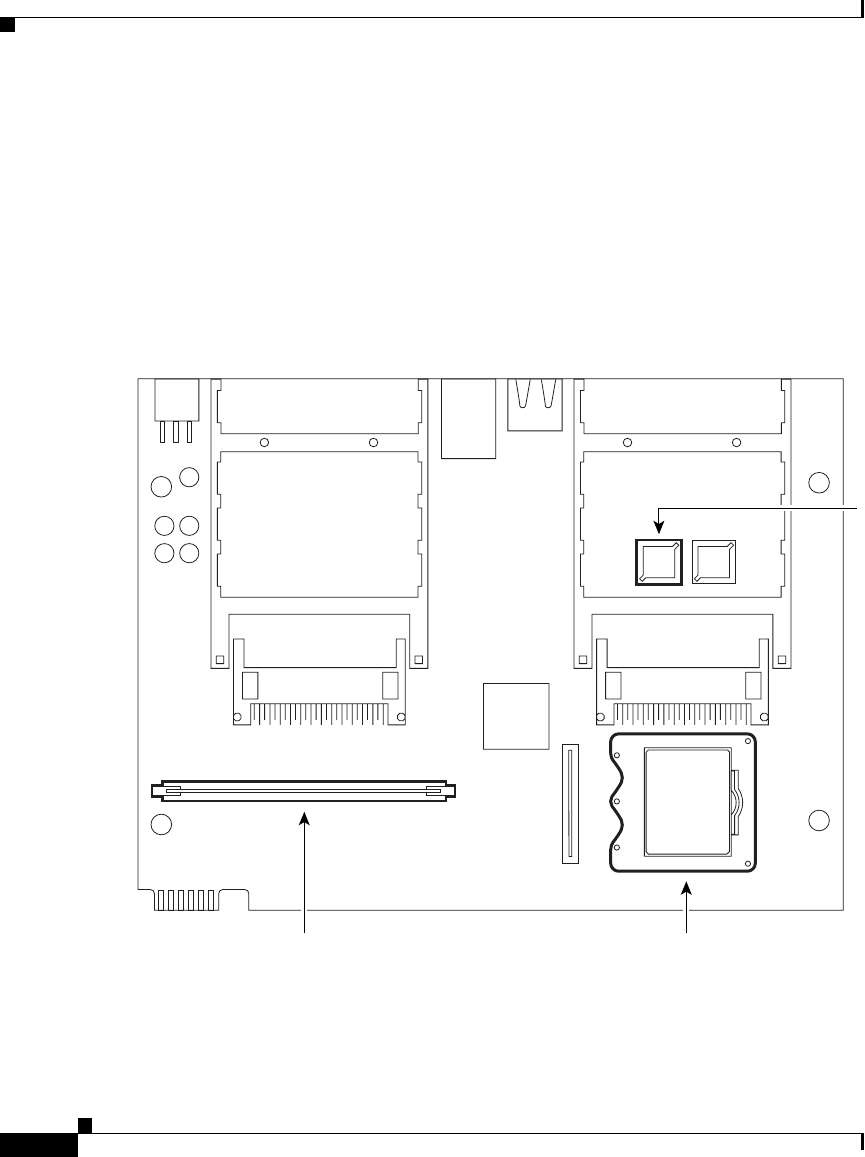

Figure C-2 Cisco 1700 Motherboard—Memory Locations
DIMM slot
12610
WAN interface card slot
Rear panel of router
Mini-Flash module slot
B
WAN interface card slot
