8. Depress the Nose (40) against the workpiece and squeeze the Trigger (58). The
tool must cycle (fire) only once. Release the Trigger and squeeze it again.
The tool must not cycle (fire). With the Trigger held, carefully lift the Nailer and
press it against the workpiece again. The tool must not cycle (fire). If it fails to
perform in the manner explained in bold, have it repaired by a qualified service
technician.
LOADING NAILS
WARNING: Always wear ANSI approved impact safety goggles
when reloading or performing any other maintenance on this
tool. Other people in the work area must also wear ANSI approved
impact safety goggles.
WARNING: Make sure the Nailer is not attached to the air hose
when loading the tool.
SKU 93760 For technical questions, please call 1-800-444-3353 PAGE 7
1. Pull the Feeder Shoe (71) all the way to the rear until it latches.
2. Orient a strip of Nails (86, 87) with points down and drop the Nails into the
Magazine (73).
3. Slide the Nails (86, 87) forward in the Magazine (73). The Magazine will hold 90
Nails.
4. Pull the Feeder Shoe (71) backward, and then press the Lock (77) to allow the
Feeder Shoe to slide forward against the Nails (86, 87).

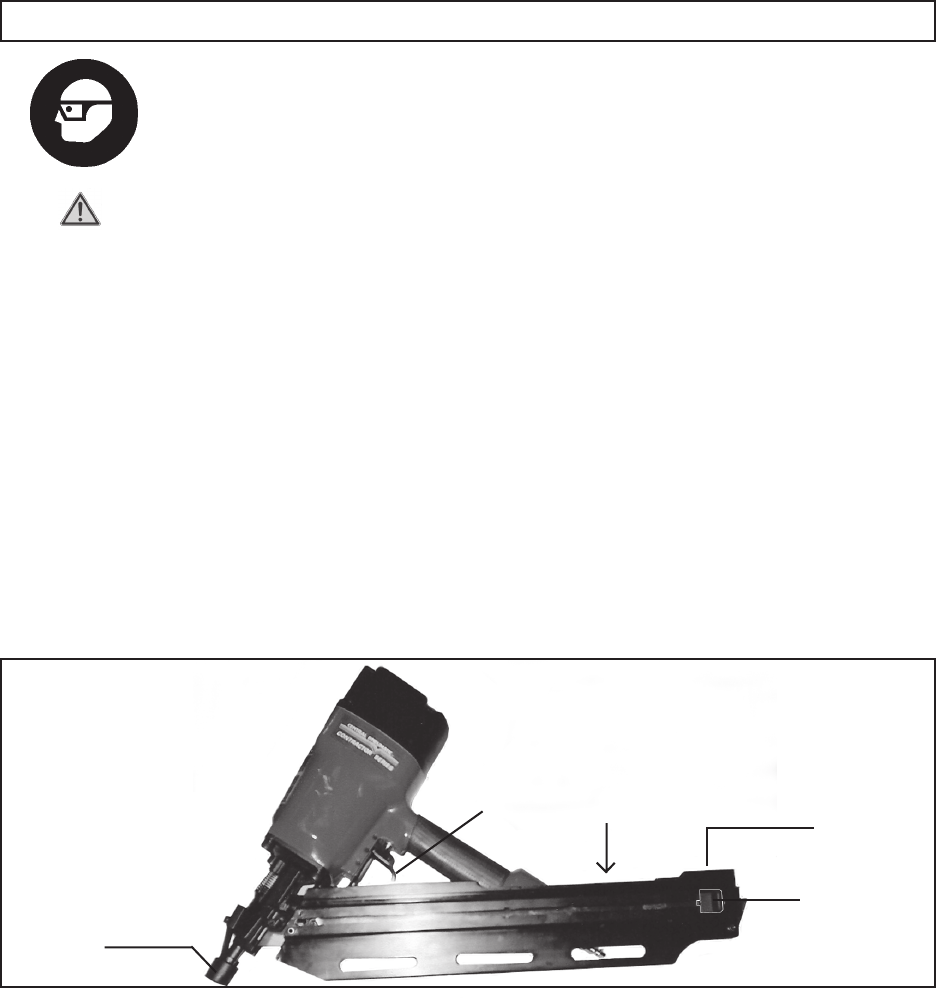

FEEDER SHOE
(71)
MAGAZINE
(73)
INSERT NAIL
HERE
NOSE
(40)
TRIGGER
(58)
Note: This Nailer only uses 28
0
collated nails.
