SKU 93760 For technical questions, please call 1-800-444-3353 PAGE 9
Anytime any maintenance or repairs are done (including clearing jams), FIRST:
1. Disconnect the Nailer from its air supply.
2. Empty the Magazine Assembly (73) completely.
3. Attempt to fire the Nailer into a piece of scrap wood to ensure that it is
disconnected and is incapable of firing any Nails.
4. Always leave the Magazine Assembly (73) open during maintenance. The
Magazine is spring loaded, and may cause parts or a Nail to fly out of the Nailer.
CLEARING JAMS
1. Occasionally, a Nail may become jammed in the firing mechanism of the
Nailer, making the tool inoperable. To remove a jammed Nail, disconnect the
Nailer from its air supply. Empty the Magazine Assembly (73) completely of
Nails. Attempt to fire the Nailer into a piece of scrap wood to ensure it is
disconnected and is incapable of firing any Nails.
2. Use a pair of needle nose pliers to remove a jammed Nail
from the back of the
Nose (40)
. If a jammed Nail cannot be removed as described, it may be
necessary to disassemble the Magazine (73) as follows:
CAUTION: If you are not clear about how to remove and re-assemble the
Magazine (73) to clear a jammed Nail, have a qualified service technician perform
this procedure.
3. Remove the
two
Screws (35). (One Screw on each side of Magazine (73).
4. Remove the
two
Nuts (76).
5. Slide the Magazine (73) back, off of the Nose (40).
6. After clearing the jammed Nail, re-assemble in reverse order.

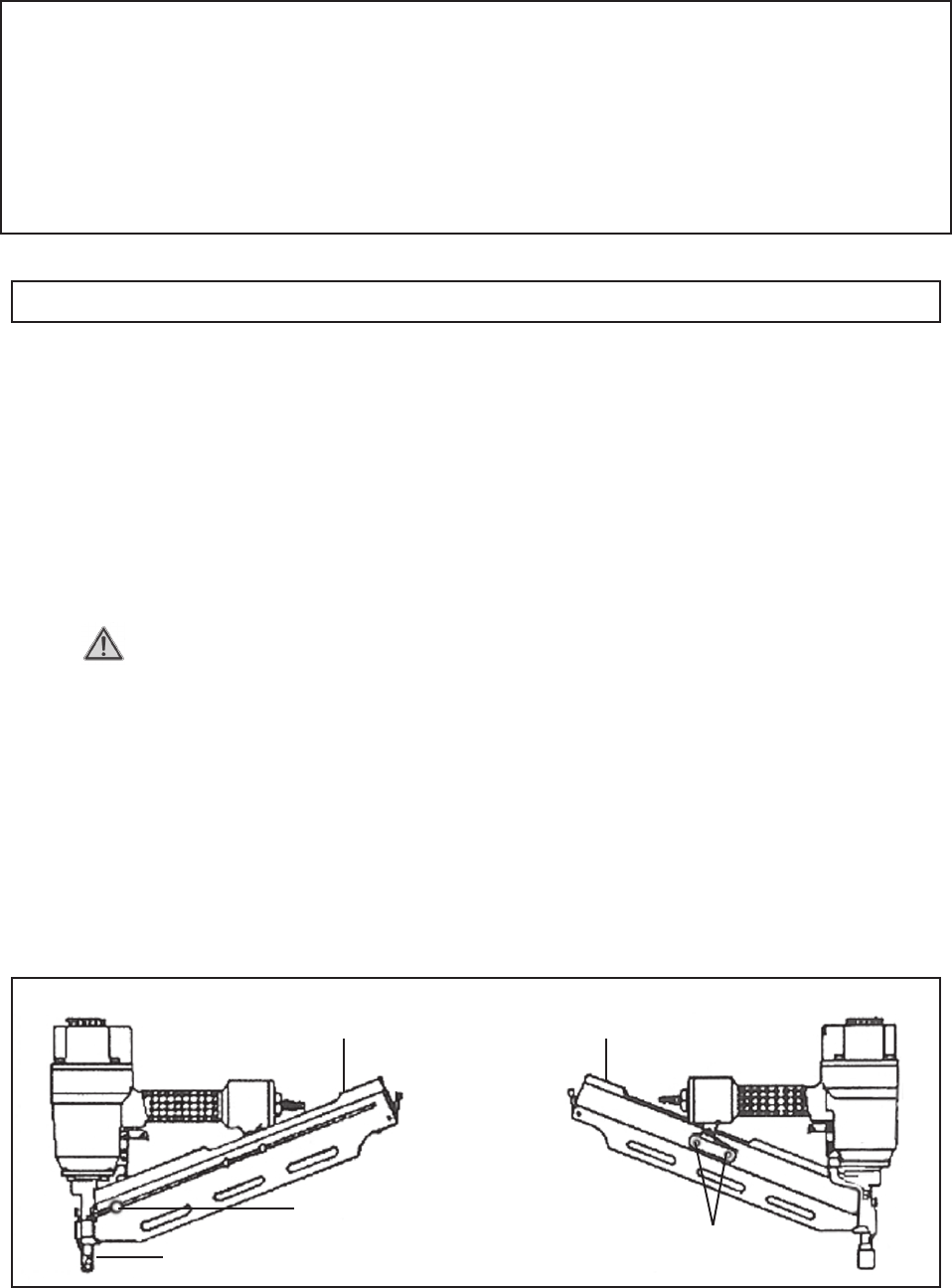

MAGAZINE (73) MAGAZINE (73)
NOSE (40)
SCREW
(35)
NUT
(76)
