OPERATING THE NAILER
1. Attach the Nailer to the air supply at the Quick Connector (85). Start your
compressor and check the pressure, making sure it is set at 90 PSI.
Do not exceed the maximum 125 PSI.
2. Rotate the Exhaust Cover (4) so that the exhaust air blast will be directed
away from the operator.
3. To fire, place the Nose (40) of the Nailer on the workpiece. The Nailer should not
fire if the Nose is not depressed. Once depressed, gently and briefly squeeze
the Trigger (58) once; one Nail will be fired.
4. Do not press the Nose (40) against the workpiece with extra force. Allow the tool
to do the work. Always allow the tool to recoil off the work surface.
5. When finished using the Nailer, always disconnect the tool from its air supply.
Empty the Magazine Assembly (73) completely of Nails. Attempt to fire the
Nailer into a piece of scrap wood to ensure it is disconnected and is incapable of
firing any Nails.
6. Make sure to store the Nailer in a clean, dry, safe location out of reach of children.

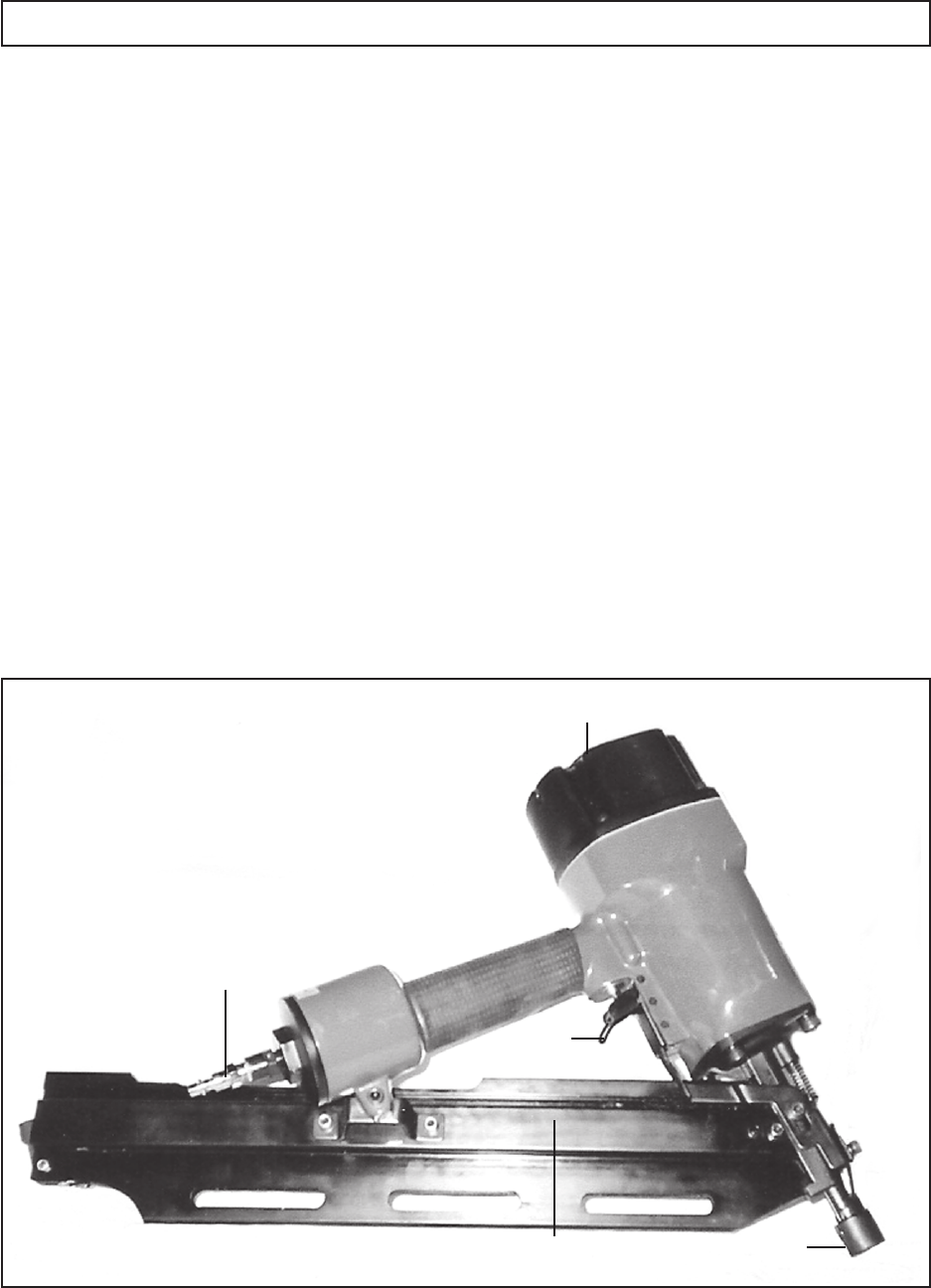

TRIGGER
(58)
NOSE
(40)
QUICK CONNECTOR
(85)
EXHAUST COVER
(4)
MAGAZINE
(73)
Rev 11/06
