Step 12: Flip the REVERSE VALVE (#20) to the “R” position as shown in Figure 5. This will
reverse the rotation of the drill, allowing you to back out your drill bit.

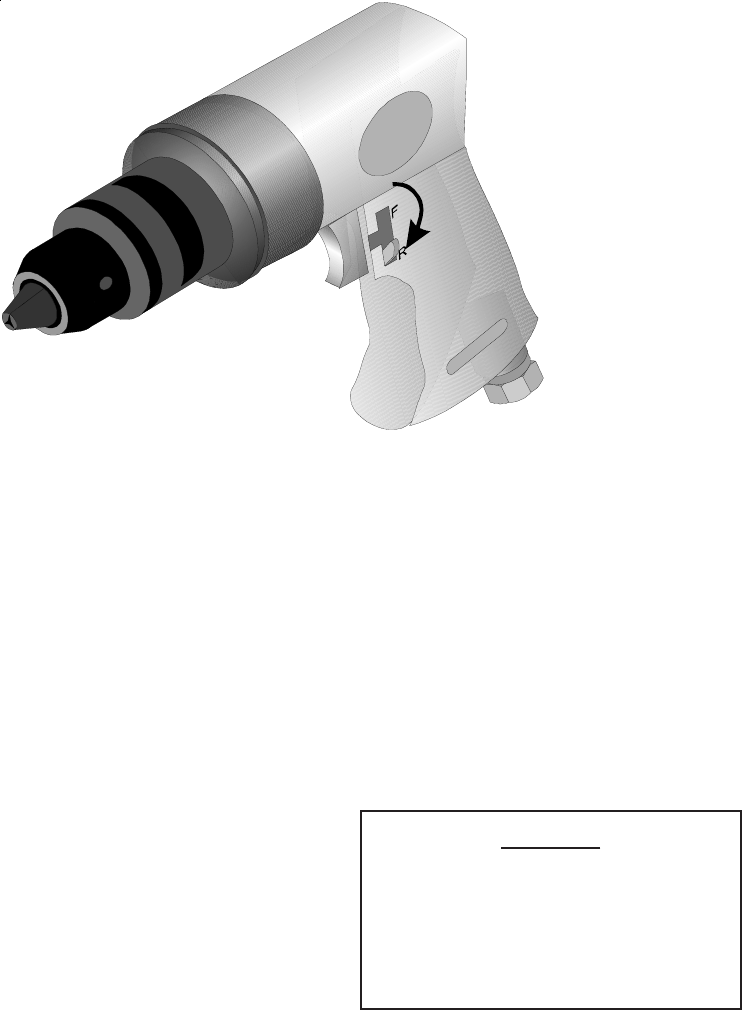

Figure 5 — Reversing the Rotation of the Drill Bit
Step 13: Lightly press the TRIGGER until the drill bit spins free. Remove the Air Drill.
Step 14: Flip the REVERSE VALVE back to the “F” position.
MAINTENANCE
It is recommended that you use an Airline Oiler with your Air Drill. If you do not use an Airline
Oiler, follow the steps below to maintain and prolong the life of your tool.
Step 1: Disconnect the Air Drill from the air hose.
Step 2: Apply a few drops of PNEUMATIC TOOL OIL
through the air line before each use, or every
hour if used continuously.
Step 3: Apply a few drops of oil to the TRIGGER (#18).
Work the TRIGGER a few times to lubricate.
CAUTION
Do not use detergent oil or
additives as these lubricants will
cause accelerated wear to the
seals in the tool.
