Page 20SKU 97503 For technical questions, please call 1-800-444-3353.

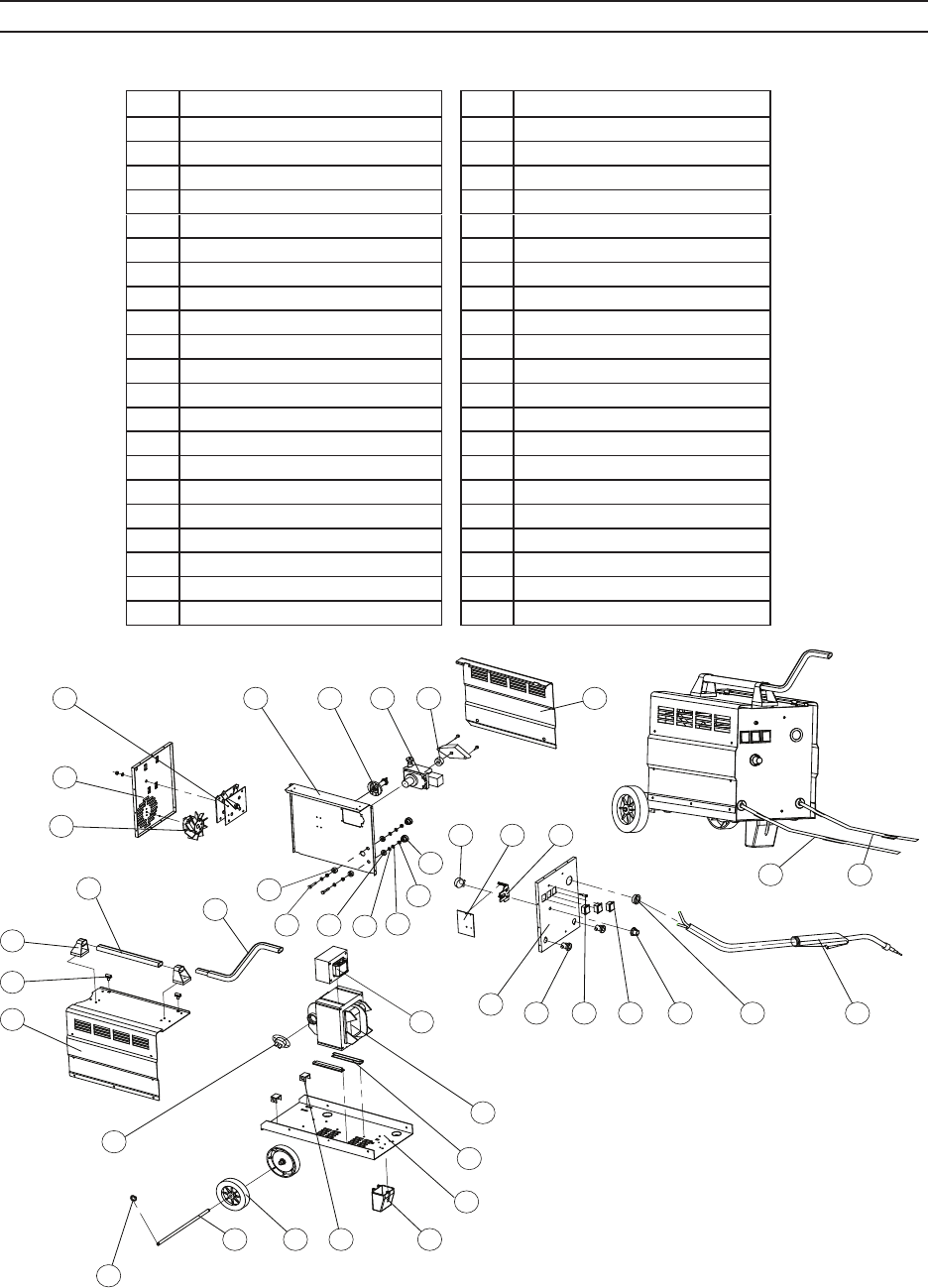

PARTS LIST AND ASSEMBLY DIAGRAM
PARTS LIST
Part
Description
1 Side Panel B
2 Hinge
3 Handle Socket
4 Straight Handle
5 Fan
6 Back Panel
7 Rectifier Rack
8
Temperature Controller
9
10
11
12
13
14
15
16
17
18
19
20
21
Clap Panel
Wire Spool Axle
Wire Feed Mechanism
Wire Feed Wheel
Side Panel A
Power Cord
Ground Cable With Clamp
Welding Torch / Cable
Cover
Wire Speed Knob
Switch
Overload Light
Cable Nib
Part Description
22
Front Panel
23
Filter Reactor
24
Main Transformer
25
Transformer Carriage
26
Bottom Plate
27
Plastic Foot
28
Axle Bracket
29
Wheel, Plastic
30
Axle
31 Control Circuit Board Bracket
32 Control Circuit Board
33 Potentiometer
34 Knob
35 Nut, Copper, M6
36 Washer, Spring, 6
37 Washer, Copper, Plain,6
38 Washer, Insulating, 1
39 Screw, Copper, M6X35
40 Washer, Insulating, 2
41 Brace
42 Rings, 8
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
2728
29
31
32
33
34
38
35
36
37
39
40
21
30
41
42
