3.
Safety Nosepiece (42)
Magazine (79)
Trigger (59)
Air Coupler (95)

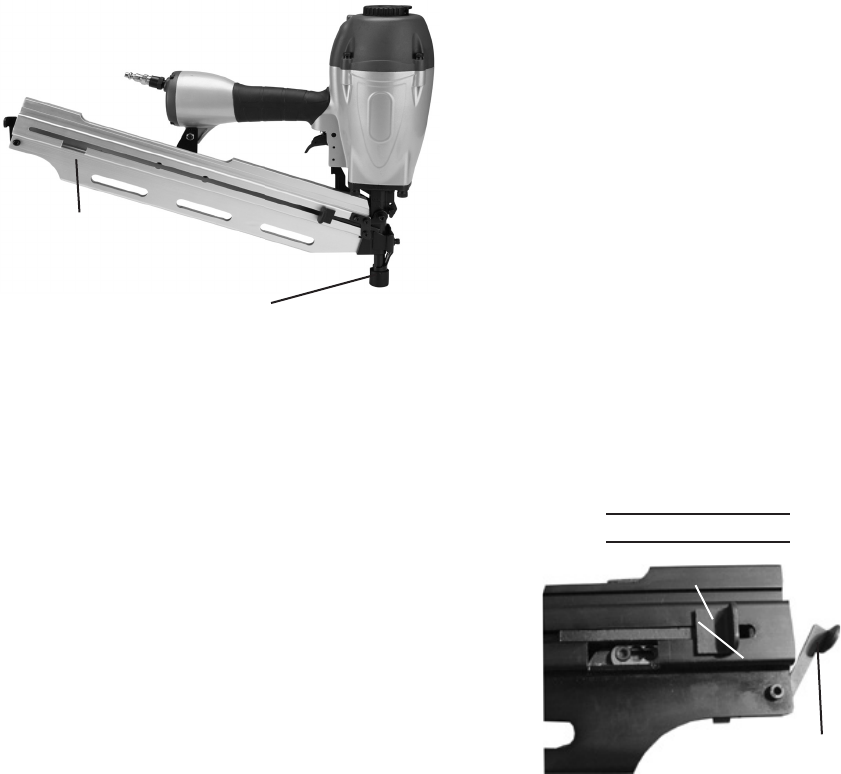

Figure 1
The Nailer should not re if Safety
Nosepiece (42) is not depressed
against the workpiece.
4. Make sure Trigger (59) and Safety
Nosepiece (42) move freely, with-
out sticking. Do not use nailer if
Trigger or Safety sticks.
5. Connect air supply to the Air Coupler
(95). Set the regulator at the recom-
mended 70 to 120 PSI.
6. Test by depressing Safety Nosepiece
(42) against the workpiece without
pulling the Trigger. The Tool must
not cycle (re). If it cycles (res),
stop immediately and have it repaired
by a qualied service technician.
7. Hold tool away or off of workpiece.
The Safety Nosepiece should return
to its original position. Squeeze
Trigger. The tool should not cycle
(re). If the tool res, stop immedi-
ately and have it repaired by a quali-
ed service technician.
8. Depress Safety Nosepiece against
workpiece and squeeze Trigger. The
tool must cycle (re) only once.
Release the Trigger and squeeze
it again. The tool must not cycle
(re). With the Trigger held, carefully
lift the Nailer and press it against the
workpiece again. The tool must not
cycle (re). If it fails to perform in
the manner explained in bold, have it
repaired by a qualied service techni-
cian.
WARNING! Disconnect the Nailer
from the air compressor whenever
loading or servicing.
WEAR ANSI-APPROVED IMPACT
SAFETY GOGGLES WHEN RE-
LOADING OR DOING ANY OTHER
MAINTENANCE ON NAILER. Other
people in work area must also
wear ANSI-approved safety gog-
gles.
Loading Nails
1.
Tab (75)
Lock (88)
Figure 2
Slide the Tab (75) back and the Lock
(88) will hold it in place. See Figure
2, above.
2. Load a stick of nails (not included)
into the top slot, making sure nail
heads are facing up.
3. Be Careful. When Lock is released,
the Tab will automatically and force-
fully slide forward. Keep your ngers
clear when releasing Lock.
4. Note: The Nailer may not work if
there are only a few nails left in the
tool. If there are only a few nails
remaining, simply load another strip
