1. Remove the Pinion Housing, Clutch, Field and
Wiring Harness, Clamp and Clutch Housing, as
instructed on pages 18 and 20 through 22.
2. See Fig. 16 and17. Disconnect the red wire from
the engine lead (B). Disconnect the black and
white wires from the field. Loosen the clamp (97).
Pull the wires carefully through the grommets (66)
before removing the engine. Remove the two
locknuts (111) and then pull the screws (14) out of
the base of the engine.
3. Lift the engine carefully and place it on a work
bench.
4. Skip ahead to Reassembly, page 24, step 1.
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.

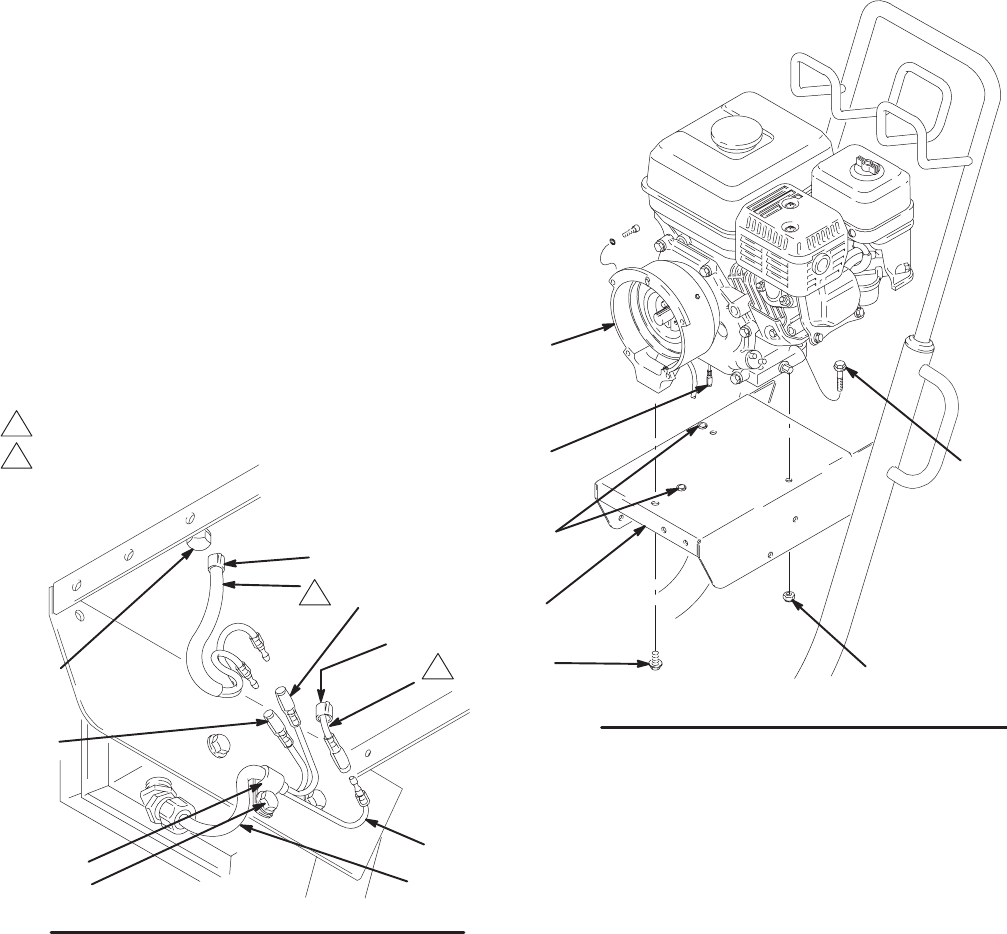

03478A
