— 16 —
English
MAINTENANCE
NOTE:
The information contained in this Manual is designed to assist you in the safe maintenance of the Nailer.
Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.
MAINTENANCE AND INSPECTION
Read section titled “SAFETY” (pages 4 – 7).
WARNING
Disconnect air hose and remove all nails from
Nailer when:
1) doing maintenance and inspection; and
2) clearing a jam.

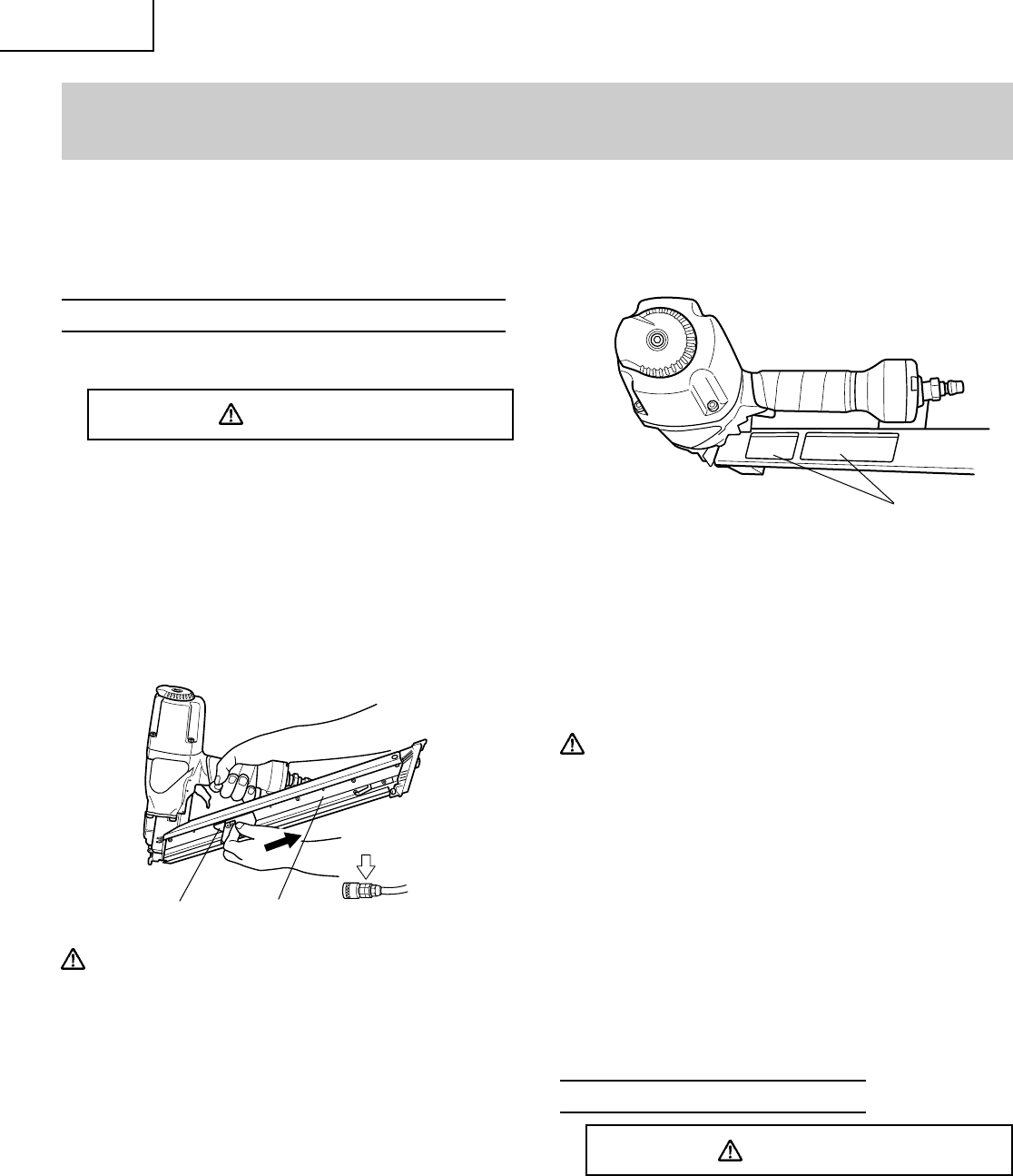

1. Inspecting the magazine
1 DISCONNECT AIR HOSE.
2 Clean the magazine. Remove plastic tips or wooden
tips which may have accumulated in the magazine.
Lubricate it with Hitachi pneumatic tool lubricant.
CAUTION
Check that the nail feeder slides smoothly by pulling
it with finger.
If not smooth, nails can be driven at an irregular angle
and hurt someone.
2. Storing
When not in use for an extended period, apply a thin
coat of the lubricant to the steel parts to avoid rust.
Do not store the Nailer in a cold weather environment.
Keep the Nailer in a warm area.
When not in use, the Nailer should be stored in a
warm and dry place.
Keep out of reach children.
3. WARNING LABEL
Change the WARNING LABEL if missing or damaged.
A new WARNING LABEL is available from a Hitachi
authorized service center.
4. Maintenance chart (See page 17)
5. Operator troubleshooting (See page 17)
6. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modification and inspection of Hitachi Power
Tools must be carried out by an Hitachi Authorized
Service Center.
This Parts List will be helpful if presented with the
tool to the Hitachi Authorized Service Center when
requesting repair or other maintenance. In the
operation and maintenance of power tools, the safety
regulations and standards prescribed in each country
must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and
modified to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or design)
may be changed without prior notice.
SERVICE AND REPAIRS
WARNING
Only service personnel trained by Hitachi,
distributor or employer shall repair the Nailer.
Use only parts supplied or recommended by
Hitachi for repair.
All quality Nailers will eventually require servicing or
replacement of parts because of wear from normal use.
NOTE:
Specifications are subject to change without any
obligation on the part of HITACHI.
Warning Label
Disconnect
air hose
Nail Feeder Magazine
1
