OM-355 Page 15

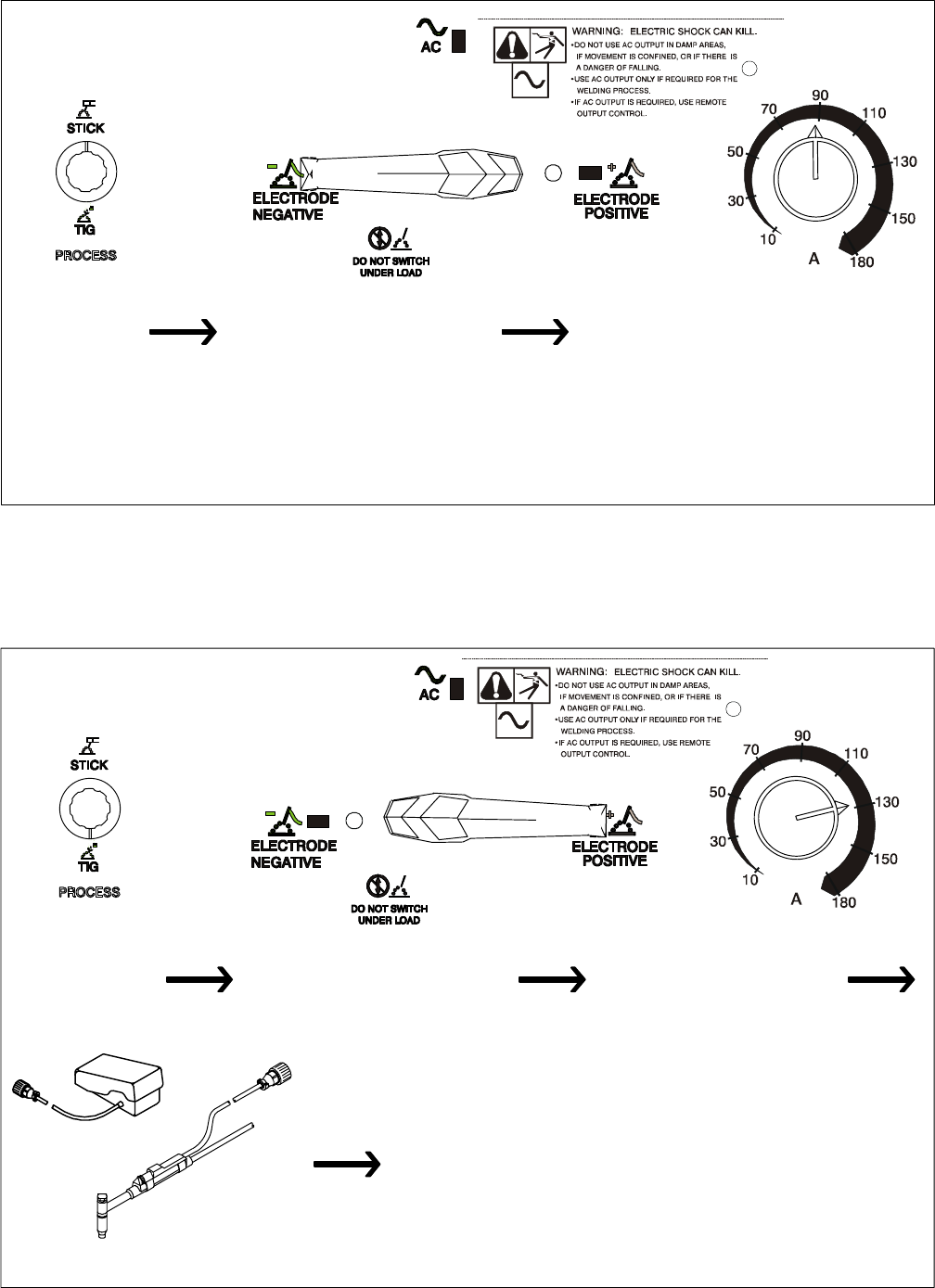

3-2. Example of Front Panel Amperage Control For Stick (SMAW) Welding
Select amperage.Select weld process. Select polarity.
In Example:
Remote weld amperage = 10–180 amps DC
NOTE: Remote amperage control is active whenever a
remote control is connected. If the remote device does not
include a means of controlling amperage through pin E, the
Amperage Adjustment control on the front panel remains active.
3-3. Example of Remote Amperage Control For TIG (GTAW) Welding
Select max amperageSelect weld process. Select polarity.
Connect remote control (see Section 3-4).
In Example:
For remote amperage control, front panel amperage control setting is the
maximum amperage available. Full range is 10–180 amps DC, but if front
panel amperage control is set at 130 amps, the range of remote
amperage control is 10 to 130 amps DC. NOTE: Remote amperage
control is active whenever a remote control is connected. If the
remote device does not include a means of controlling amperage through
pin E, the Amperage Adjustment control on the front panel remains active.
or
