18
3. Set blade 90º to table by turning blade tilting
handwheel (D, Figure 23) counterclockwise
as far as it will go. Do not force beyond stop.

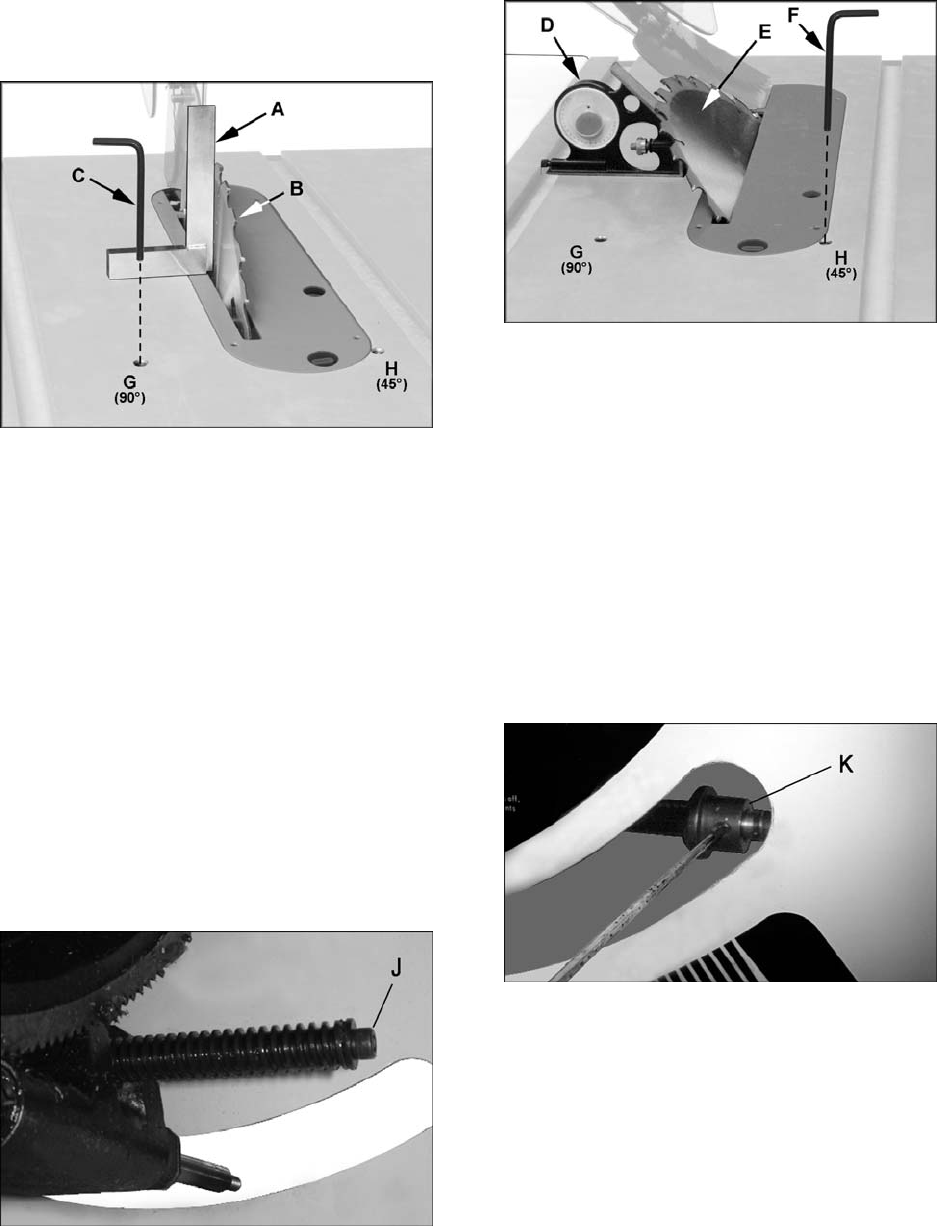

4. Place a square (A, Figure 24) on the table
and verify that blade (B, Figure 24) is at 90º
to table. Make sure that the square is not
touching a blade tooth.
Figure 24
If adjustment is required:
5. Back out the 90º adjust setscrew (G, Figure
24) counterclockwise one or two turns with
4mm hex key (C, Figure 24).
6. Turn blade tilting handwheel until blade is
exactly 90º.
7. Tighten the 90º adjust setscrew (G) until it
stops, but do not force.
8. Set blade at 45º to table by turning the blade
tilting handwheel clockwise (D, Figure 23) as
far as it will go. Do not force beyond stop.
NOTE: If establishing a firm 90° stop is still
unsuccessful, you may need to adjust the end
screw (J, Figure 24a) located on the tilting
leadscrew. The end screw is accessed by
removing plastic cap from hole on left side of
cabinet.
Figure 24a
9. Place a square (D, Figure 25) on the table
and verify that blade (E, Figure 25) is at 45º
to table. Make sure that the square is not
touching a blade tooth.
Figure 25
If adjustment is required:
10. Back out the 45º adjust setscrew (H, Figure
25) counter-clockwise one or two turns with
4mm hex key (F, Figure 20).
11. Turn blade tilt handwheel until blade is
exactly 45º.
12. Tighten the 45º adjust setscrew (H) until it
stops, but do not force.
NOTE: You may also need to verify the position
of the stop collar (K, Figure 25a), accessed
through front opening of cabinet. If adjustment is
required, loosen the set screws and position the
stop collar. Retighten set screws.
Figure 25a
Verify that blade tilt pointer (Figure 26) properly
indicates 45º or 0º (90º). If not, loosen screw
and adjust until pointer indicates correctly.
