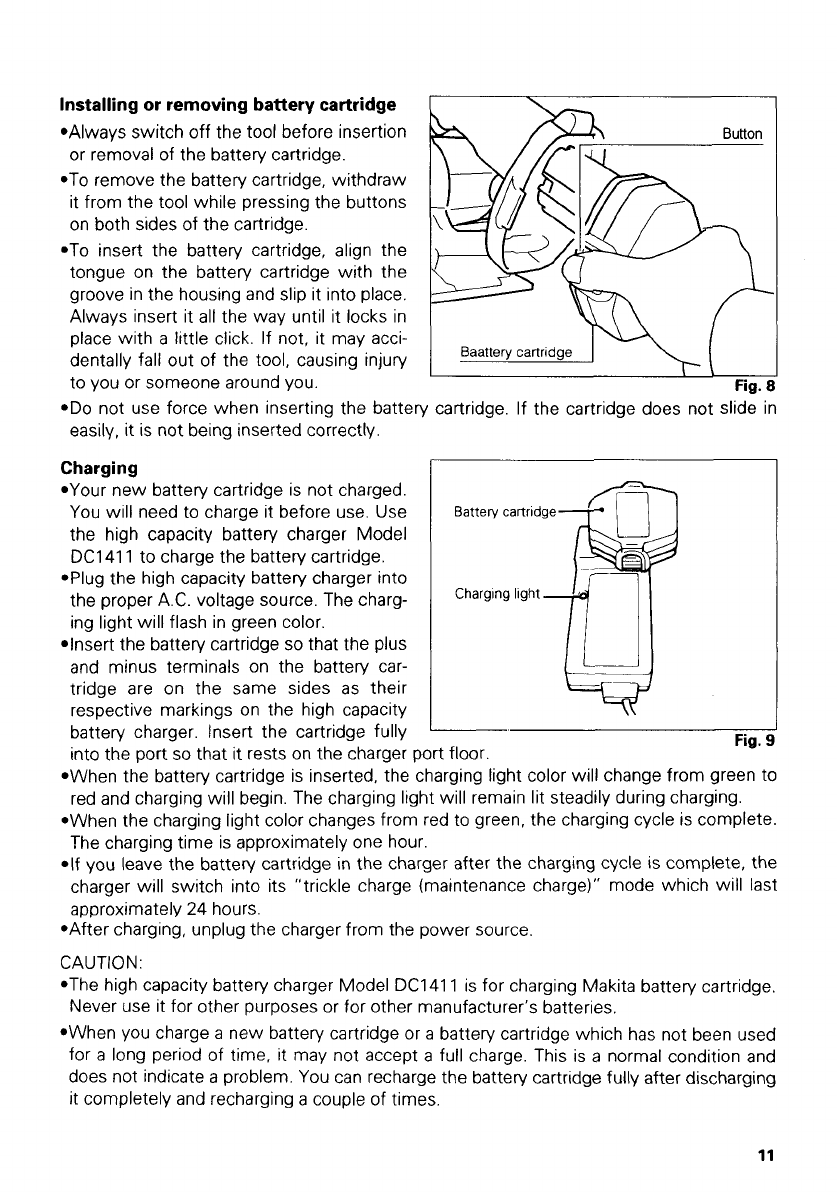

Installing or removing battery cartridge
*Always switch off the tool before insertion
or removal of the battery cartridge.
*To remove the battery cartridge, withdraw
it from the tool while pressing the buttons
on both sides of the cartridge.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip it into place.
Always insert it all the way until it locks in
place with
a
little click. If not, it may acci-
dentally fall out of the tool, causing injury
to you or someone around you.
easily,
it
is not being inserted correctly
Fig.
8
*Do not use force when inserting the battery cartridge.
If
the cartridge does not slide in
Charging
*Your new battery cartridge is not charged.
You will need to charge it before use. Use
the high capacity battery charger Model
DC1411 to charge the battery cartridge.
*Plug the high capacity battery charger into
the proper A.C. voltage source. The charg-
ing light will flash in green color.
*Insert the battery cartridge
so
that the plus
and minus terminals on the battery car-
tridge are on the same sides as their
respective markings on the high capacity
Battery cartridge
Charg'ng'lght
11
