*If
you charge a battery cartridge from
a
just-operated tool or
a
battery cartridge which has
been left in a location exposed to direct sunlight or heat for a long time, the charging light
may flash in red color. If this occurs, wait
for
a while. Charging will begin after the battery
cartridge cools. The battery cartridge will cool faster if you remove the battery cartridge
from the high capacity battery charger.
*If the charging light flashes alternately in green and red color,
a
problem exists and charg
ing
is
not possible. The terminals on the charger or battery cartridge are clogged with
dust or the battery cartridge is worn out or damaged.

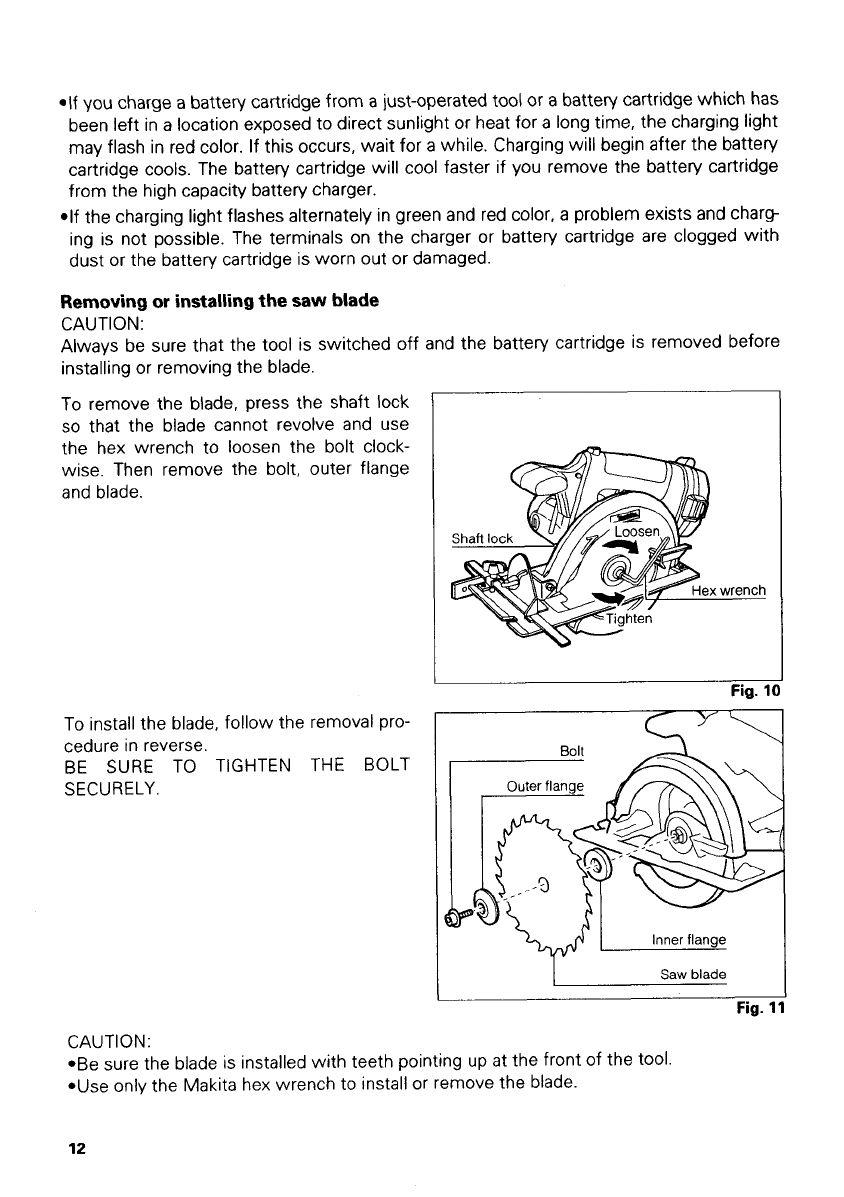

Removing
or
installing the saw blade
CAUTION:
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removing the blade.
To remove the blade, press the shaft lock
so
that the blade cannot revolve and use
the hex wrench to loosen the bolt clock-
wise. Then remove the bolt, outer flange
and blade.
To install the blade, follow the removal pro-
cedure in reverse.
BE
SURE
TO TIGHTEN
THE
BOLT
SECURELY.
:wrench
I
I
Fig.
10
Saw
blade
Fig.
11
CAUTl ON
:
*Be sure the blade
is
installed with teeth pointing up
at
the front of the tool
*Use only the Makita hex wrench to install or remove the blade.
12
