CAUTION:
After adjusting the depth of cut and bevel cutting angle, be sure to tighten the screw.

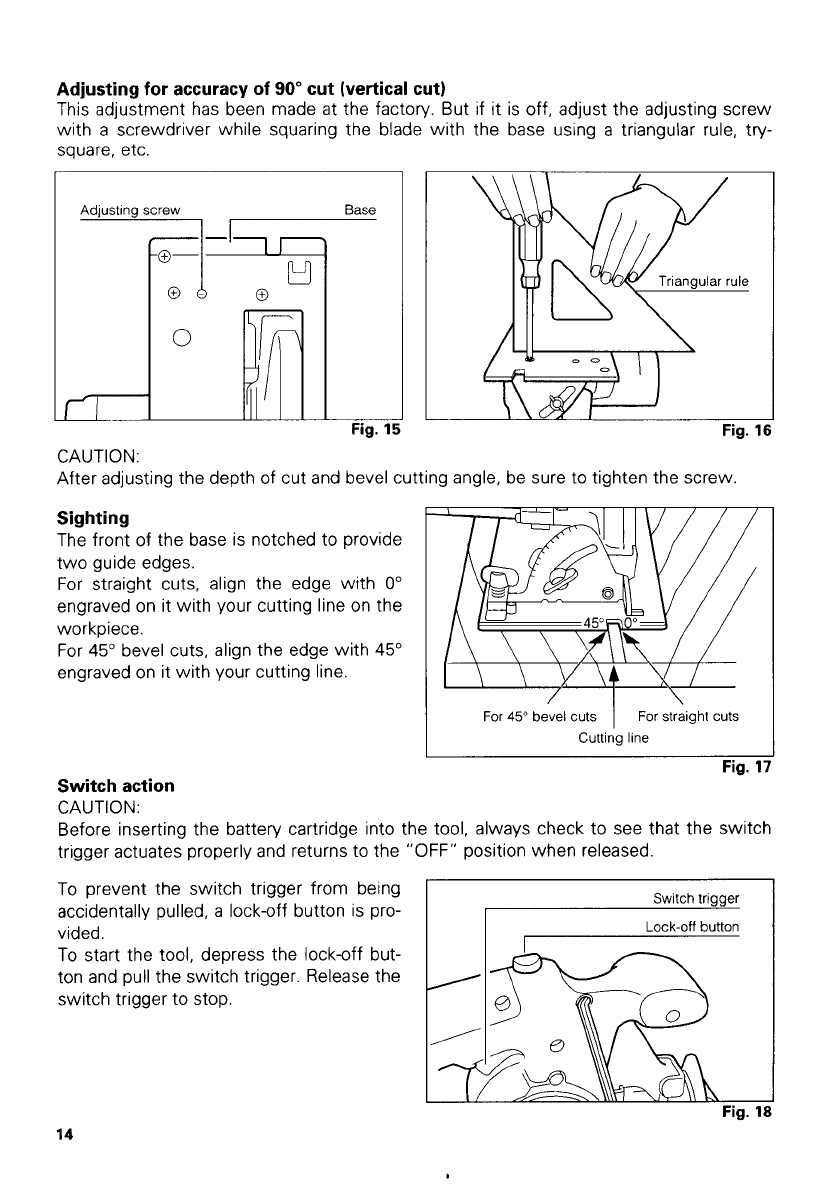

Sighting
The front
of
the base is notched to provide
two guide edges.
For straight cuts, align the edge with
0"
engraved on it with your cutting line on the
workpiece.
For
45"
bevel cuts, align the edge with 45"
engraved on it with your cutting line.
For
45"
bevel cuts
I
For straight
cuts
Cutting line
I
Fig.
17
Switch action
CAUTION:
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns to the "OFF" position when released.
14
To
prevent the switch trigger from being
accidentally pulled,
a
lock-off button is pro-
vided.
To
start the tool, depress the lock-off but-
ton and pull the switch trigger. Release the
switch trigger to stop.
Fig.
18
