[3] DISASSEMBLY/ASSEMBLY
[3]-8. Lock Off Lever, Switch Lever
ASSEMBLING
Compression spring 4
Compression spring 4
Note in Assembling:
Both Compression springs are interchangeable.

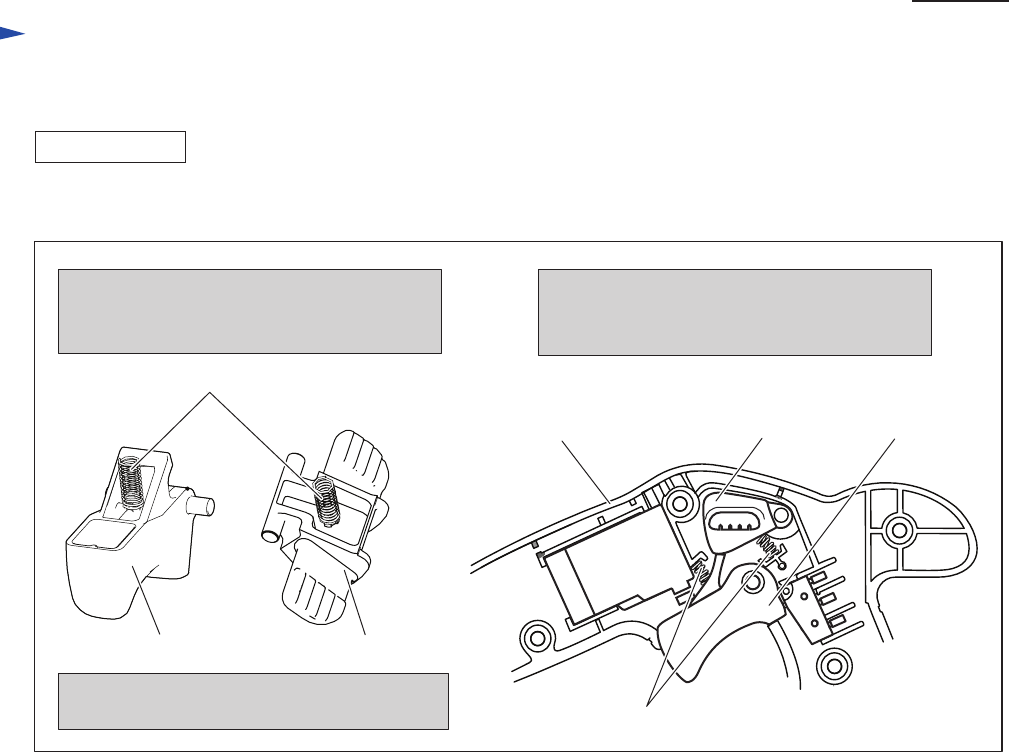

1. Compression spring 4 has to be assembled
deeply and firmly to Switch lever and Lock
off lever as drawn below.
Switch lever
Lock off lever
Lock off lever
Switch lever
2. Set Lock off lever Compression spring 4 and
Switch lever to the Handle at the position
drawn below.
Handle
Assemble Switch lever and Lock off lever to Handle as illustrated in Fig. 16.
Fig. 16
Repair
P 12/ 16
