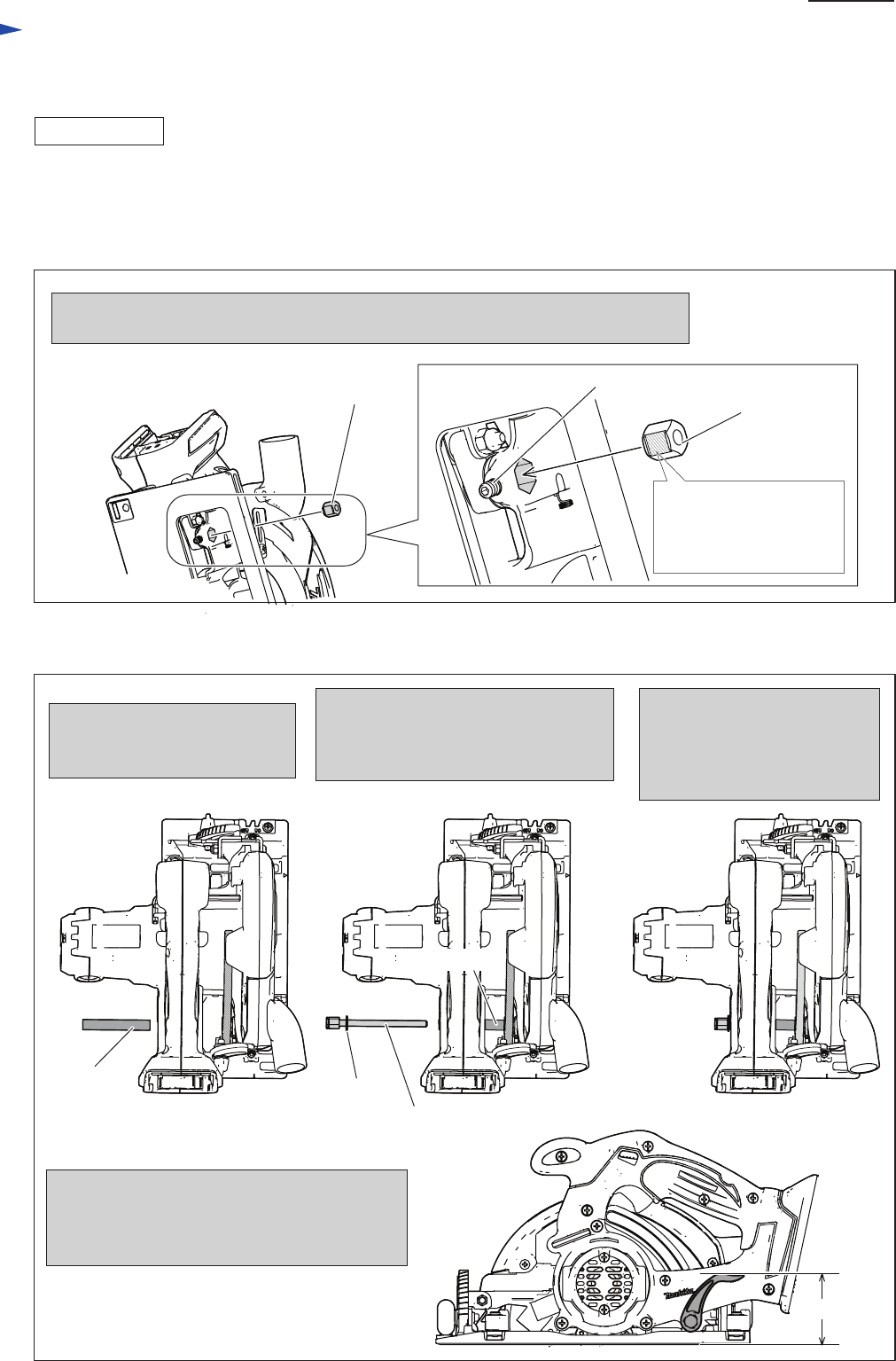

Fig. 6
[3] DISASSEMBLY/ASSEMBLY
[3]-3. Depth Guide
ASSEMBLING
Fig. 7
1. Mount M6 Hex nut, facing its concave side to M5x8 Hex socket head set screw side.
So, the Hex nut can be fixed with M5x8 Hex socket head screw firmly in Blade case.
This concave portion
accepts the end of
M5x8 Hex socket head
set screw.
M5x8 Hex socket head set screw
45 mm
4. The distance between the bottom of Base and
the bend of Lever 55 has to be approx 45 mm,
when the machine is adjusted to obtain max.
cutting depth.
1. Insert Pipe 6 into the hole of
Motor housing complete
at the Handle portion.
2. Passing M6x85 Hex bolt through Flat
washer 6, insert the Hex bolt into the
Pipe 6, and pass through two Collars
and Depth guide.
3. Setting the machine to the
deepest position (max. cut
mode), drive the M6x85 Hex
bolt to the M6 Hex nut,
mentioned in Fig. 6
4. Proceed the assembling as drawn in Fig. 7.
1. Assemble Depth guide to Rear angular guide by tightening with M4x20 Hex socket head bolt and M4-7 Hex lock nut.
Refer to the bottom left illustration in Fig. 5.
2. Set Collar to the both side of the Depth guide. Refer to the bottom right illustration in Fig. 5.
3. Mount M6 Hex nut to Blade case as illustrated in Fig. 6.
M6 Hex nut
M6 Hex nut
Pipe 6
Flat Washer 6
M6x85 Hex bolt
Pipe 6
Repair
P 6/ 16
