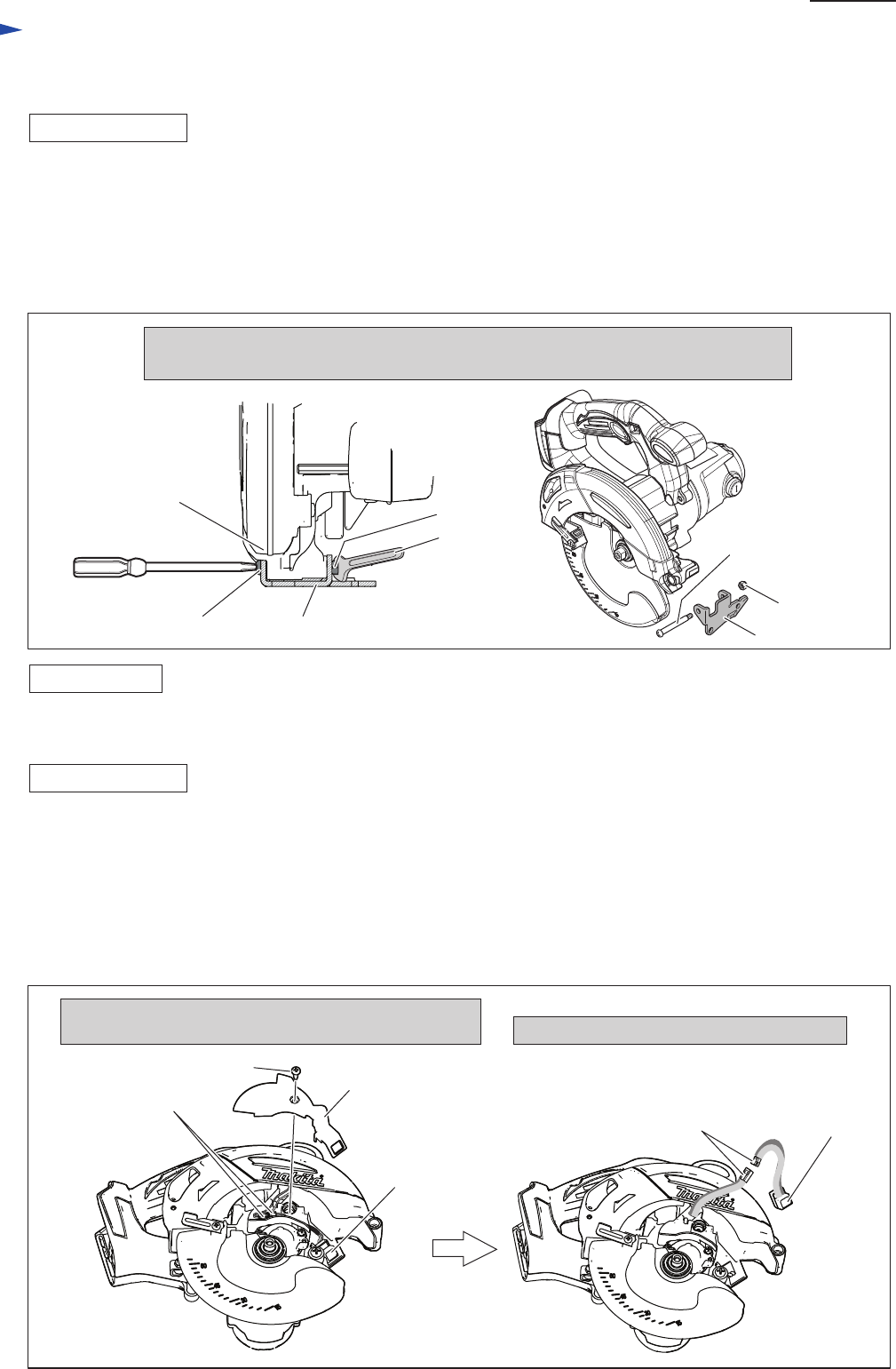

Fig. 8
[3] DISASSEMBLY/ASSEMBLY
[3]-4. Angular Guide
DISASSEMBLING
DISASSEMBLING
ASSEMBLING
1. Remove M5 Pan head screw with Screwdriver, while locking M5-8 Nut with wrench 8.
Now, Angular guide is removed from the machine.
Angular guide is fixed to the machine at the following 3 positions.
1. at the hinge portion fixed with Shoulder pin 6-7 and M6x6 Hex socket head set screw
2. at Angular plate on Base with M6x20 Thumb screw, Flat washer 6 and Spring washer 6
3. at Blade case section with M5 pan head screw and M5-8 Nut.
(1) Make Angular guide free at hinge portion and Angular plate portion as drawn in Fig. 2.
(2) Make the Angular plate free from the Blade case section as drawn in Fig. 8.
Wrench 8
M5-8 Nut
M5-8 Nut
M5 Pan head screw
Angular guide
Disassemble Cover by unscrewing 4x20 Tapping screws.
Now, Connectors and LED come into your sight. Disconnect Connectors. So, LED is replaced.
Blade case section
[3]-5. LED and Motor Section
Assemble Angular guide, referring to Fig. 2.
The machine is joined to Base at the following 2 positions.
1. at the hinge portion of Blade case ( at the front side of Blade case) with Angular guide
2. at the Handle section of Motor housing complete with Depth guide
Angular guide
M5 Pan head screw
(1) Remove Lever 55 and M6x85 Hex bolt as per the top right drawing in Fig. 5.
Now the machine is free from Depth guide.
(2) Make the machine free from Angular guide as illustrated in Fig. 8.
Now the machine is separated from Base completely. And disassemble LED as drawn in Fig. 9.
Fig. 9
Repair
P 7/ 16
Cover
LED
Connector
4x20 Tapping screw
Connector
LED
