[3] DISASSEMBLY/ASSEMBLY
[3] -1. Housing

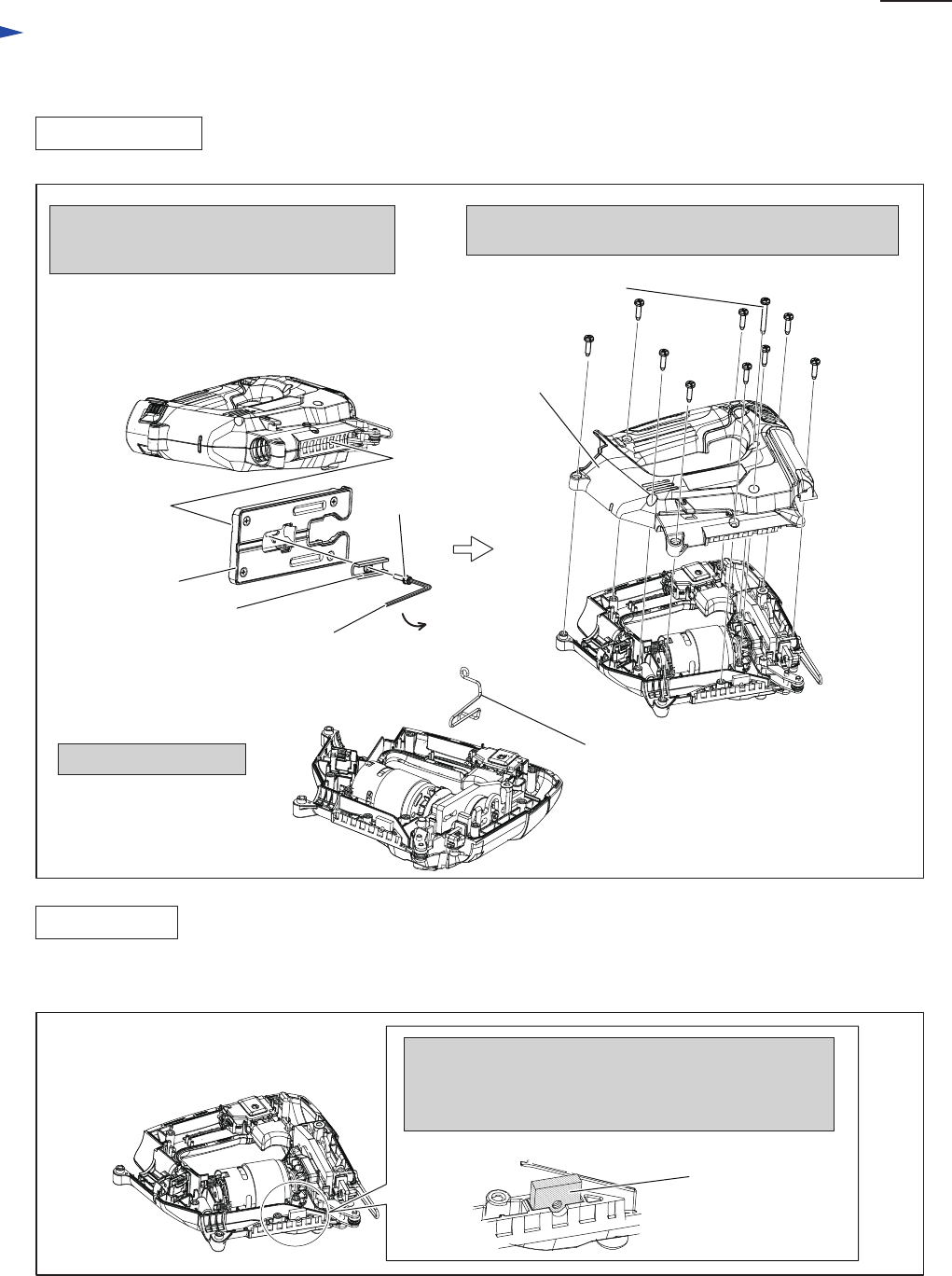

DISASSEMBLING
Fig. 2
Fig. 3
4x35 Tapping screw (1 pc.)
Housing R
Clamp plate
Hex wrench 3
(Standard equipment)
M4x16 Hex socket
head bolt
4x18 Tapping screw (9 pc.)
ASSEMBLING
Base
Note;
Before assembling Housing R, make sure that Holder
(with M4 Screw hole) is mounted to Housing L
to fasten Housing set with M4x16 Hex socket head bolt
1. Remove Clamp plate and Base from
Housing set by unscrewing M4x16
Hex socket head bolt with Hex wrench 3.
2. Separate Housing R by unscrewing M4x35
Tapping screw (1pc.) and 4x18 Tapping screws (9pcs).
3. Remove Safety wire.
Holder
(2) Set Safety wire to Housing L (Fig. 2-3).
(3) Assemble Housing R to Housing L (Fig. 2-2).
(4) Assemble Base and Clamp plate to Housing set and tighten them with M4x16 Hex socket head bolt (Fig. 2-1).
(1) Make sure to insert Holder to Housing L (Fig. 3).
Safety wire
