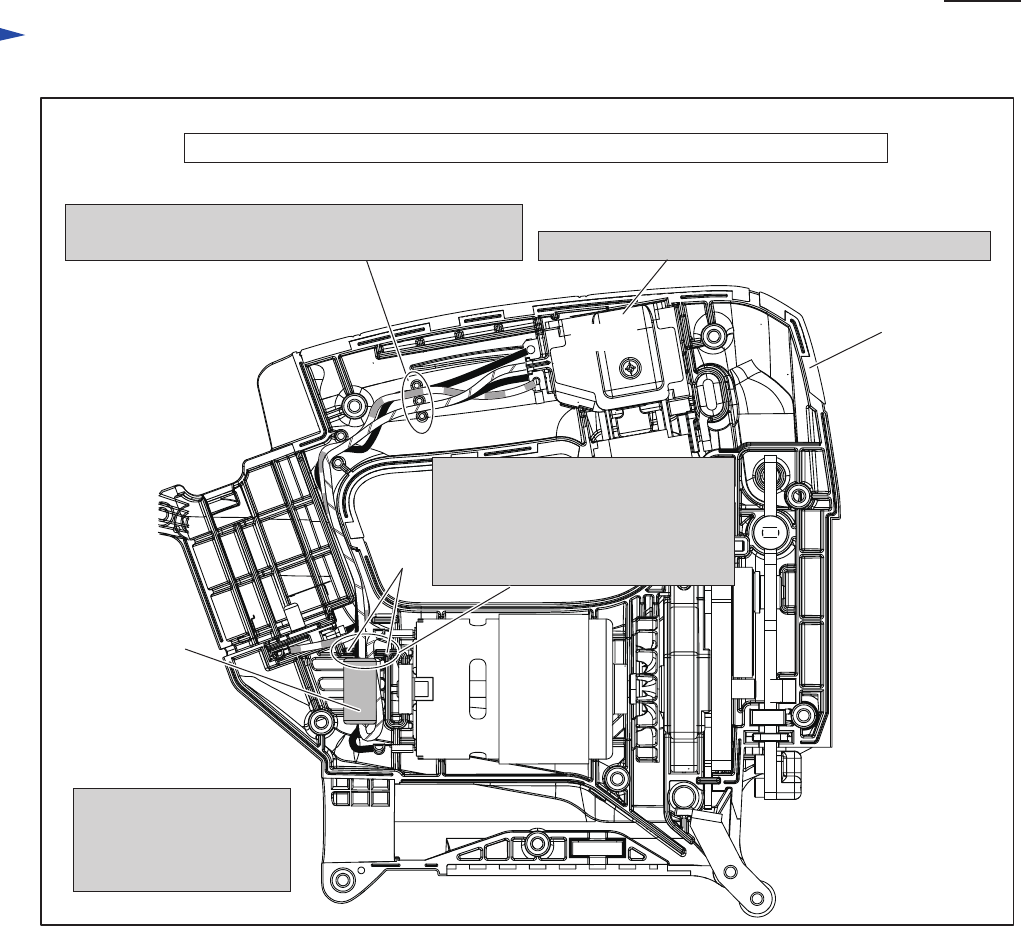

Wiring diagram
Fig. D-3
Store Lead wires in these Lead wire holders so as not to
protrude and interfere with Housing R when assembled.
Do not overlap the Lead wires under Switch (Fig. D-2).
Housing L
Switch
Line filter
Rib
Route all Lead wires to Switch from
DC motor in this slot of Rib when
Line filter is used. Note; Route
a black lead wire in this slot of Rib
when Line filter is not used.
Locate the Red dot mark
to Handle side when
installing DC motor into
Housing L (Fig. D-2).
For the countries where the regulations for radio interference suppression are required.
