V. MAINTENANCE
WARNING
To avoid severe personal injury, always
remove the battery pack from the metal cutter
before starting any maintenance procedure.
CAUTION:
To assure product SAFETY and RELIABILITY,
servicing should be performed by an authorized
service center. Always insist on genuine Panasonic
replacement parts.
Removing Blade
CAUTION:
The blade will be hot right after cutting. Be sure to
let the blade cool down before removing it.
Follow these steps:
1.Remove the battery pack from the metal cutter.
2.Hold the spindle lock button down. This prevents
the blade from rotating.
3.Use the provided hex wrench to loosen the hex
bolt.
NOTE:
Keep the hex wrench in the storage slot on the
metal cutter’s body when not using it.
4.Remove the hex bolt and outer washer.
5.Use the lower guard lift lever to retract (open) the
lower guard.
6.Carefully remove the blade.
7.Clean the metal cutter if necessary.
CAUTION:
Be careful to avoid cutting your hands on the
blade.
• When disposing of a blade, secure it inside
heavy or corrugated paper. This will help prevent
anyone from being cut by the discarded blade.

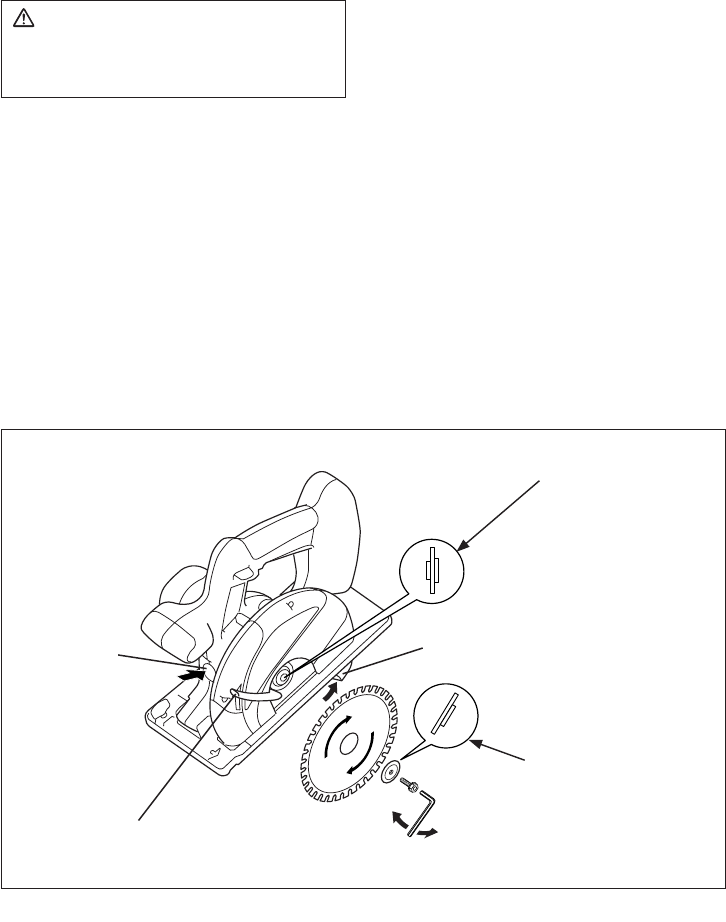

Fig.12
Hex bolt
Loosen
Tighten
Outer washer
Lower guard
Lower guard lift lever
Inner washer
Spindle lock
button
Place the inner washer
with cut-out facing you.
Place the protrusion of
the outer washer into the
position of the washer.
