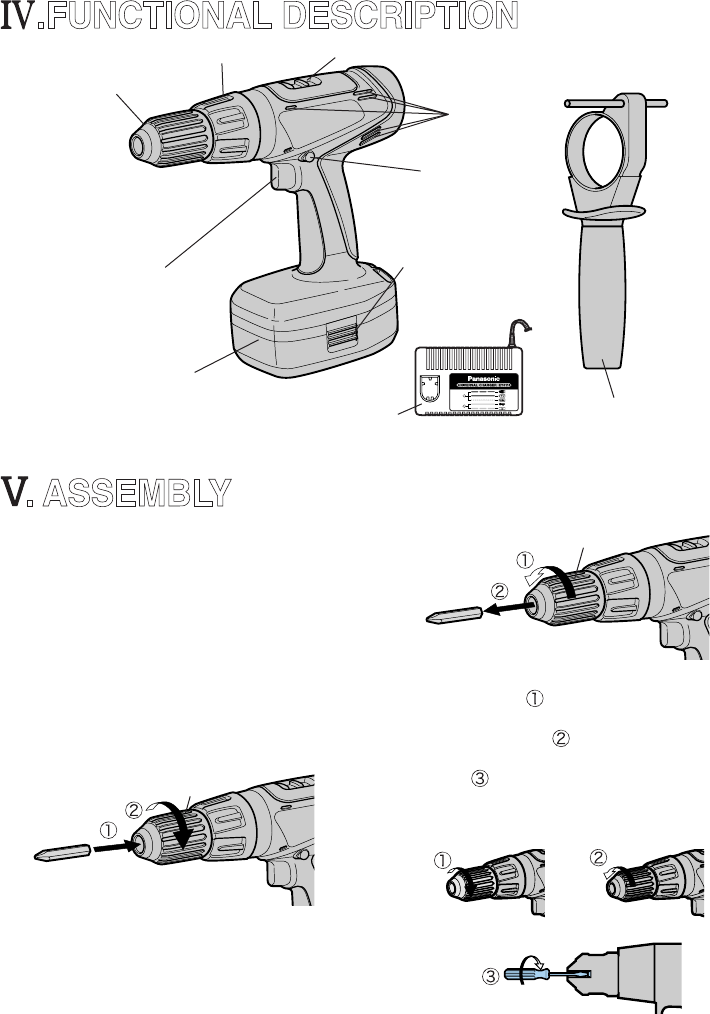

.FUNCTIONAL DESCRIPTION
Clutch handle
Keyless
drill chuck
Variable speed
control trigger
18V Battery pack
(EY9251)
Speed selector switch
Vent
holes
Forward/
Reverse
lever
Battery pack
release button
Battery charger (EY0110)
Support handle
. ASSEMBLY
Attaching or removing bit
Note: When attaching or removing
a bit, disconnect battery pack
from tool or place the switch in
the center position (switch lock).
This tool is equipped with a keyless
drill chuck.
1. Attachment
Insert the bit and turn the Lock collar
clockwise (looking from the front) to
tighten firmly until it stops clicking.
Lock collar
2. Removal
Slide the Lock collar to FREE side.
Turn the Lock collar counterclockwise
(looking from the front), then remove
the bit.
Lock collar
Note: If excessive play occurs in the
chuck, secure the drill in place
and tighten the chuck by turning
clockwise, open the chuck jaws
by unscrewing the Lock collar and
tighten the screw (left-handed
screw) with a screwdriver by turn-
ing it counterclockwise (viewed
from the front).
