Figure 16. Making a splined dovetail joint with a
router bit.
D. Angled Work
You can position your workpiece anywhere from 90°
vertical to 45° left or right from vertical on the face
plate. Figure 16. This is particularly useful when angle
slotting or cutting angled tenons. Always use a mini
-
mum of two clamps to secure angled work.
Figure 17. Using a bevel gauge for setting up
angled work.
Figure 18. Cutting a lap miter joint with a shaper.
C. Vertical Work
You can locate your workpiece in many positions
on the face plate depending upon your requirements.
When holding the stock vertically on the face plate,
use the 90° angle bracket to support the work on the
exit side. If you change cutter rotation, the 90° angle
bracket must be moved to the opposite side of the face
plate in order to support the work on the exit side.
We also recommend placing a backing block between
the angle bracket and the workpiece to back up the
workpiece and reduce the risk of tear out. Always use
a minimum of two clamps for vertical work.

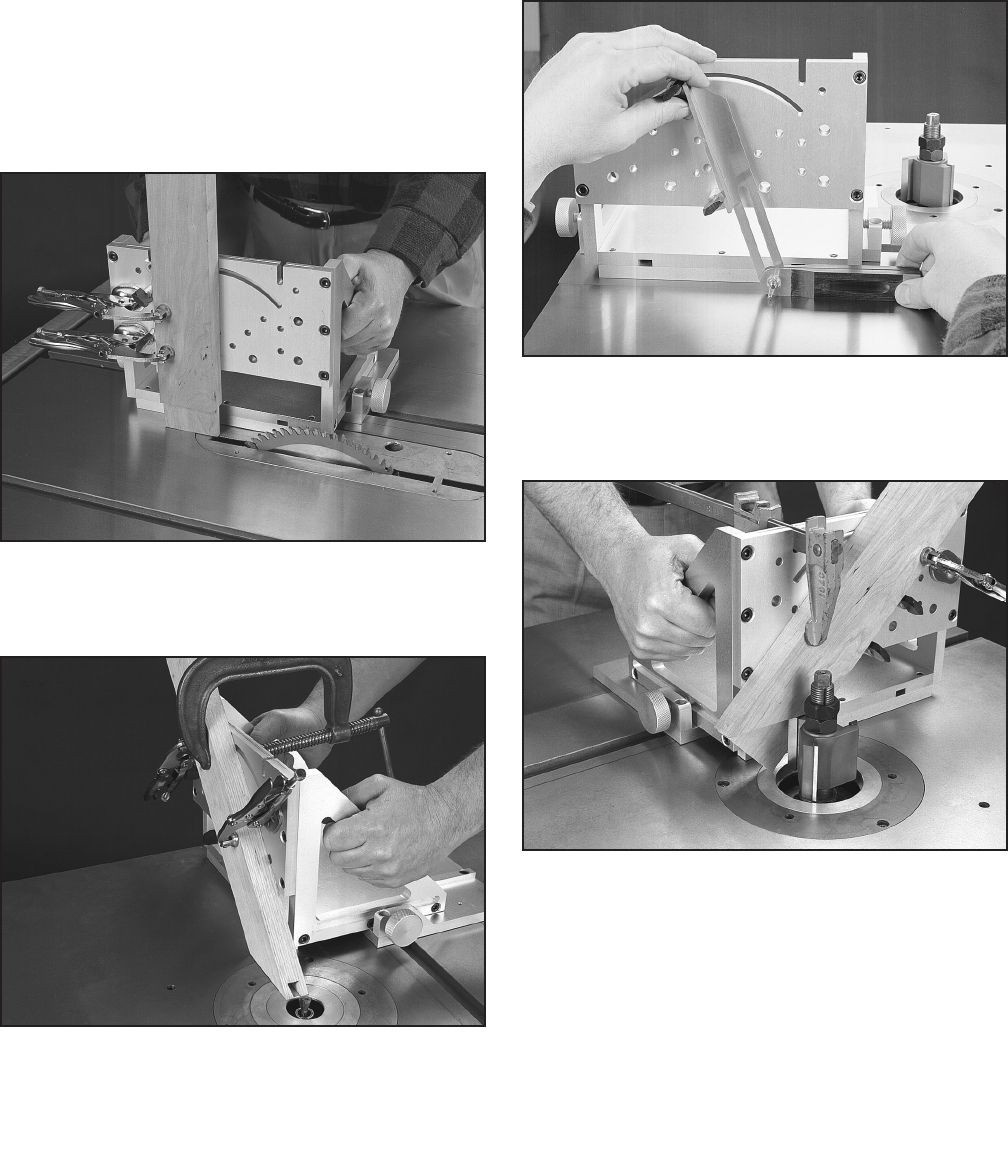

Figure 15. An example of vertical work: using the
Shop Fox
®
for making tenons on the table saw.
